Hardware Options Installation

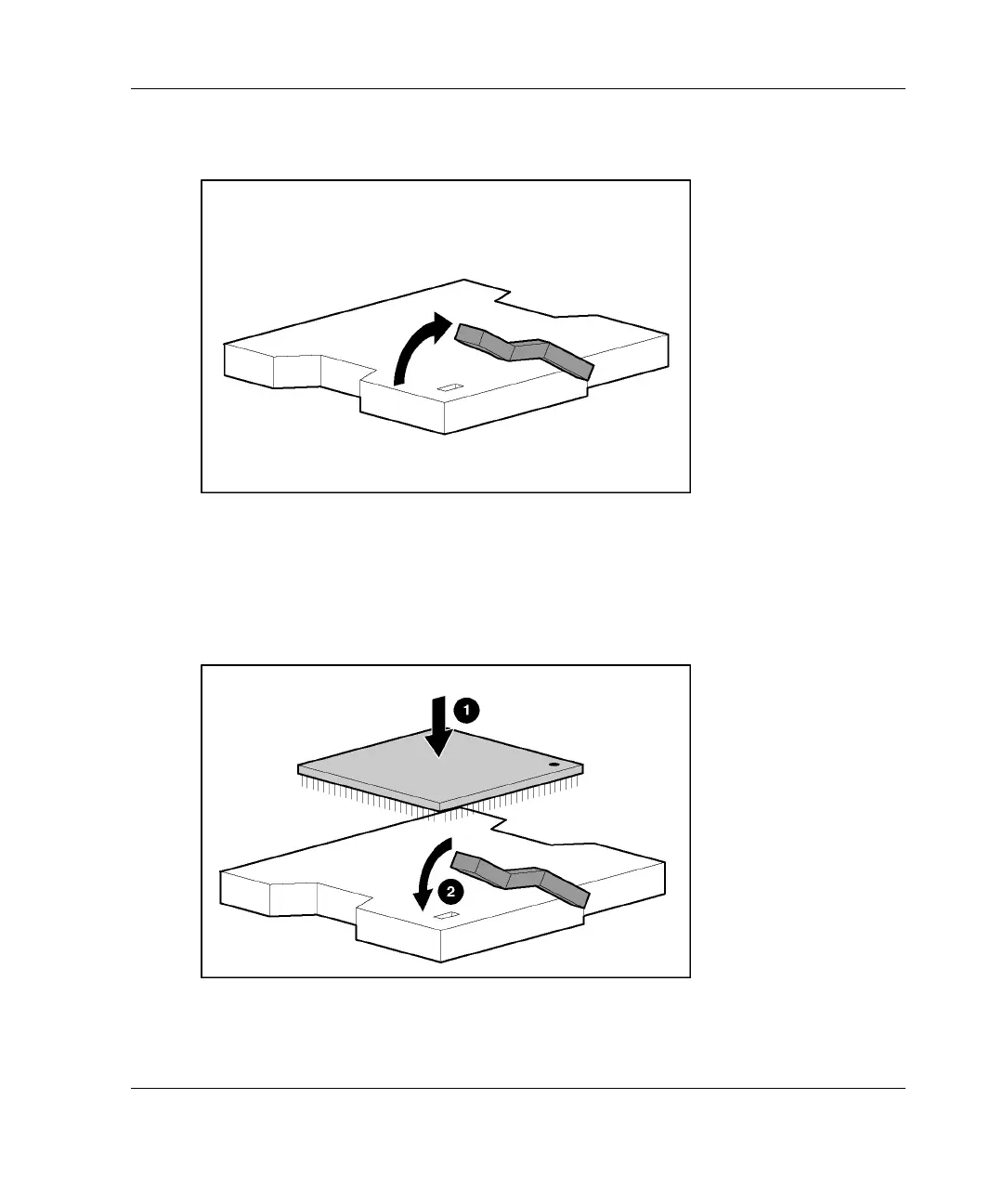

5. Raise the processor socket lever.
6. Install the processor:
a. Place the processor into the socket.
b. Lower the processor socket lever. The guide posts and directional key marks
on the socket must be aligned with the corresponding slots and marks on the
processor.
HP ProLiant ML330 Generation 3 Server Setup and Installation Guide 4-3
