Drive cage
1. Prepare the computer for disassembly (Preparation for disassembly on page 14).
2. Remove the access panel (Access panel on page 15).
3. Remove the hard drive (Hard drive on page 19).

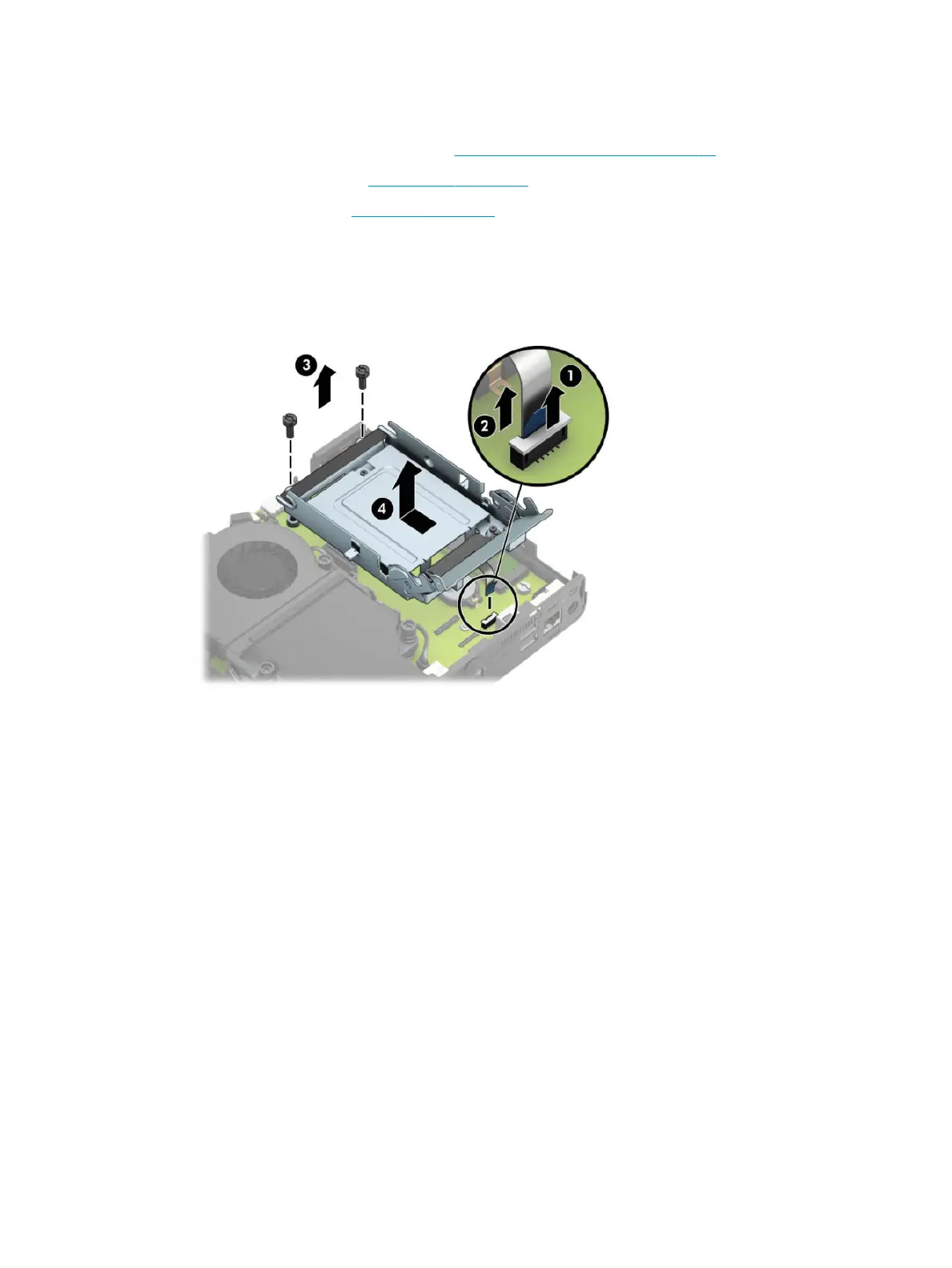

4. Lift the connector latch on the system board (1), and then disconnect the hard drive cable using the pull
tab on the cable (2).
5. Remove the two Torx T15 screws (3) that secure the hard drive cage to the chassis.
6. Slide the hard drive cage back, and then lift it out of the chassis (4).
To install the drive cage, reverse the removal procedure.
