Fan
1. Prepare the computer for disassembly (Preparation for disassembly on page 14).
2. Remove the access panel (Access panel on page 15).

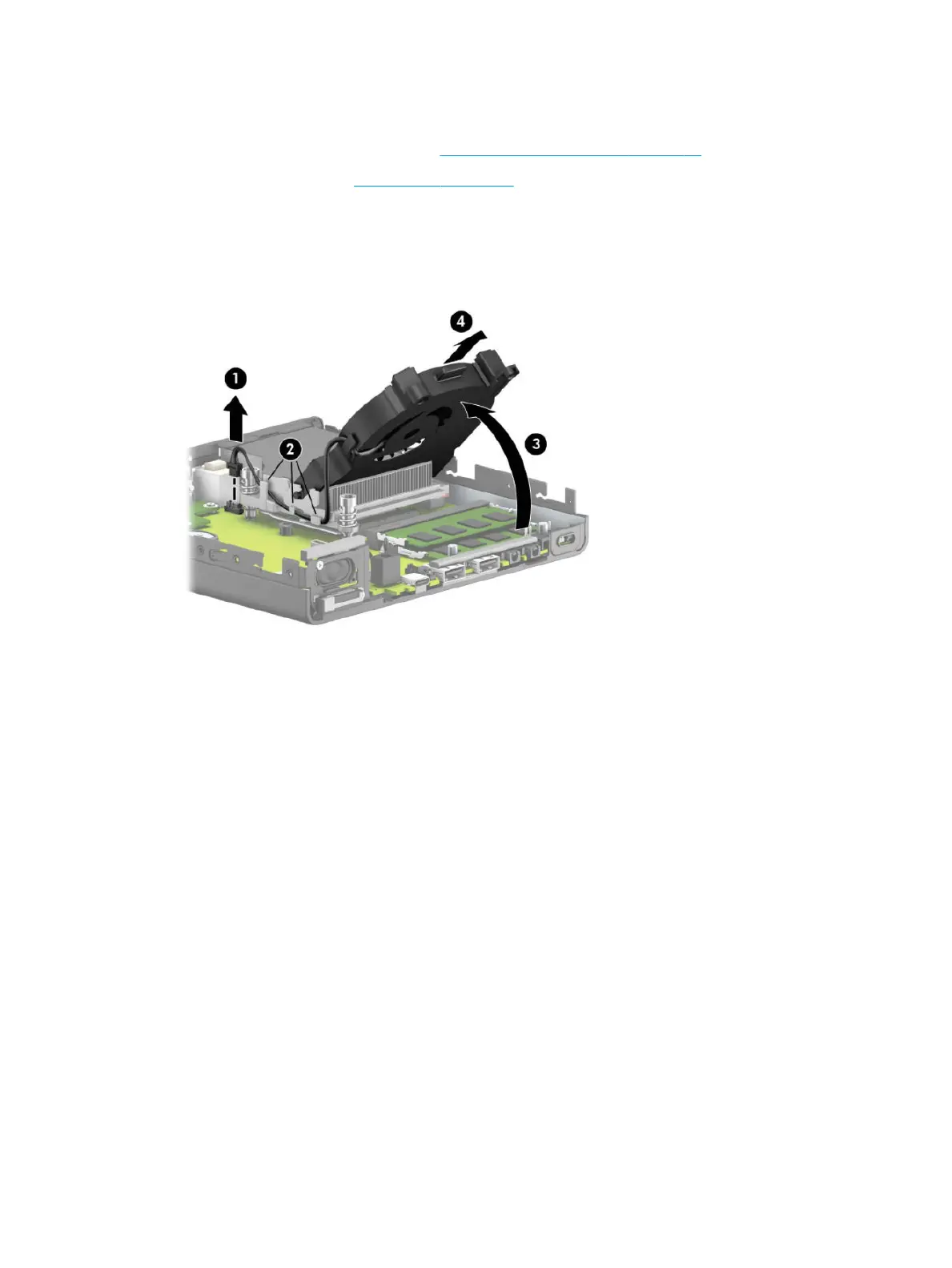

3. Disconnect the fan cable from the system board (1).
4. Remove the fan cable from the clips on the side of the heat sink (2).
5. Lift fan up to about 30-45 degrees (3), and then pull it away from the heat sink (4).
To install the fan, reverse the removal procedure.
30 Chapter 4 Removal and replacement procedures
