HP MSA 2050 User Manual

10 Components
2 Components
Front panel components
HPE MSA 2050 models support small form factor (SFF) and large form factor (LFF) enclosures. The SFF chassis,
configured with 24 2.5" SFF disks, and the LFF chassis, configured with 12 3.5" LFF disks, are used as either controller
enclosures or drive enclosures.
Supported drive enclosures, used for adding storage, are available in LFF or SFF chassis. The MSA 2050 LFF Disk
Enclosure is the large form factor drive enclosure and the MSA 2050 SFF Disk Enclosure is the small form factor drive
enclosure used for storage expansion.
HPE MSA 2050 models use either an enclosure bezel or traditional ear covers. The 2U bezel assembly is comprised of left
and right ear covers connected to the bezel body subassembly. A sample bezel is shown below.

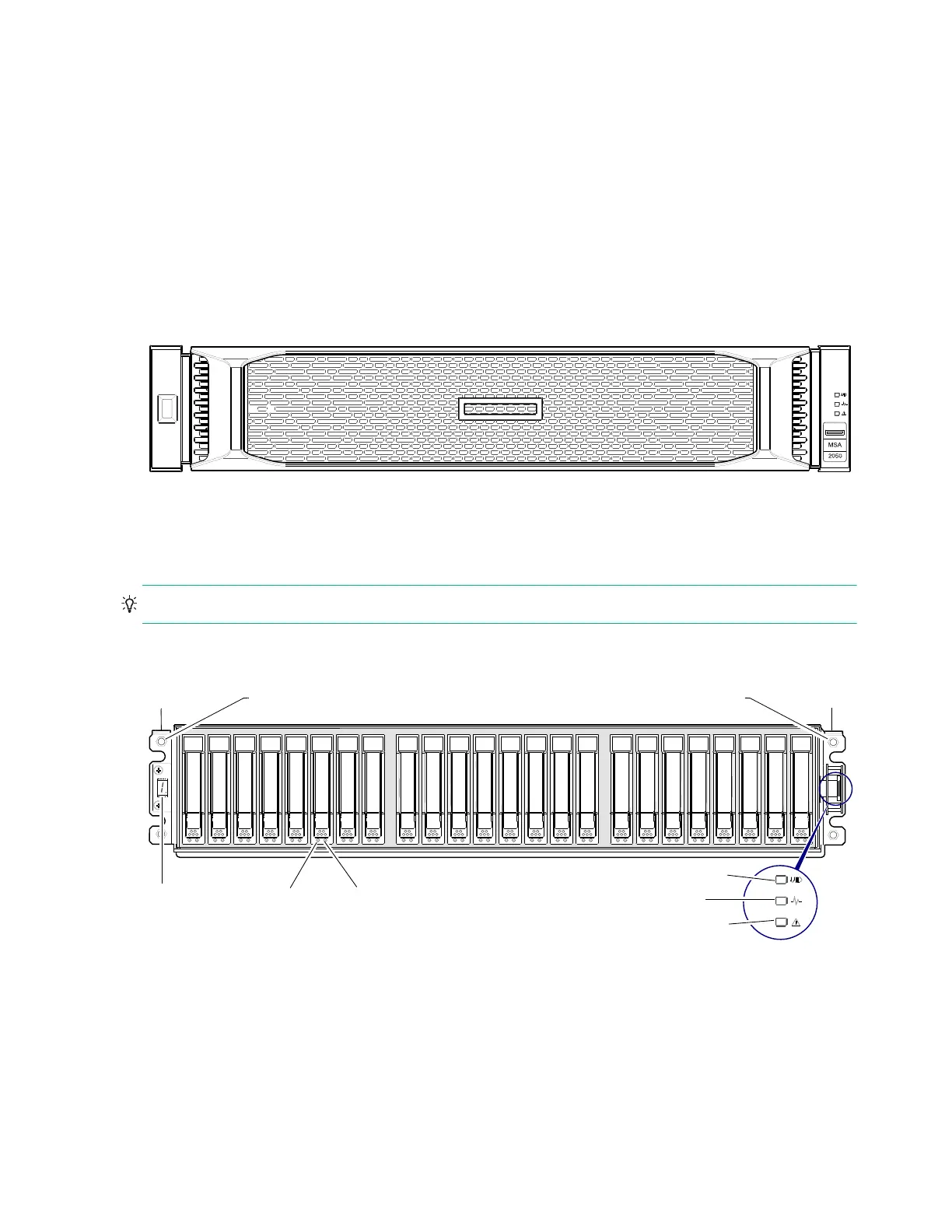

Figure 1 Bezel used with MSA 2050 enclosures: front panel
The front panel illustrations that follow show the enclosures with the bezel removed, revealing ear flanges and disk drive
modules. Two sleeves protruding from the backside of each ear cover component of the bezel assembly push-fit onto the
two ball studs shown on each ear flange to secure the bezel. Remove the bezel to access the front panel components.
TIP: See “Enclosure bezel” (page 62) for bezel attachment and removal instructions, and pictorial views.
MSA 2050 Array SFF or supported 24-drive expansion enclosure
Figure 2 MSA 2050 Array SFF or supported 24-drive expansion enclosure: front panel
1 Enclosure ID LED
2 Disk drive Online/Activity LED
3 Disk drive Fault/UID LED
4 Unit Identification (UID) LED
5 Heartbeat LED
6 Fault ID LED
1
3
2
4
5
6
1 2 3 4 5 6 7 8 9 10111213141516 1718192021222324
Notes:
Left ear
Right ear
Integers on disks indicate drive slot numbering sequence.
The enlarged detail view at right shows LED icons from the bezel that correspond to the chassis LEDs.
Ball stud (two per ear flange)
Bezel icons for LEDs
Ball stud (two per ear flange)
The detail view locator circle (above right) identifies the ear kit that connects to LED light pipes in the bezel (or ear cover).

HP MSA 2050 Specifications

General

Model	HP MSA 2050
Category	Storage
Controller Type	Dual Controller
Form Factor	2U
Maximum Drives Supported	192
Cache Memory	8 GB per controller
Number of Controllers	2
Protocols	Fibre Channel, iSCSI, SAS
Drive Support	2.5-inch SFF and 3.5-inch LFF drives
Host Interfaces	16 Gb Fibre Channel, 10GbE iSCSI, 12 Gb SAS
RAID Levels Supported	RAID 0, 1, 5, 6, 10
Expansion Options	Supports expansion with MSA 2050 LFF and SFF Disk Enclosures
Power Supplies	Dual, redundant power supplies
Operating Temperature	10°C to 35°C (50°F to 95°F)
Warranty	3 years
Maximum Raw Capacity	192 TB
