62 LED descriptions
A LED descriptions
Front panel LEDs
HPE MSA 2050 models support small form factor (SFF) and large form factor (LFF) enclosures. The SFF chassis,
configured with 24 2.5" SFF disks, is used as a controller enclosure or drive enclosure. The LFF chassis, configured with 12
3.5" LFF disks, is used as either a controller enclosure or drive enclosure.
Enclosure bezel
The MSA 2050 enclosures are equipped with a removable bezel designed to cover the front panel during enclosure
operation. The bezel assembly consists of a main body subassembly and two ear flange subassemblies, which attach the
bezel to the left and right ear flanges of the 2U enclosure. See Figure 1 (page 10) for front view display of the bezel.
Enclosure bezel attachment

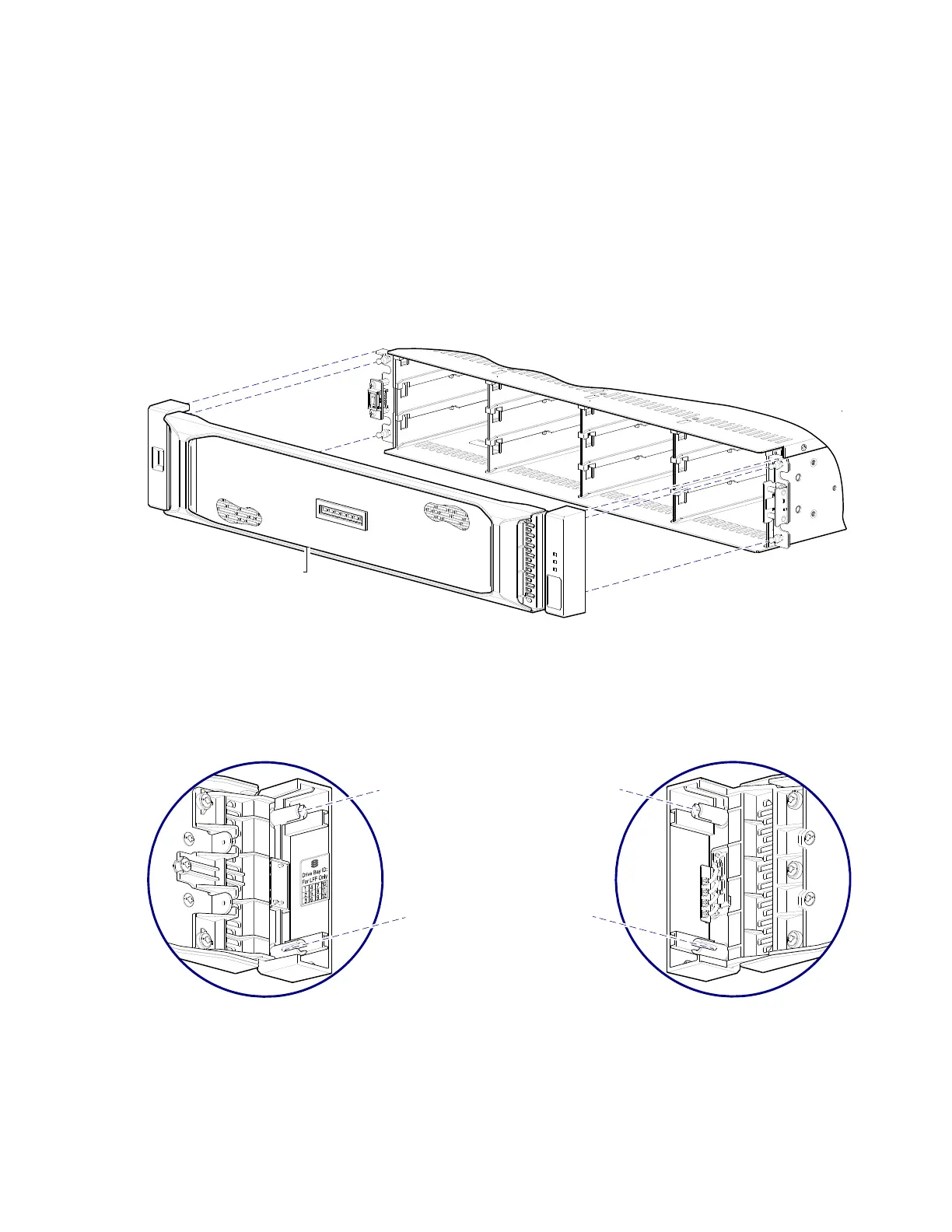

Figure 25 Partial exploded view showing bezel alignment with 2U chassis
Orient the enclosure bezel to align its back side with the front face of the enclosure as shown in Figure 25. Face the front
of the enclosure, and while supporting the base of the bezel—while grasping the left and right ear covers—position the
bezel such that the mounting sleeves within the integrated ear covers align with the ball studs on the ear flanges (see
Figure 26). Gently push-fit the bezel onto the ball studs to securely attach it to the front of the enclosure.
Figure 26 Detail views of enclosure ear cover mounting sleeves
2U12 chassis shown
Bezel vents are simplified
Left ear cover
backside view
To ball stud To ball stud
To ball stud To ball stud
Right ear cover
backside view
