5–56 Maintenance and Service Guide
Removal and Replacement Procedures
3. Remove the following:
1 Two rubber screw covers
2 Nine Torx8 T8M2.5×11.0 screws that secure the top cover
to the base enclosure
3 One Phillips PM2.5×5.0 screw that secures the top cover
to the base enclosure

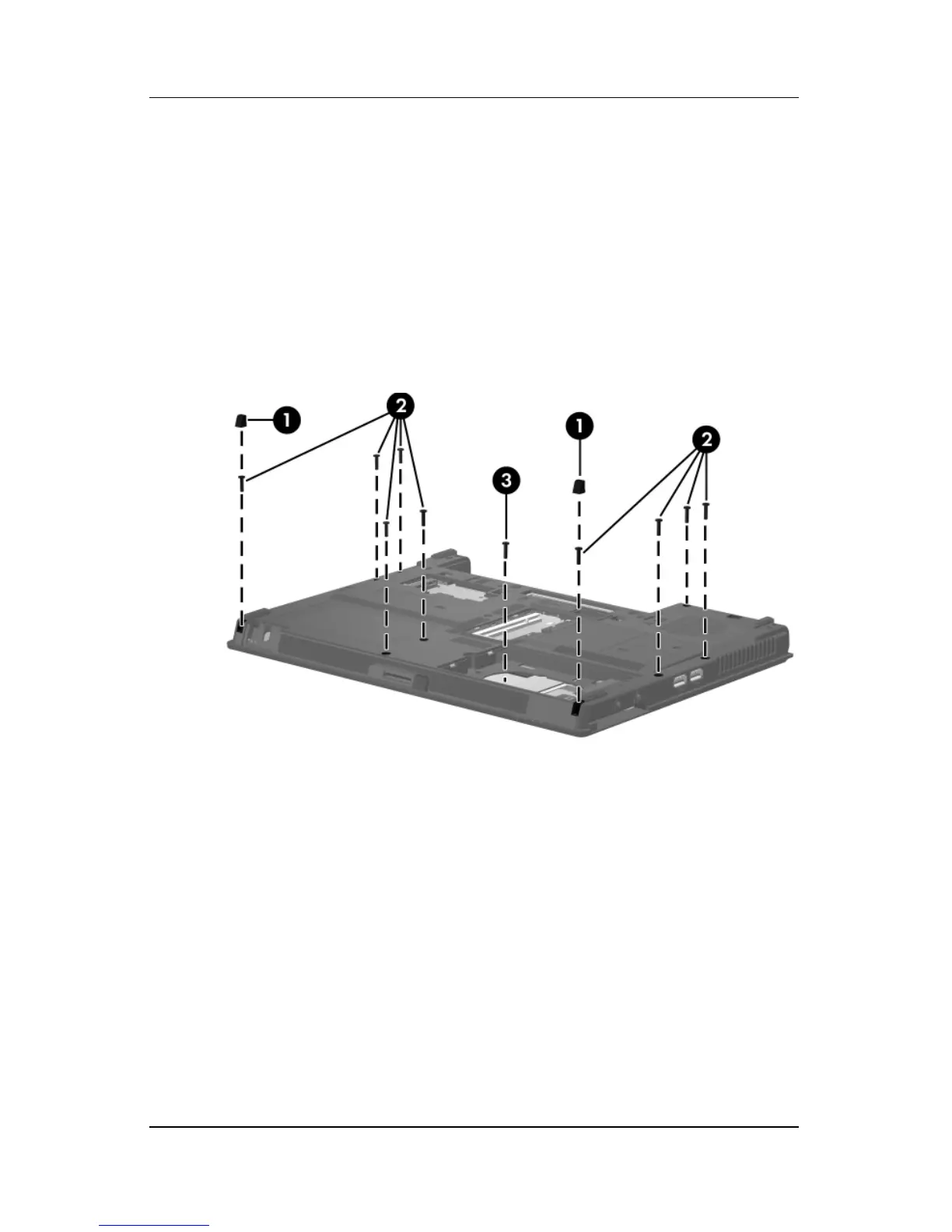

Removing the Top Cover Screws, Part 1
