HP OmniBook 6000 Removal and Replacement 2-17
Removing the Heatsink (with Fan)
(HP Authorized Service Providers Only)
Required Equipment
• Small Phillips screwdriver.
Removal Procedure
1. Unplug the ac adapter, if present, and remove the battery. Remove the secondary battery if one is
installed.
2. Remove these additional assemblies:
• Power button panel (page 2-11).
• Keyboard (page 2-15).
3. Disconnect the fan cable through the opening in the heatsink.
4. Remove the five retaining screws.
5. Lift the heatsink out of the unit.

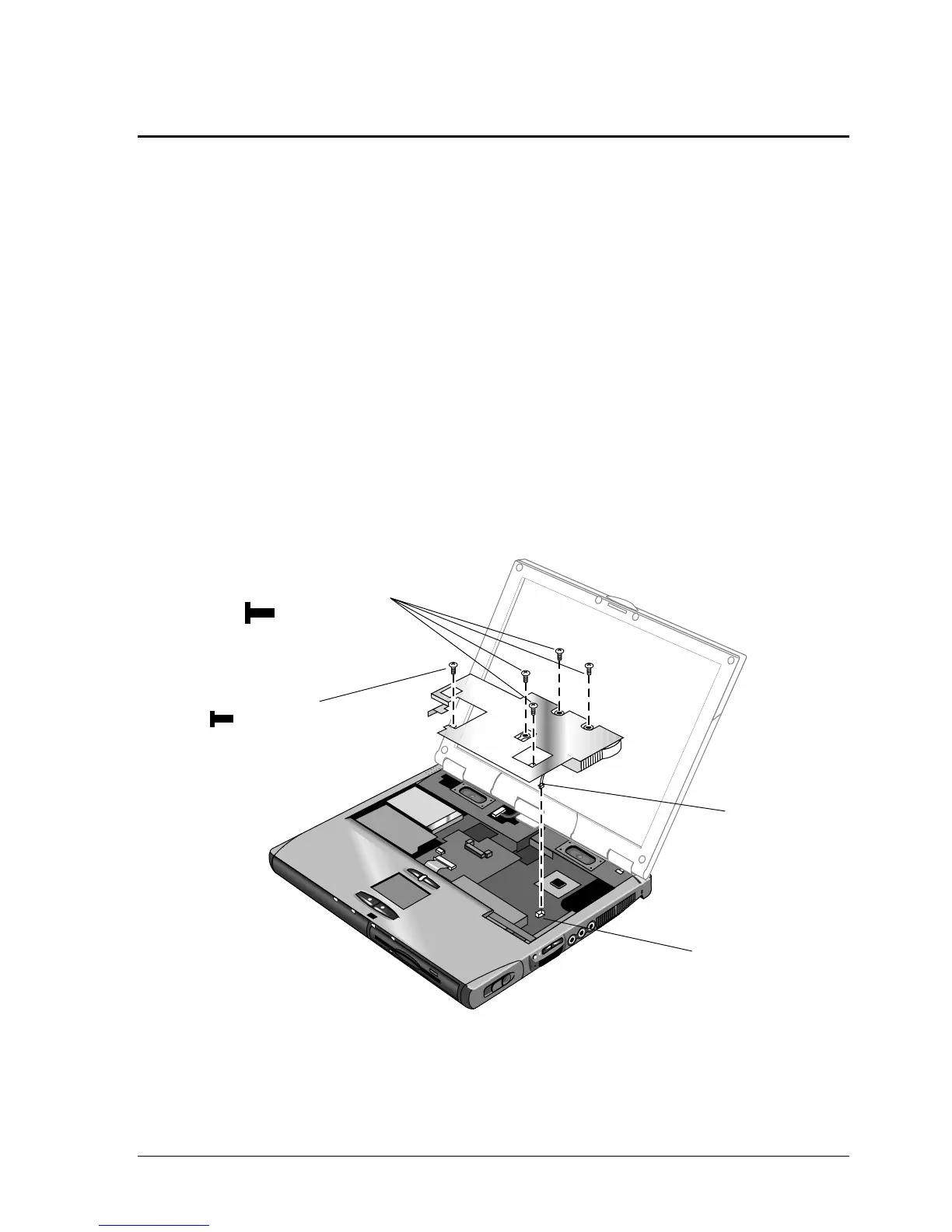

Figure 2-13. Removing the Heatsink
Screws, M2.5×6mm (4)
Fan cable
Fan cable socket
Screw, M2×4mm
To Next Page
