HP OmniBook 900 Removal and Replacement 2-11
7. For a 12-inch display, remove the LCD module.
a. Remove the four screws holding the LCD module.
b. Lift up the right edge of the LCD module about 90°.
c. Using a small flat-blade screwdriver, insert the tip under the narrow end of the flex cable
connector—not the wide end—and twist the screwdriver to release the connector from the
LCD module.
8. For a 13-inch display, remove the LCD module.
a. Close, but don’t latch the display; then lift off the display case.
b. Loosen and then pull the flex cable out of the connector.
c. Remove four screws, two each, on the right and left edges of the LCD module.

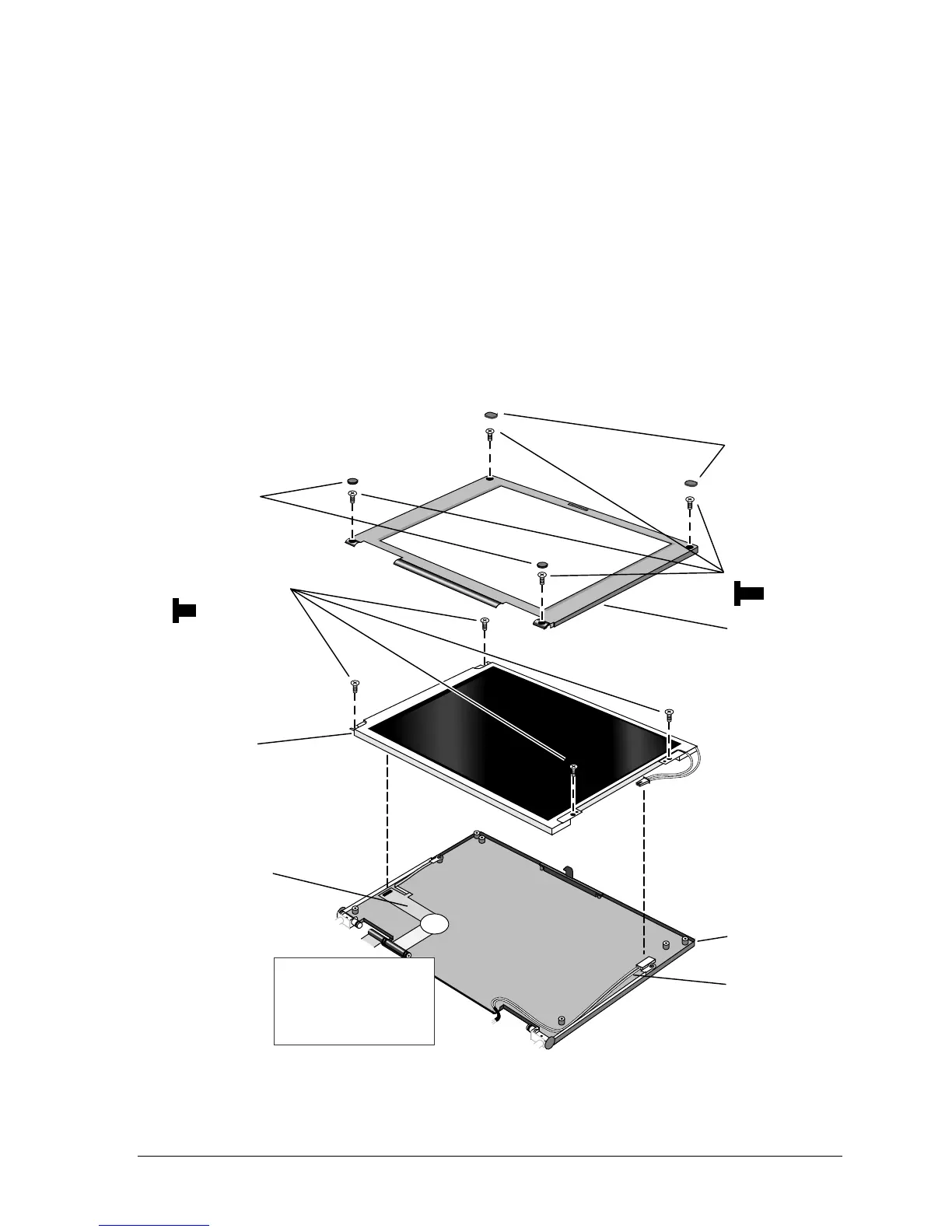

Figure 2-6. Removing the LCD Module
Bumper (oval)
Screw cover
Screw, M2.5×5mm
Screw, M3×4mm
LCD flex cable
LCD module
Display case
Power cable
Bezel
Note: 12-inch display
shown. For a 13-inch
display, the flex cable
and mountings differ.
To Next Page
