HP OmniBook 900 Removal and Replacement 2-19

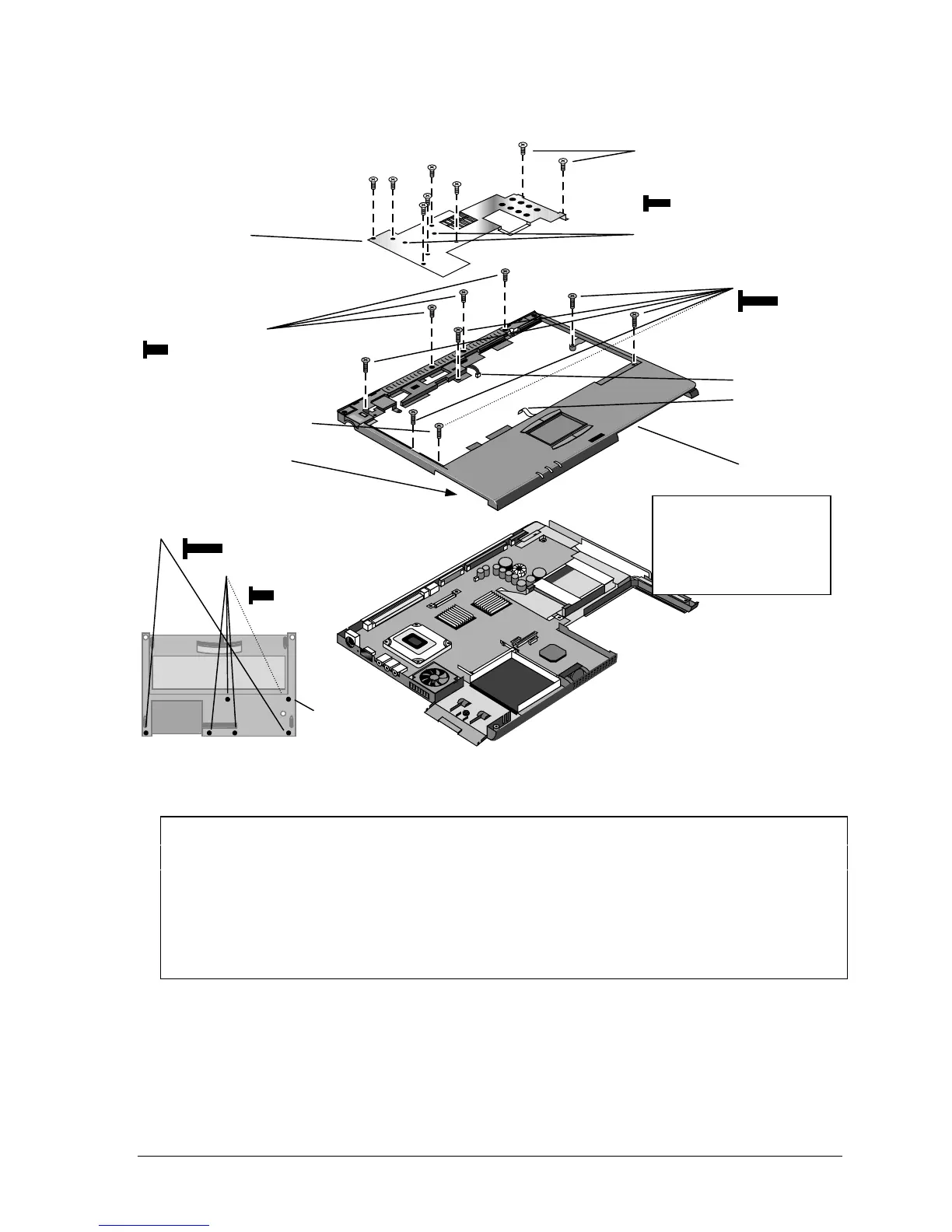

Figure 2-10. Removing the Top Case

Reassembly Notes

Note: Installing a New Top Case

• Transfer the following items from the old top case to the new one:

Touch pad and support.

Left hinge support.

• Press down on the touch pad support plate while sliding it into place. Make sure the support is

held down at its left and right edges. Check the action of the click buttons before installing the

top case.

• Engage the tab at the front of the top case, then lower the top case onto the bottom case.

• It may be easier to plug in the touch pad flex cable while you are lowering the top case onto the

bottom case—rather than waiting until after the top case is fully installed.

Top case

Microphone cable

Touch pad cable

Heatsink

Screw, M2.5×8mm

Screw, M2.5×5mm

13-inch

display only

Screw, M2.5×8mm

Screw, M2.5×5mm

Screw, M2×5mm

8-OmniBook 900

†,

6-OmniBook 900B

Note: Do not put screws

in these two holes.

12 inch

display only

Note: OmniBook 900†

heatsink shown. For the

OmniBook 900B, the

heatsink and mounting

differ.

Note: On recent units,

a HDD bracket is

installed in this area.

HP OmniBook 900 Service Manual
