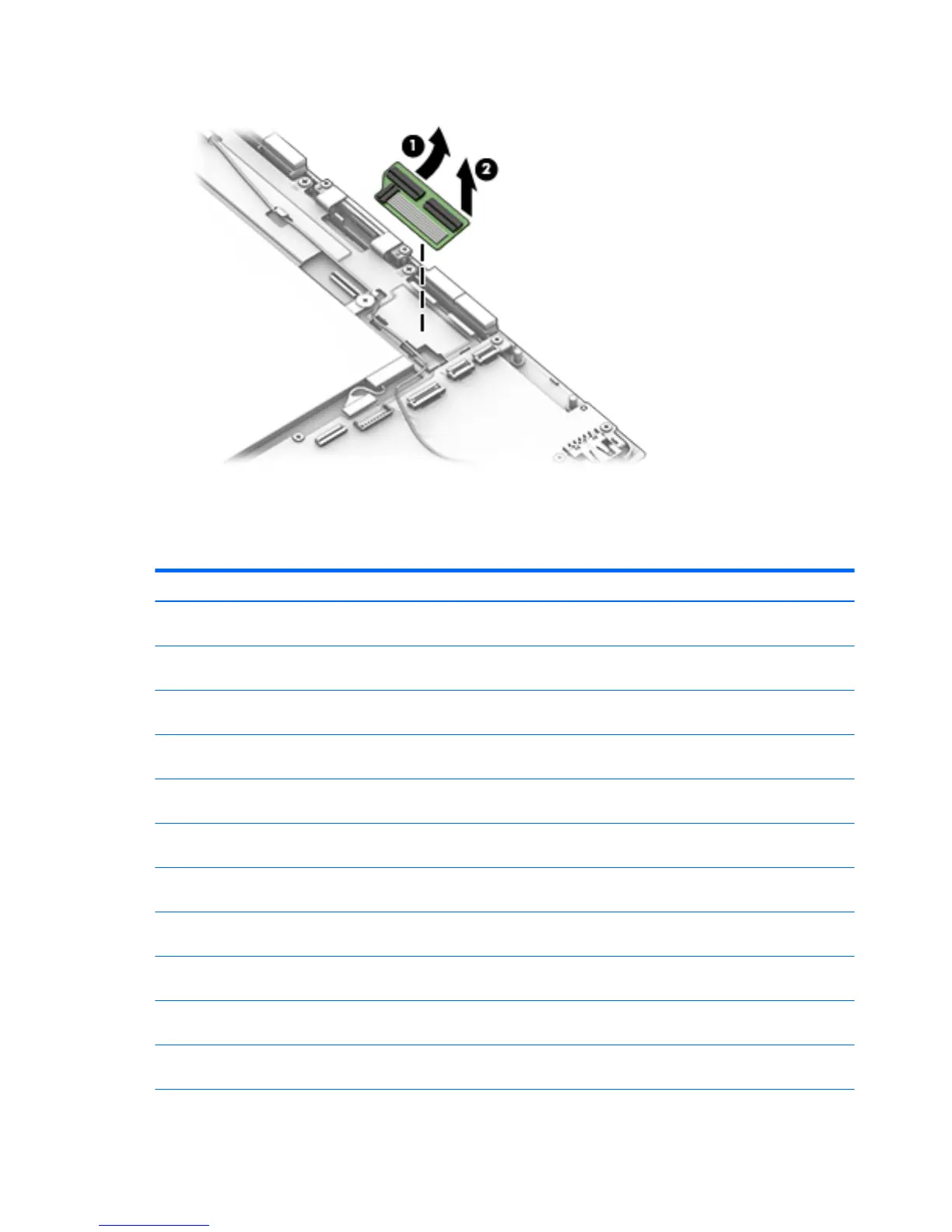

4. Loosen the touch board (1), and then lift the board remove it (2).
Reverse this procedure to install the touch board.
System board
Description Spare part number
System board equipped with an Intel Z8300 1.44-GHz quad core processor (SoC), a graphics subsystem with UMA memory, and up to 2
GB or 4 GB (select products only) of DDR3L 1600 system memory (includes replacement thermal material)
Equipped with an Intel Z8300 processor, a 32-GB eMMC hard drive (SoC), and a Windows 10 operating
system
832393-601
Equipped with an Intel Z8300 processor, a 32-GB eMMC hard drive (SoC), and a non-Windows operating
system
832393-001
Equipped with an Intel Z8300 processor, 2 GB of system memory, a 64-GB eMMC hard drive (SoC), and a
Windows 10 operating system
832394-601
Equipped with an Intel Z8300 processor, 2 GB of system memory, a 64-GB eMMC hard drive (SoC), and a
non-Windows operating system
832394-001
Equipped with 2 GB of system memory, a 32-GB eMMC hard drive (SoC), and a Windows 10 operating
system
834737-601
Equipped with 4 GB of system memory, a 64-GB eMMC hard drive (SoC), and a Windows 10 operating
system
834738-601
Equipped with 2 GB of system memory, a 64-GB eMMC hard drive (SoC), and a Windows 10 operating
system
839058-601
Equipped with 4GB of system memory, a 32-GB eMMC hard drive (SoC), and a Windows 10 operating
system
839059-601
Equipped with 4 GB of system memory, a 64-GB eMMC hard drive (SoC), and a Windows 10 operating
system
855822-601
Equipped with 4 GB of system memory, a 64-GB eMMC hard drive (SoC), and a non-Windows operating
system
855822-001
34 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
