Wireless antenna
Description Spare part number
Wireless antenna
Intel 3165NGWG ac, 1x1 Bluetooth 4.0 LE PCIe+USB NGFF 2230 WW (Stone Peak 1) 832760-001
AzureWave AW-NB177NF Realtek RTL8723BS 802.11 (1x1 b/g/n, Single Band, Bluetooth 4.0) with single
antenna (SDIO+UART)
814724-001
WLAN module 806723-005
Before removing the wireless antenna, follow these steps:
1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 26).
5. Remove the battery (see Battery on page 28).
Remove the wireless antenna:

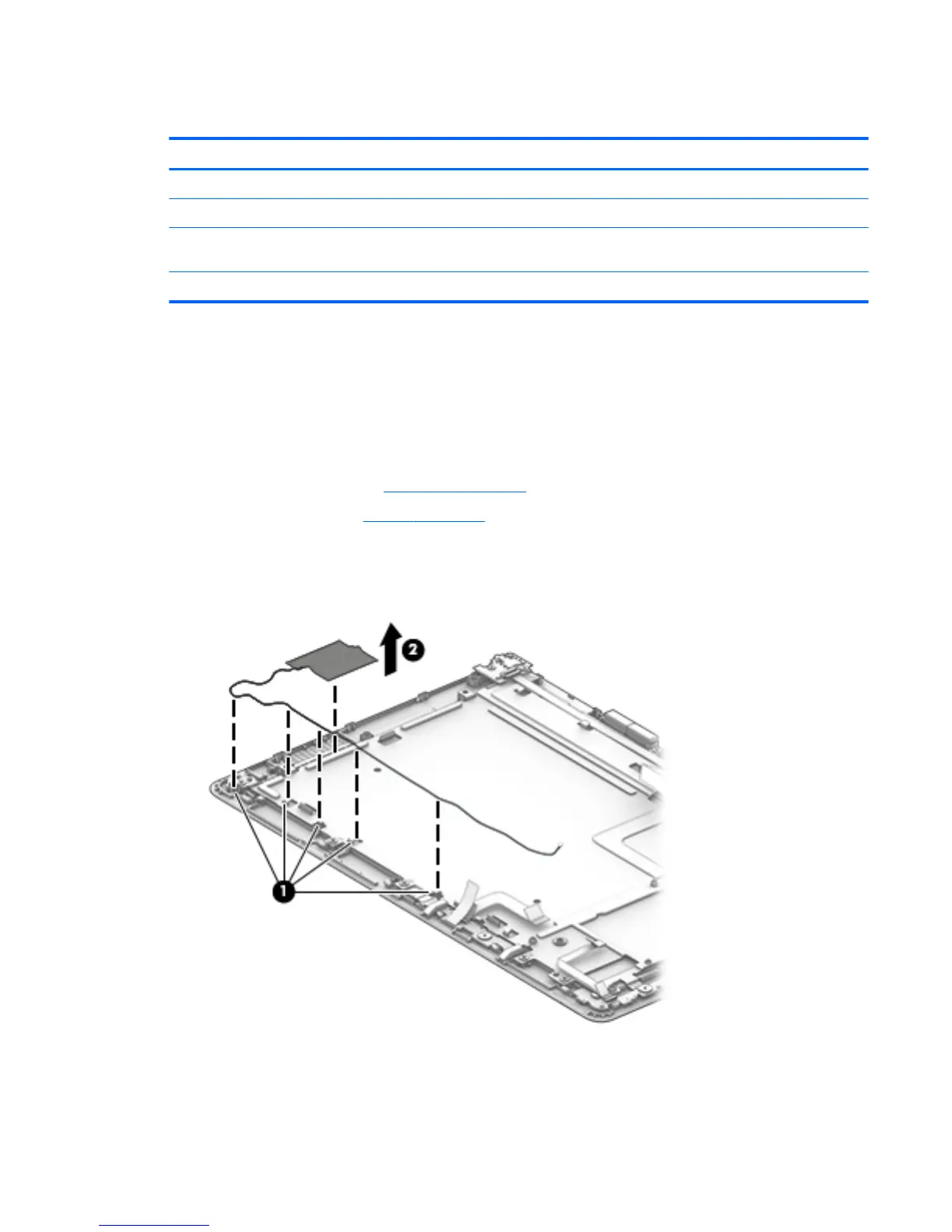

Release the wireless antenna cable from the routing channels (1) to which the wireless antenna cable is
attached, and then remove the wireless antenna (2) and cable.
Reverse this procedure to install the wireless antenna.
Wireless antenna 37
