Power/volume button board
Description Spare part number
Power/volume button board (includes cable) 814722-001
832766-001
Before removing the power/volume button board, follow these steps:
1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 26), and then remove the following components:
a. Battery (see Battery on page 28)
b. Audio jack board (see Audio board on page 30)
c. Speakers (see Speakers on page 31)
d. Touch board (see Touch board on page 33)
e. System board (see System board on page 34)
f. Wireless antenna (see Wireless antenna on page 37)

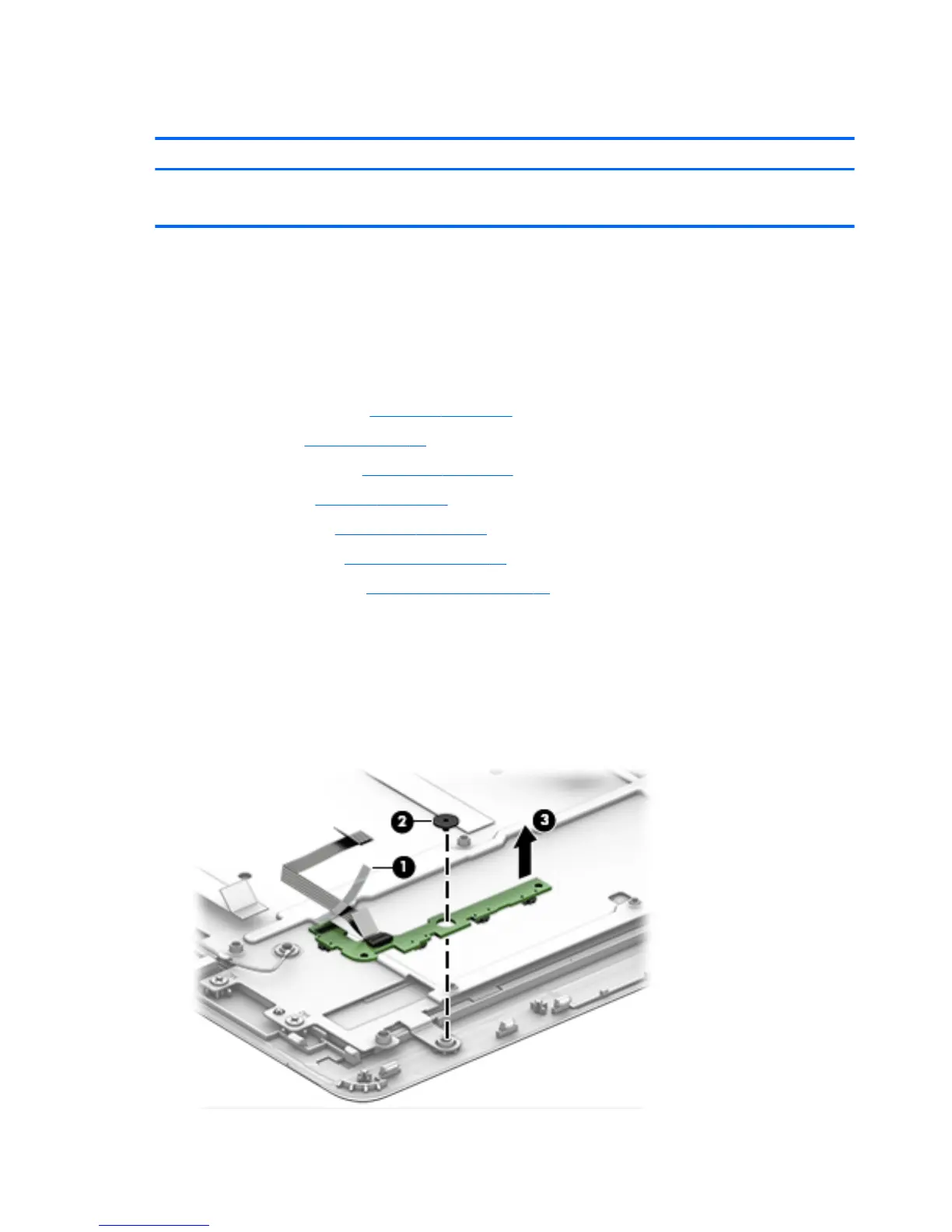

Remove the power/volume button board:
1. Release the ZIF connector (1) to which the power/volume button board cable is attached, and then
disconnect the power/volume button board cable from the system board.
2. Remove the broad head screw (2) that secures the power/volume button board to the display panel
assembly.
3. Remove the power/volume button board (3) and cable.
38 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
