HP Pavilion x360 14 User Manual

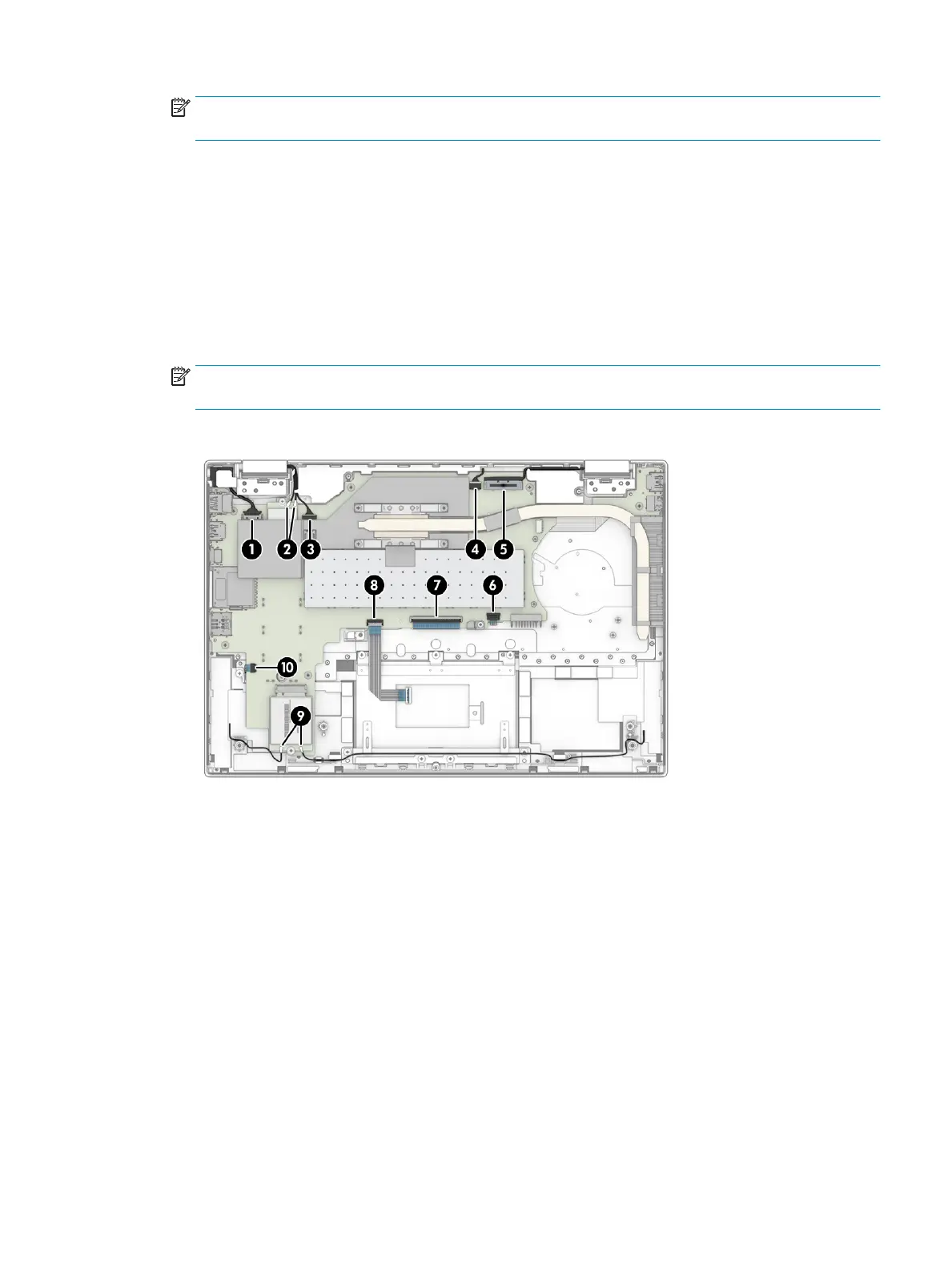

NOTE: The #1/white WLAN antenna cable connects to the WLAN module #1/Main terminal. The #2/black
WLAN antenna cable connects to the WLAN module #2/Aux terminal.
(3) Webcam/microphone module cable
(4) Speaker cable
(5) Display panel cable
(6) Backlight ZIF connector cable
(7) Keyboard ZIF connector cable
(8) Touchpad ZIF connector cable
(9) WWAN antenna cables (select products only)
NOTE: The #5/blue WWAN antenna cable connects to the WWAN module #5/Main terminal. The #6/red
WWAN antenna cable connects to the WWAN module #6/Aux terminal.
(10) Fingerprint reader ZIF connector cable
Component replacement procedures 63
