4. Remove the following 16 screws:
• Six M2.5×7.0 mm screws on the rear edge of the notebook.
• Two M2.5×6.0 mm screws on each side of the docking connector.
• One M2.5×6.0 mm screw behind the battery bay.
• Three M2.5×7.0 mm screws around the middle fan vent.
• One M2.5×4.0 mm screw in the battery bay.
• Three M2.5×7.0 mm screws on the front edge of the notebook.
Caution
The 16 screws removed in Step 4 are three different lengths. Be sure to note of the correct
location of each screw as it is removed and install it in the correct location. Failure to follow this
caution can result in damage to the notebook.

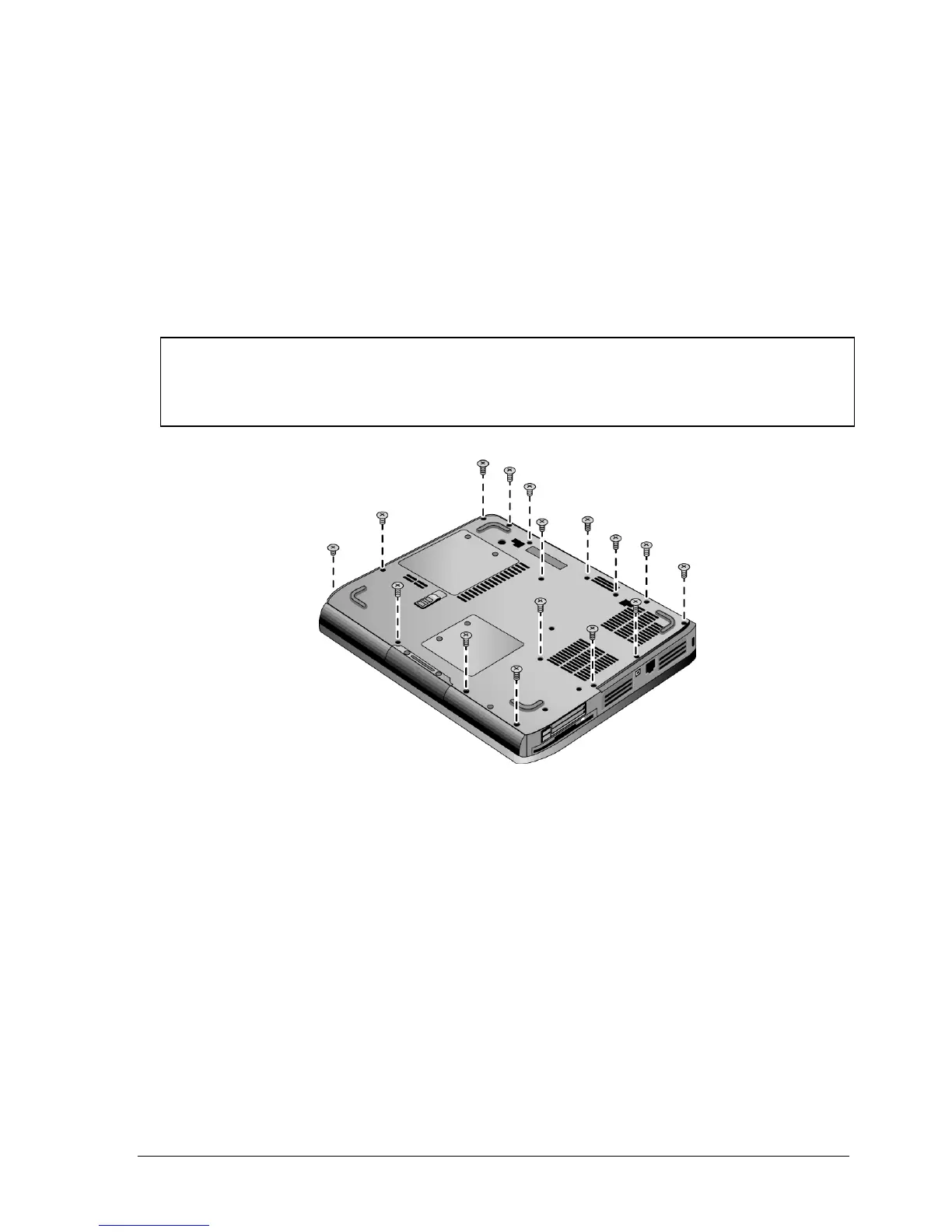

Figure 2-19. Removing the Top Case Screws
HP Pavilion 5300 and 5200, HP nx9010, and Compaq Presario 2500 Models
Service Manual Removal and Replacement 2-29
