4. If necessary, while holding the center of the cover, carefully insert the flat-blade screwdriver
under the right side of the display assembly hinge, gently pry up, and then lift the cover out. This
procedure might need to be repeated on the left side of display assembly hinge to completely
remove the cover.

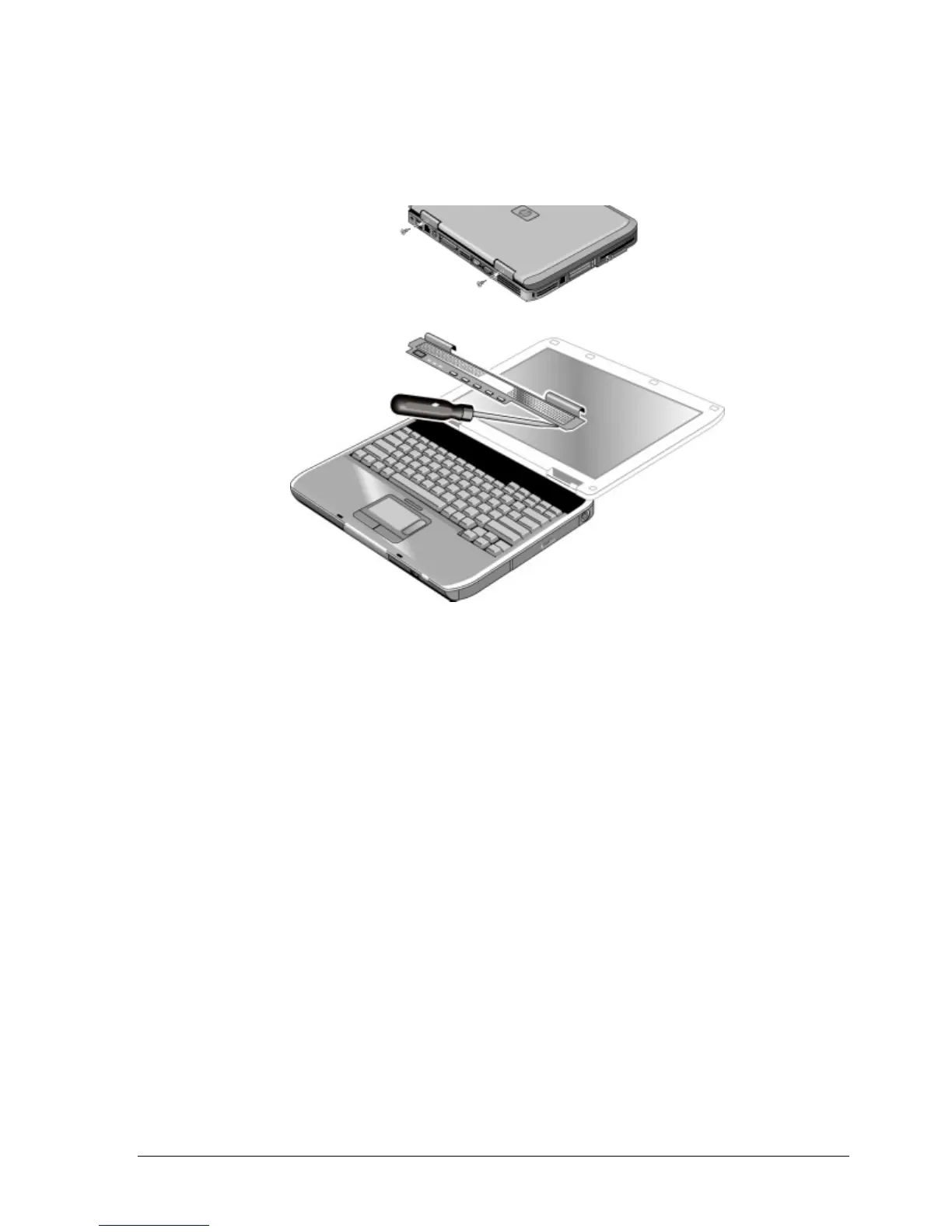

Figure 2-9. Removing the Keyboard Cover
Service Manual Removal and Replacement 2-13
