3. Remove the four screws that secure the hard disk drive guide to the bottom case.
Note
The four screws that secure the hard disk drive guide are two different sizes. The screw in the
upper left corner is a M2.5×6.0 mm screw. The remaining three screws are M2.0×4.0 mm screws.
Make sure these screws are installed in the correct locations when reinstalling the hard disk drive
guide.
4.
5.
6.
7.
8.
Remove the hard disk drive guide.
Disconnect the modem cable from the motherboard.
Disconnect the 1394 cable from the motherboard.
Remove the M2.5×6.0 mm screw that secures the RJ11/1394 connector module to the bottom case.
Remove the RJ11/1394 connector module.

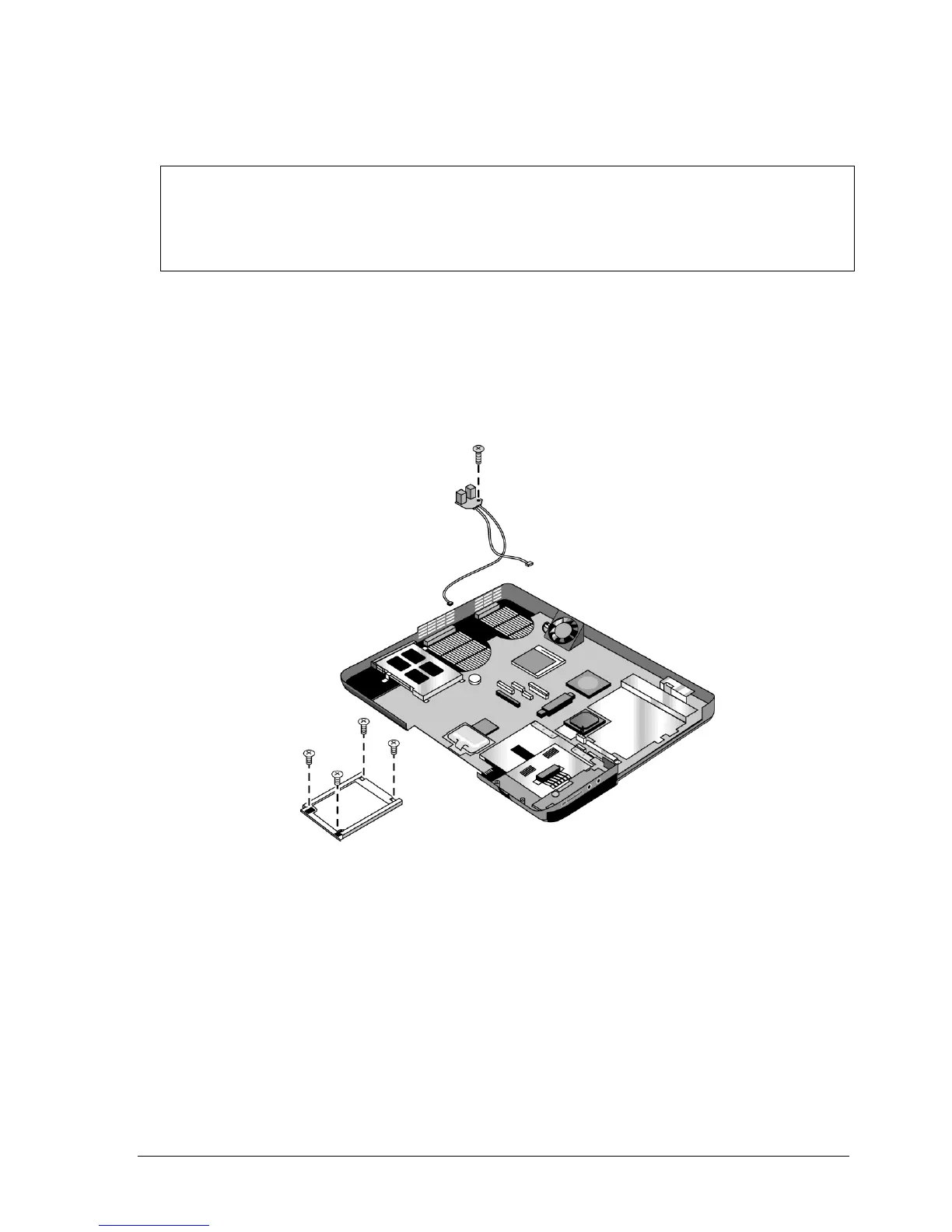

Figure 2-30. Removing the RJ11/1394 Connector Module
HP Pavilion 5300 and 5200, HP nx9010, and Compaq Presario 2500 Models
Service Manual Removal and Replacement 2-49
