5.
6.
Turn the notebook top side up with the rear panel facing forward.
Remove the two M2.5×7.0 mm screws from the rear of the bottom case.

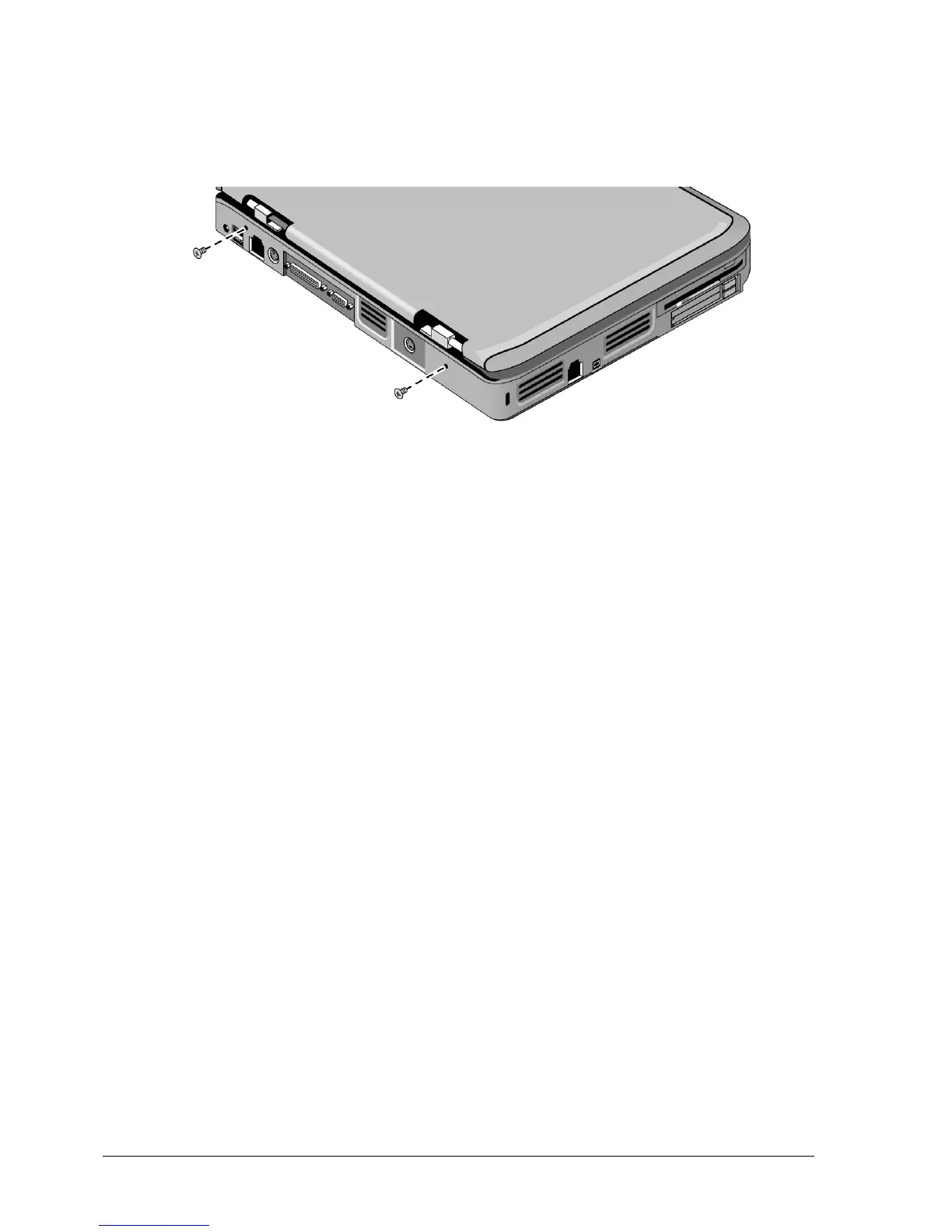

Figure 2-20. Removing the Top Case Screws
HP Pavilion 5300 and 5200, HP nx9010, and Compaq Presario 2500 Models
2-30 Removal and Replacement Service Manual
