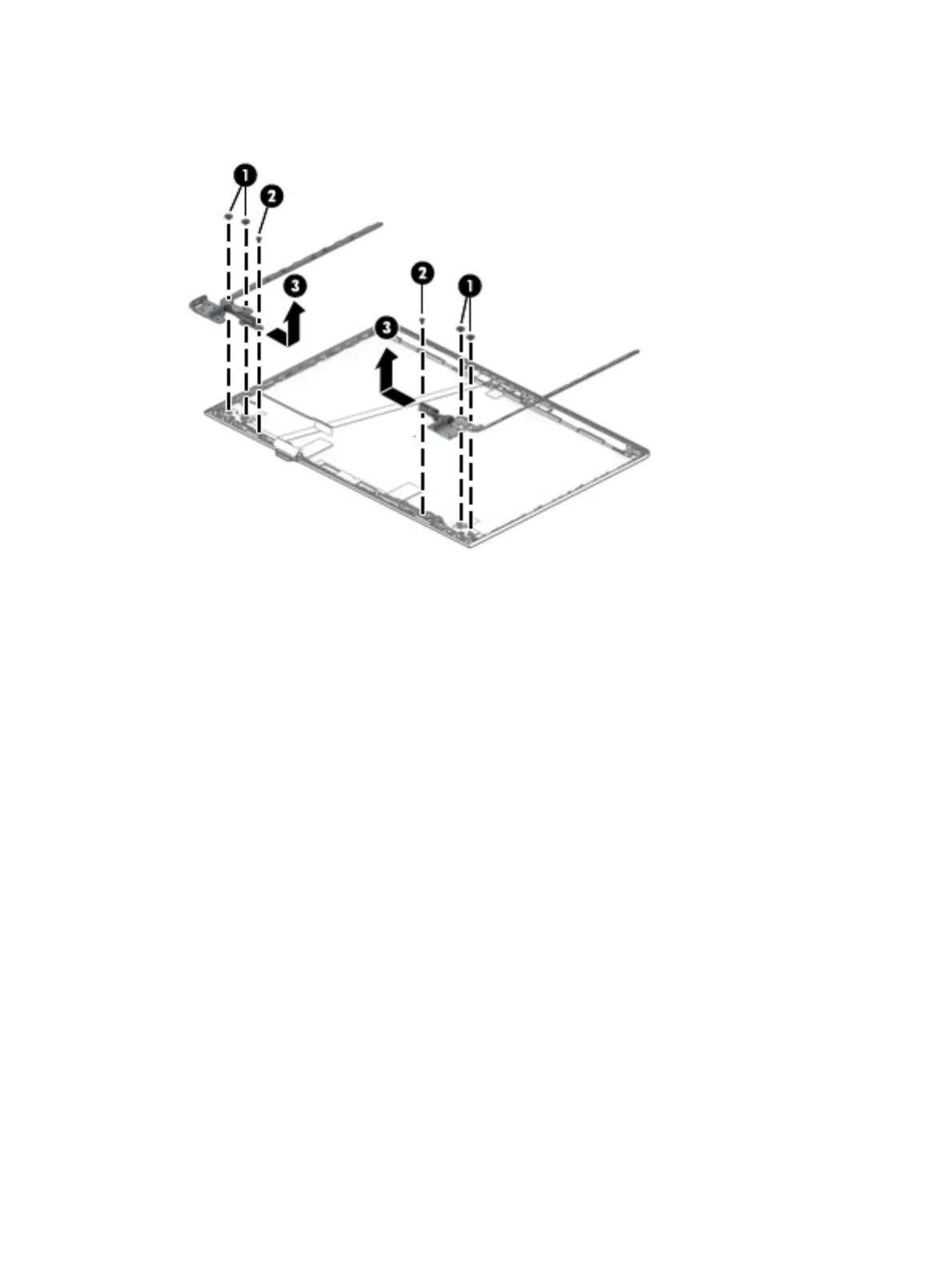

12. Slide the hinges toward the middle and then lift them from the enclosure (3).

The display hinges are available as spare part number L45117-001.

62 Chapter 6 Removal and replacement procedures for authorized service provider parts
