Introducing the HP Procurve Switch 2650
Front of the Switch
Introducing the HP Procurve
Switch 2650
Front of the Switch
Network Ports
■ 48 auto-sensing 10/100Base-TX ports.
All these ports have the “HP Auto MDIX” feature, which means that you
can use either straight-through or crossover twisted-pair cables to
connect any network devices to the switch.
■ Two dual-personality ports. You can use either the 10/100/1000Base-T
RJ-45 connector, or install a supported HP Procurve mini-GBIC for fiber-
optic connections.
The RJ-45 connectors support the IEEE Auto MDI/MDI-X feature, which
operates the same as the “HP Auto-MDIX” feature.
Dual-Personality Port Operation. By default, the RJ-45 connnectors are
enabled. If a mini-GBIC is installed in a slot, it is enabled and the associated
RJ-45 connector is disabled and cannot be used. If the mini-GBIC is removed,
the associated RJ-45 port is automatically re-enabled.
Port
LED
View
Self
Test
Clear
Reset
Fan
Status
4
5
48
47
46
4543
4442
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
Spd mode: off = 10 Mbps, flash = 100 Mbps, on = 1000 Mbps
10/100Base-TX Ports (1 - 48)
Gig-T
Ports
Mini-
GBIC
Ports
1 15 17
16
18
31
32
33
34
47
48
50
49
T
M
T
M
Power
Fault
hp procurve
switch
2650
J4899A
Use only one (T or M) for each Gigabit port
!
1
2
3
Spd
Lnk
Act
FDx
Reset and Clear
buttons
Port LED View select
button and indicator LEDs
Switch port LEDs
Self Test and Fan
Status LEDs
Power
and Fault
LEDs

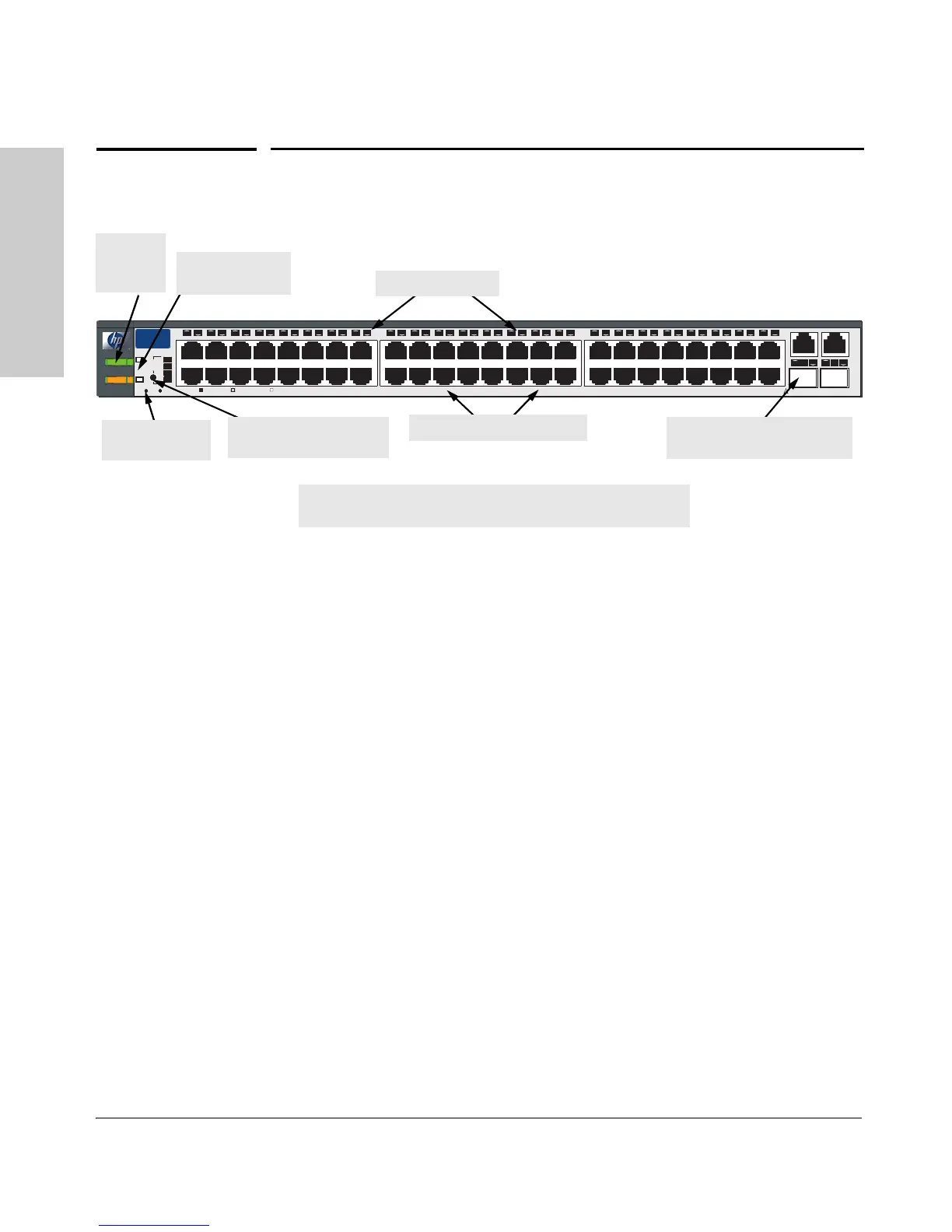

HP Procurve Switch 2650
10/100Base-TX RJ-45 ports*
* All 10/100Base-TX RJ-45 ports have the HP Auto MDIX feature.
10/100/1000Base-T ports have the IEEE Auto MDI/MDI-X feature.
Dual-personality ports
(1000Base-T* or mini-GBIC)
