HP ProCurve 2650 Install Guide

B-9
Switch Ports and Network Cables
Twisted-Pair Cable/Connector Pin-Outs
Switch Ports and Network
Cables
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections
1000Base-T connections require that all four pairs or wires be connected.

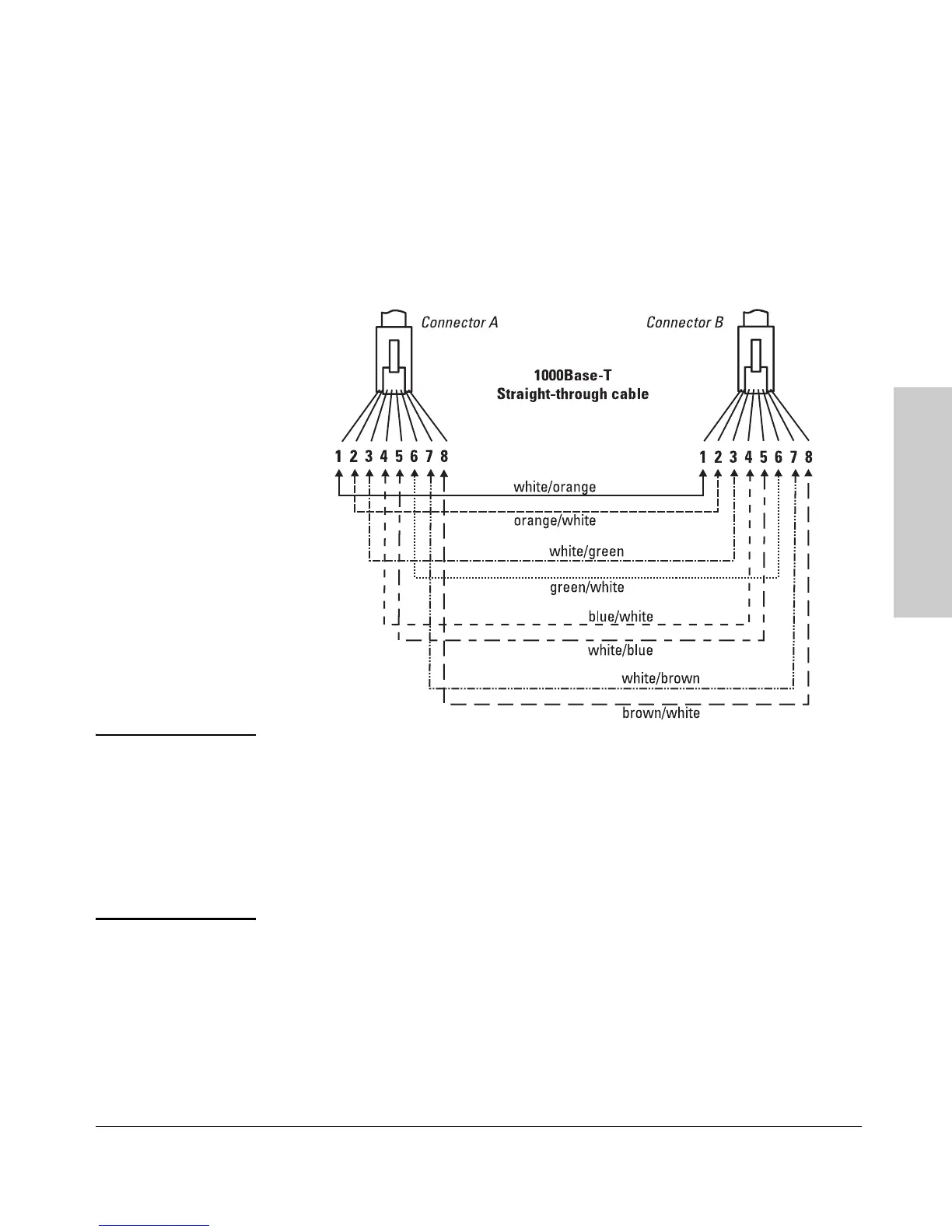

Cable Diagram
Note Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5
on connector “B”.
Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8
on connector “B”.
.
Pin Assignments
For 1000Base-T operation, all four pairs of wires are used for both transmit
and receive.

HP ProCurve 2650 Specifications

General

Switching Capacity	13.6 Gbps
Forwarding Rate	10.1 Mpps
Layer	2
Jumbo Frame Support	Yes
Form Factor	Rack-mountable
VLAN Support	Yes
Layer 3 Routing	No
PoE Support	No
Fanless	No
Altitude	Up to 3, 000 meters
Management	CLI, SNMP
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	15% to 95% non-condensing
