Installing the Switch 2650
Installation Procedures
Installing the Switch 2650
2. Installing or Removing mini-GBICs
You can install or remove a mini-GBIC from a mini-GBIC slot without having
to power off the switch. Use only HP Procurve mini-GBICs.
Notes ■ The mini-GBIC slots are shared with the two 10/100/1000Base-T RJ-45
ports. If a mini-GBIC is installed in a slot, the associated RJ-45 port is
disabled and cannot be used.
■ The mini-GBIC ports operate only at full duplex. Half duplex operation is
not supported.
■ Make sure that the network cable is NOT connected when you install or
remove a mini-GBIC.
When this manual was printed, the supported mini-GBICs include the
following:
■ HP Procurve Gigabit-SX-LC mini-GBIC (J4858A)
■ HP Procurve Gigabit-LX-LC mini-GBIC (J4859A)
■ HP Procurve Gigabit-LH-LC mini-GBIC (J4860A)
Caution The HP Procurve mini-GBICs are Class 1 laser devices. Avoid direct eye
exposure to the beam coming from the transmit port.
Installing the mini-GBICs:

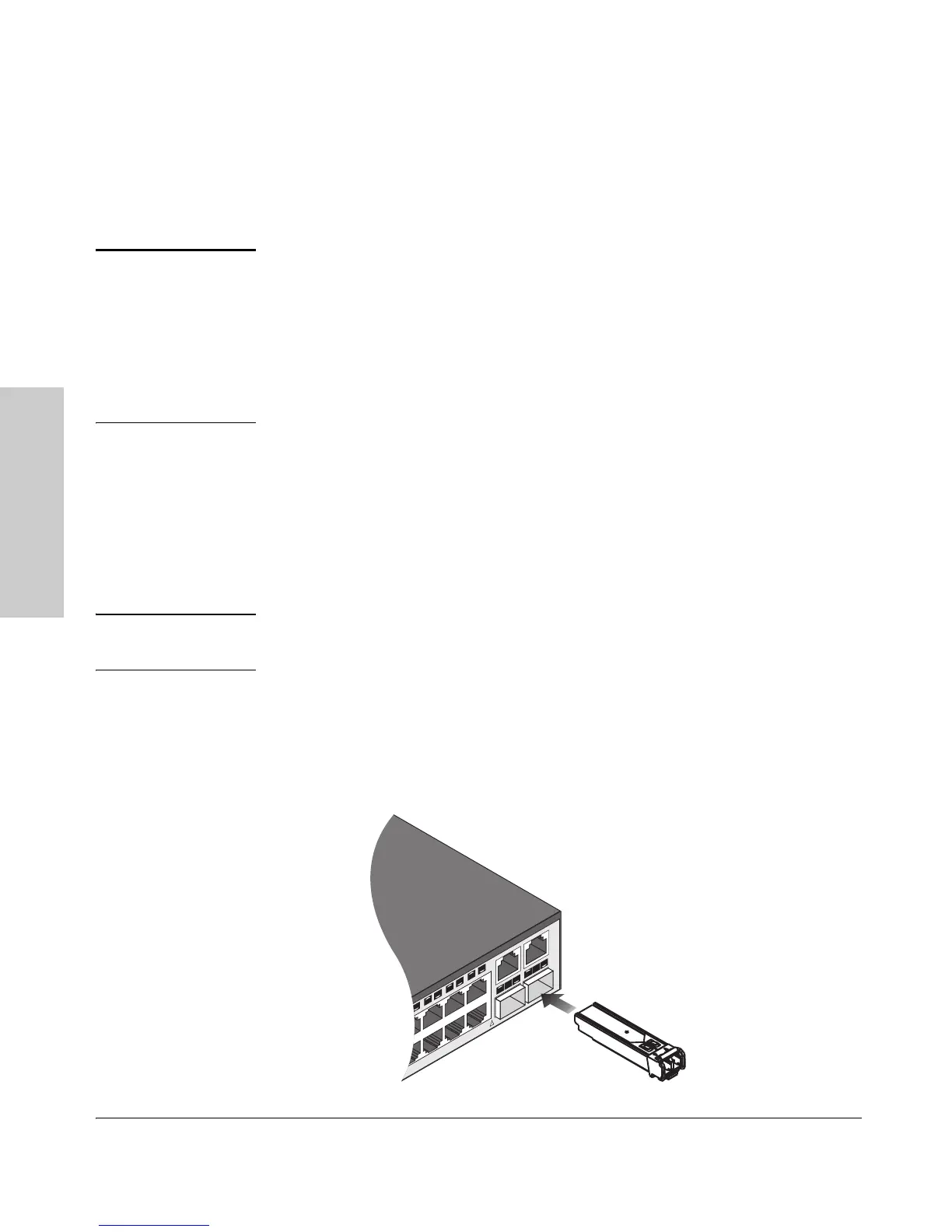

Hold the mini-GBIC by its sides and gently insert it into either of the slots on
the switch until the mini-GBIC clicks into place.
48
47
46
45
43
44
42
41
40
39
38
37
Gig-T
Ports
Mini-
GBIC
Ports
47
48
50
49
T
M
T
M
Use only one (T or M) for each Gigabit port
!

HP ProCurve 2650 Specifications

General

Switching Capacity	13.6 Gbps
Forwarding Rate	10.1 Mpps
Layer	2
Jumbo Frame Support	Yes
Form Factor	Rack-mountable
VLAN Support	Yes
Layer 3 Routing	No
PoE Support	No
Fanless	No
Altitude	Up to 3, 000 meters
Management	CLI, SNMP
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	15% to 95% non-condensing
