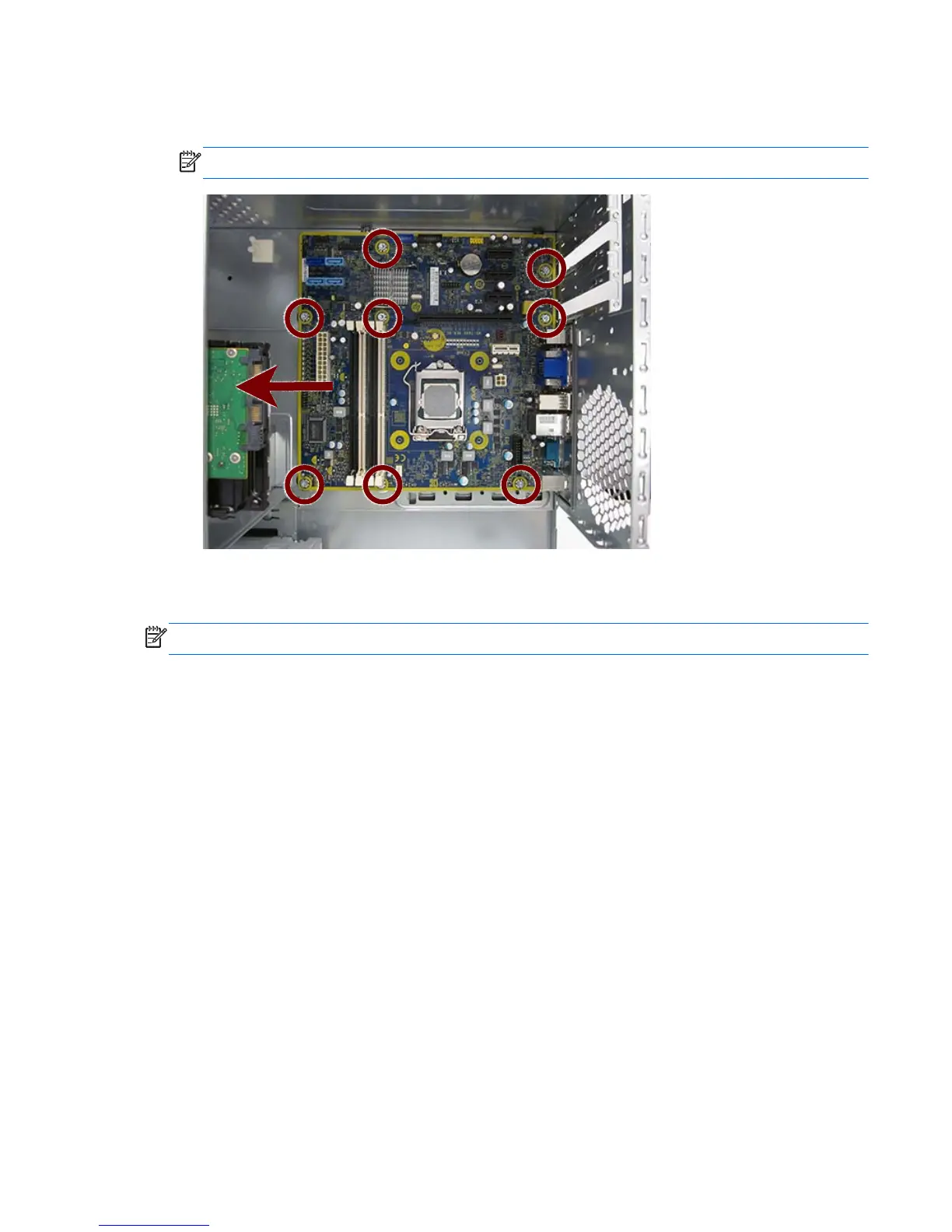

6. Slide the system board toward the front of the computer to disengage the I/O panel, and then lift
the back (I/O side) of the board up at angle, and then lift system board out of the computer.
NOTE: System board appearance may vary.
When reinstalling the system board, first insert the I/O panel back into the slots in the rear of the
chassis, and then align the board with the chassis screw holes.
NOTE: When replacing the system board, you must change the chassis serial number in the BIOS.
System board
91
