Bezel blanks
Description Spare part number
Optical drive bezel blank 732769-001
On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch external drive bays that
need to be removed before installing a drive. To remove a bezel blank:
1. Remove the access panel (
Access panel on page 93).
2. Remove the front bezel (
Front bezel on page 94).

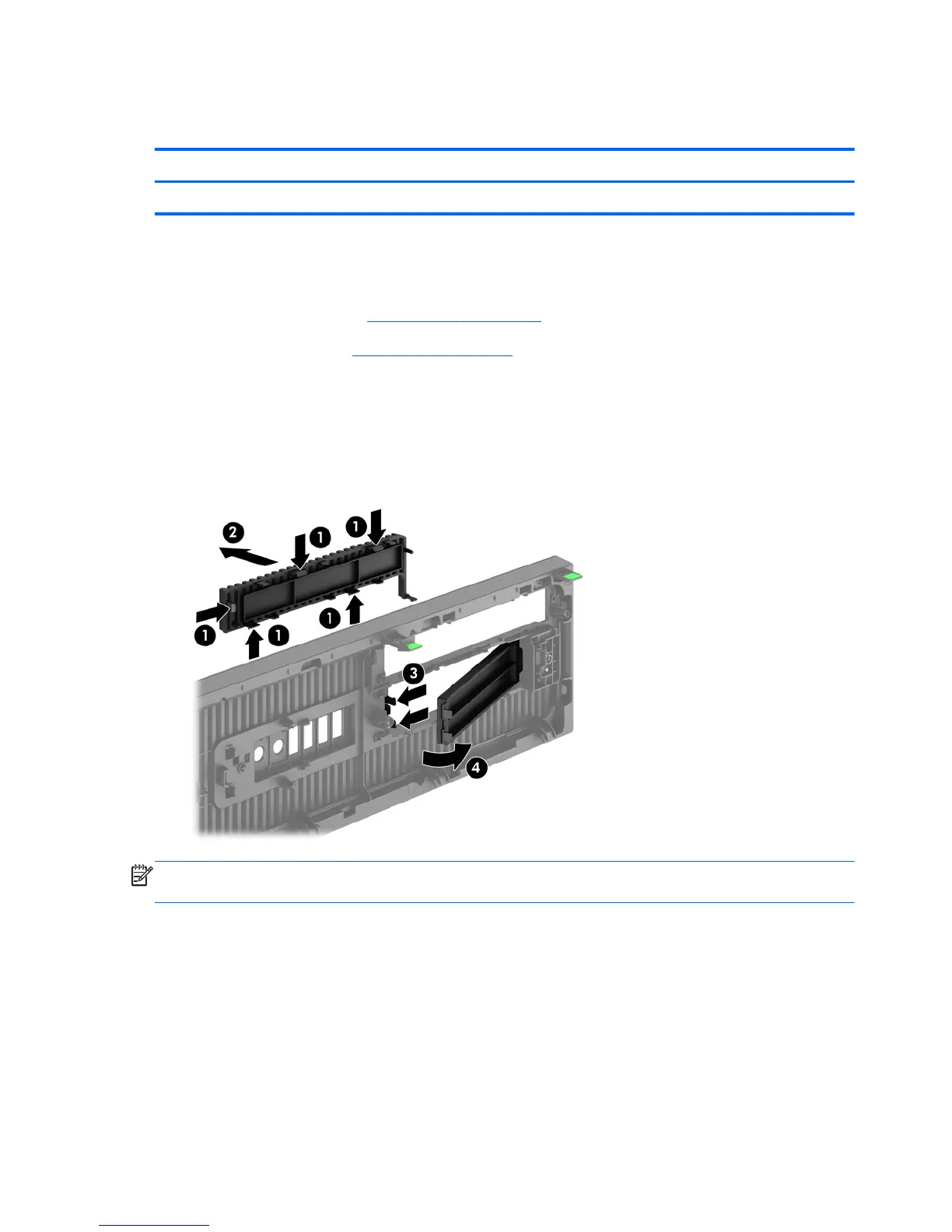

3. To remove a slim optical drive bezel blank, press inward on the five retaining tabs (1) and pull the
blank off the front bezel (2).
To remove a 3.5-inch bezel blank, press the two retaining tabs that hold the bezel blank in place
towards the outer right edge of the bezel (3) and slide the bezel blank back and to the right to
remove it (4).
NOTE: After removing the slim optical drive bezel blank and installing a slim optical drive, you can
install an optional bezel trim piece (available from HP) that surrounds the front of the slim optical drive.
96 Chapter 6 Removal and replacement procedures: Small Form Factor
