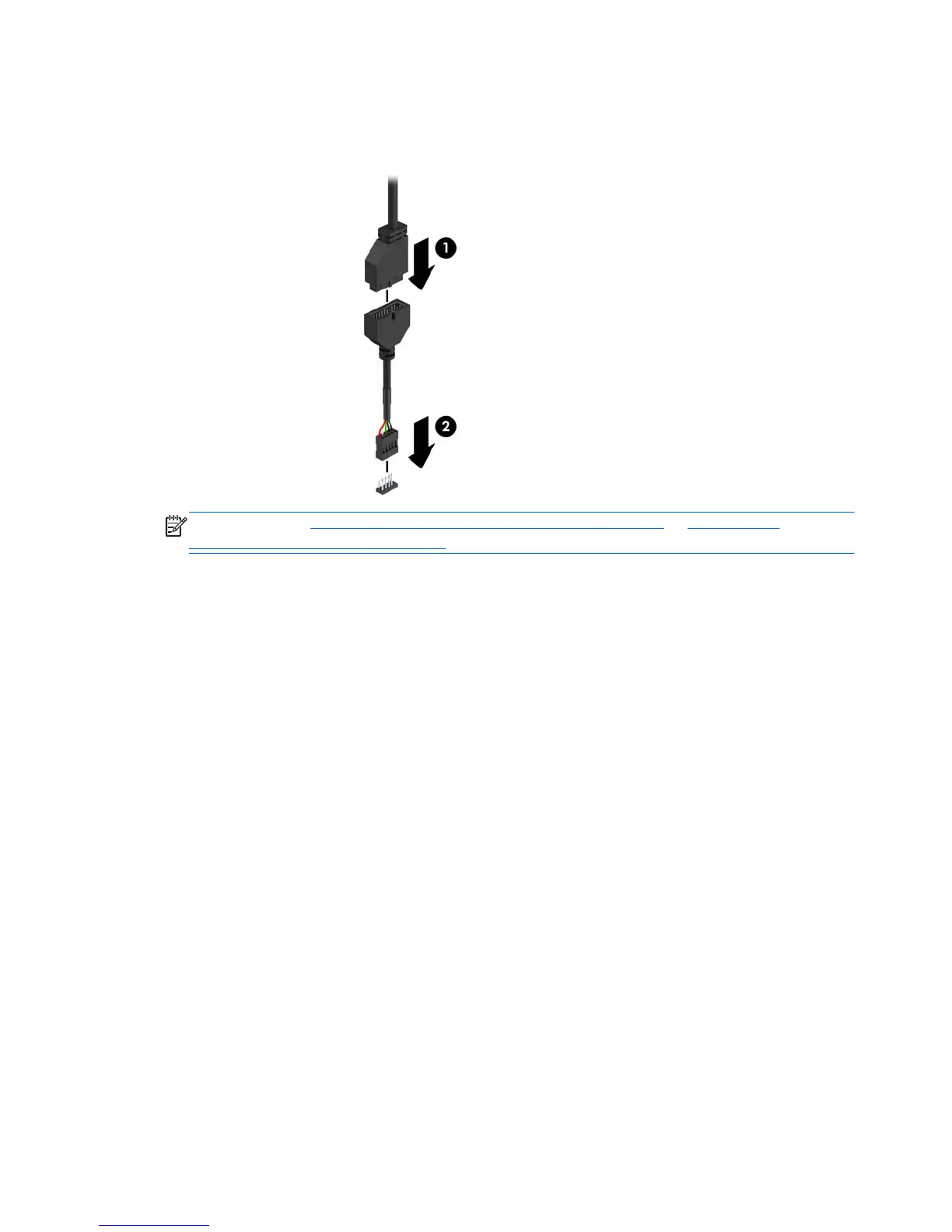

5. If installing a USB 3.0 media card reader, connect the media card reader 3.0 cable to the USB
3.0 to USB 2.0 adapter (1) and connect the adapter to the connector on the system board labeled
MEDIA (2).
NOTE: Refer to System board connections – model 400 on page 56 or System board
connections – model 480 on page 57 for an illustration of the system board drive connectors.
68 Chapter 5 Removal and replacement procedures: Microtower
