HP ProDesk 600 G2 Desktop Mini Service Manual

Front bezel
The front bezel is secured to the top cover by tabs.
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the top cover (Top cover on page 21).
3. Position the top cover upside-down so you can access the inside of the bezel.

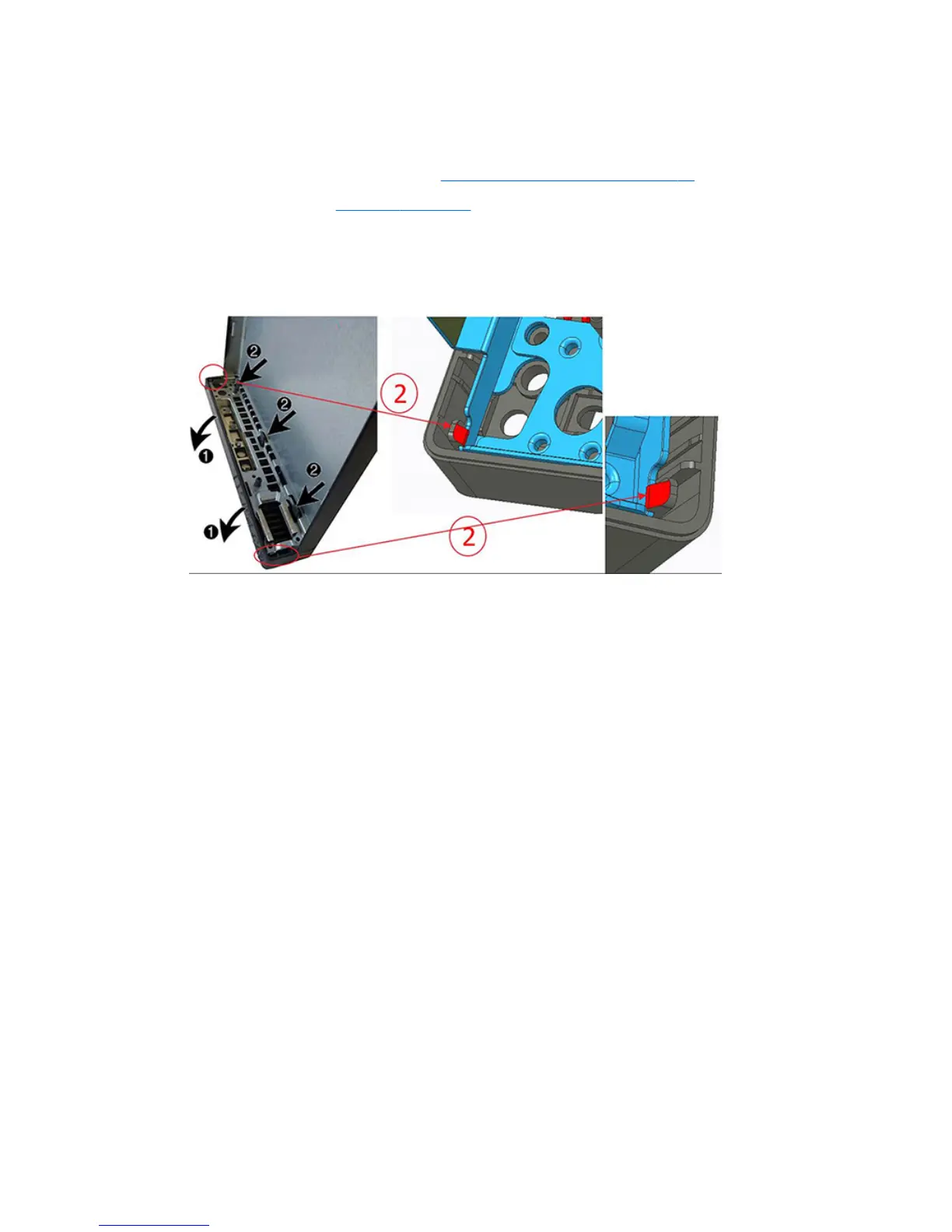

4. Pull down to loose the bottom, interior on the bezel (1).
5. Disengage the tabs on the top, interior of the bezel (2).
6. Remove the bezel from the top cover.
To install the front bezel, reverse the removal procedure.
22 Chapter 4 Removal and replacement procedures – desktop mini (DM) chassis

HP ProDesk 600 G2 Desktop Mini Specifications

General

Graphics	Intel HD Graphics 530
Chipset	Intel Q150
Power Supply	65 W external power adapter
Processor	Intel Core i3/i5/i7 (6th Gen)
RAM	Up to 32 GB DDR4 SDRAM 2133 MHz
Storage	500GB HDD / 128GB SSD / 256GB SSD / 512GB SSD / 1TB HDD
Operating System	Windows 10 Pro 64
Network	Intel Ethernet I219-LM Gigabit Network Connection
Dimensions	17.7 x 17.5 x 3.4 cm
Weight	1.3 kg
Ports	4 x USB 3.0, 2 x USB 2.0, 1 x HDMI, 1 x DisplayPort, 1 x VGA, 1 x RJ-45, 1 x headphone/microphone combo jack
