Drive cage
The drive cage is located next to the heat sink. The drive cage is secured with three Phillips screws.
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the top cover (Top cover on page 21).
3. Remove the hard drive (Hard drive on page 23).

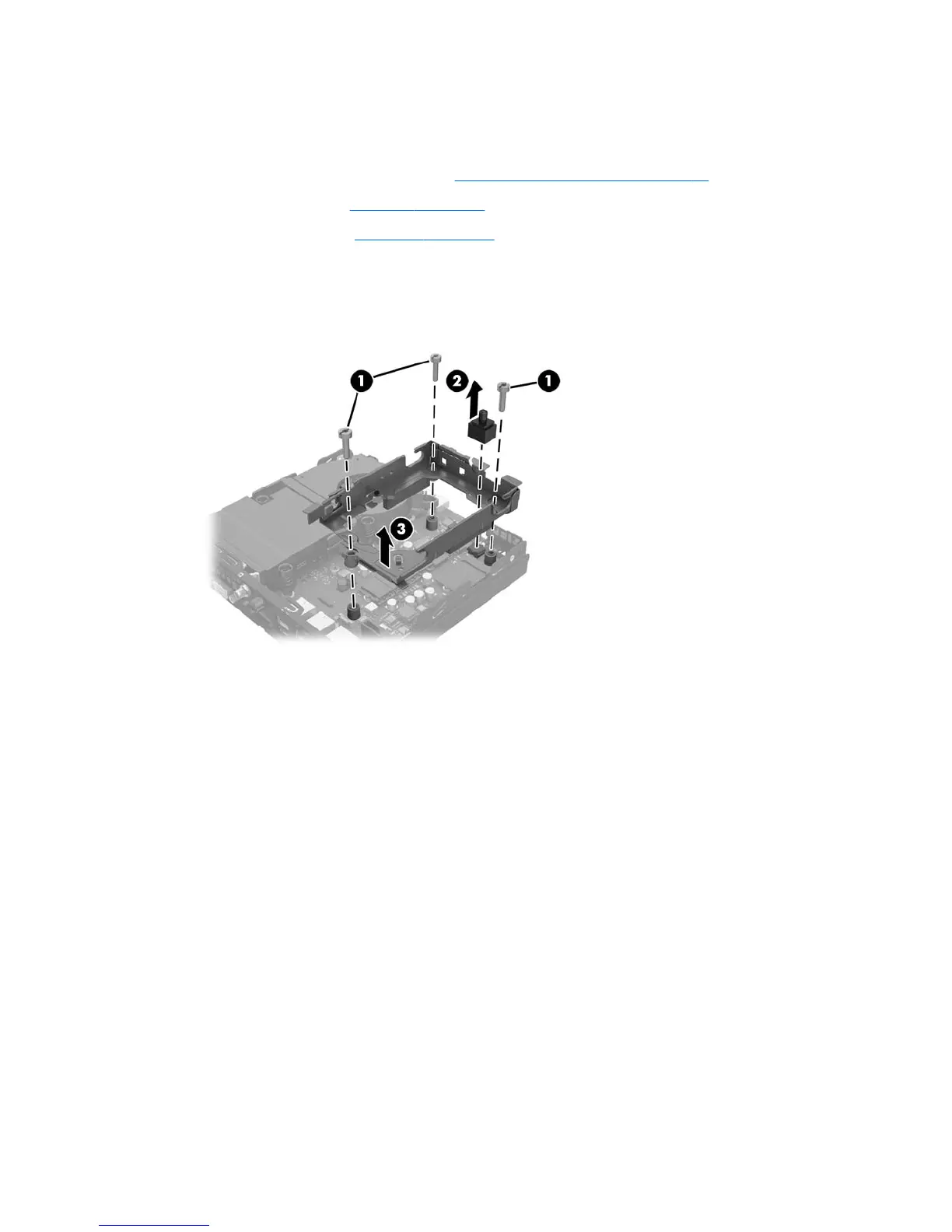

4. Remove the three screws securing the HDD cage to the chassis (1).
5. Pull the hood sensor up and o the HDD cage (2).
6. Lift the HDD cage out of the chassis (3).
To install the drive cage, reverse the removal procedure.
