Fan
The fan sits between the fan sink and the front of the computer.
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the top cover (Top cover on page 21).

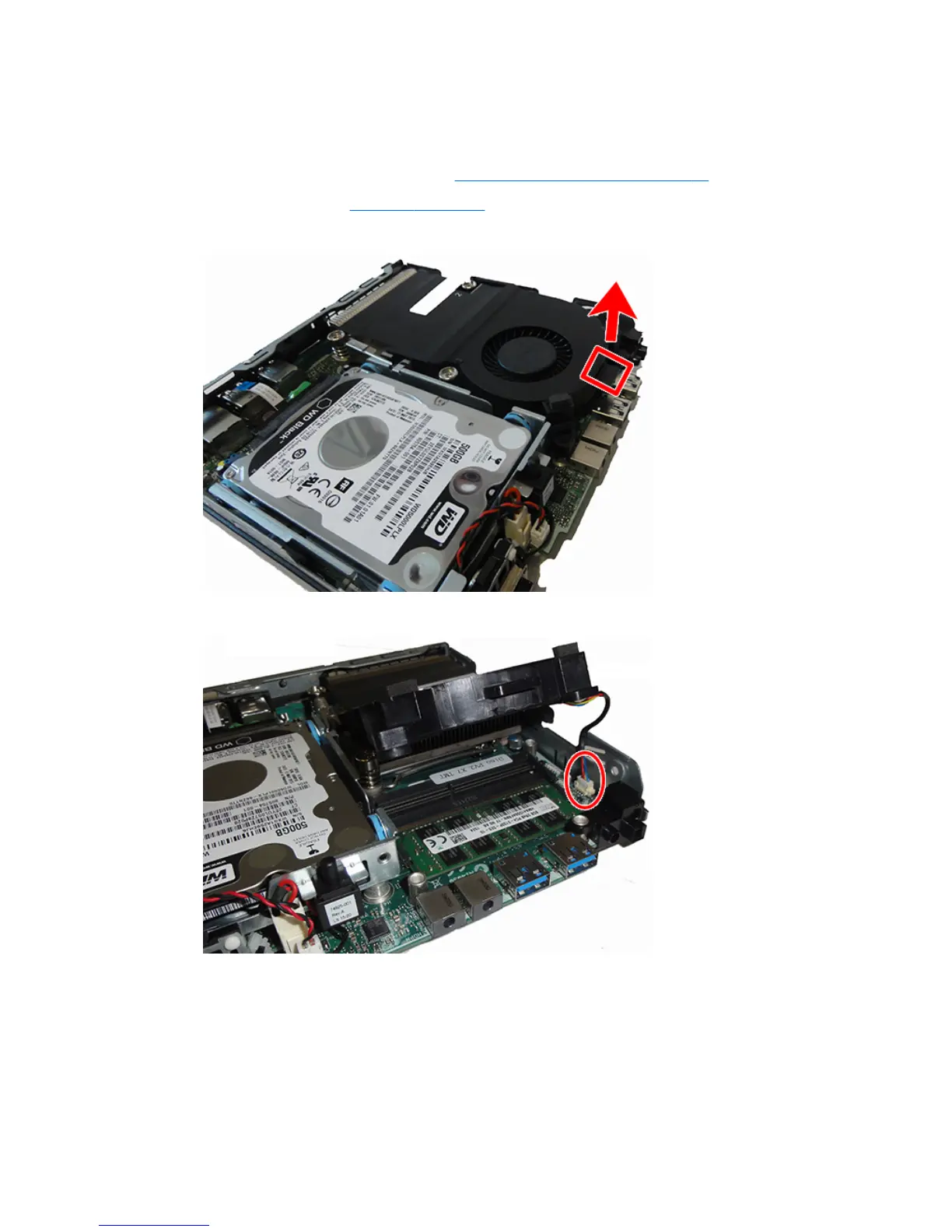

3. Lift the tab on the outer edge of the fan and rotate the fan upward.
4. Disconnect the fan plug from the system board, and then lift the fan out of the chassis.
To install the fan, reverse the removal procedure.
Fan 37
