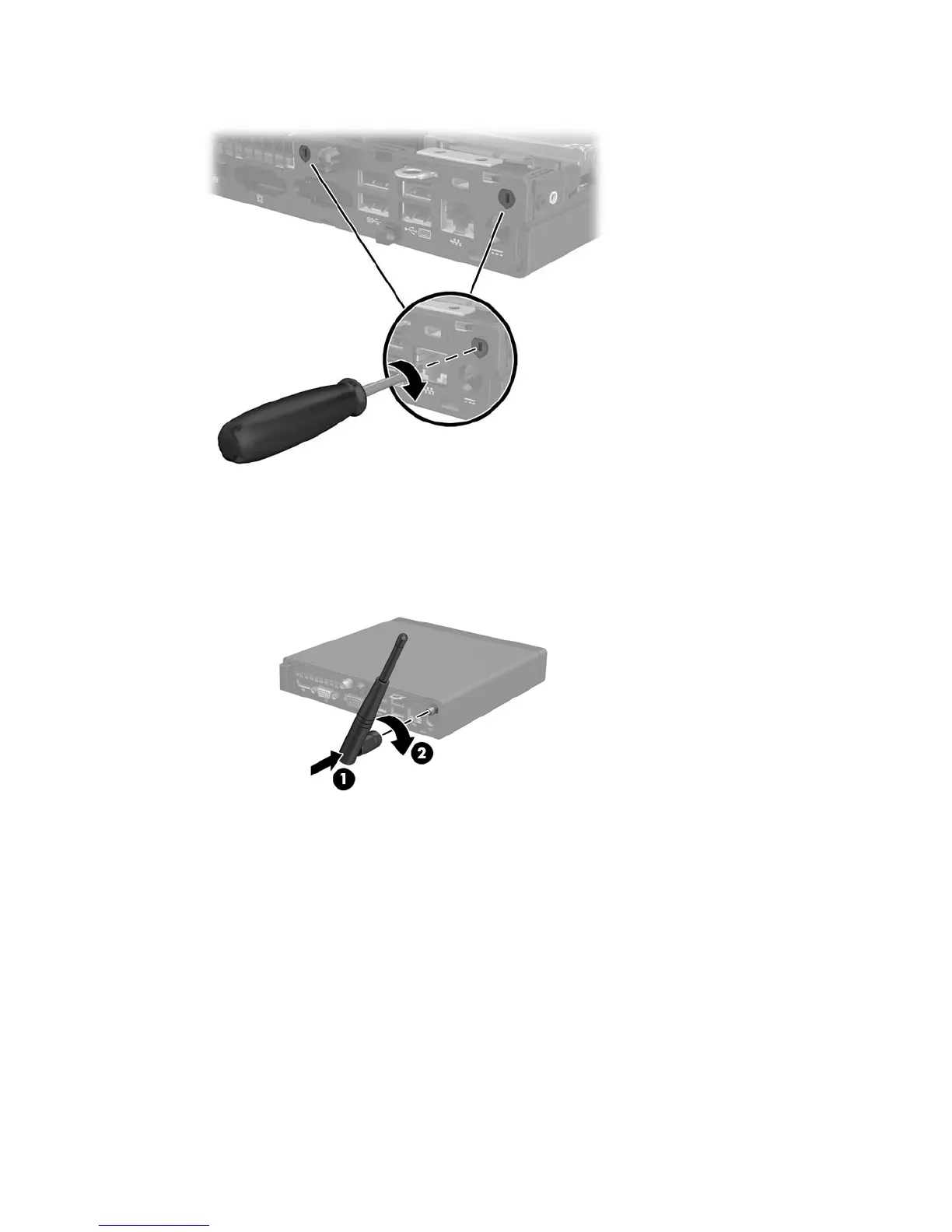

9. Insert a Phillips screwdriver in each knock-out feature and rotate to remove the blank.
10. Feed the external antenna cable through each hole and screw the antenna into position.
11. Connect the external antenna cables to the WLAN module.
Reverse the removal procedure to install the WLAN antennas and transceivers.
External antenna 33

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP ProDesk 600 G2 Desktop Mini and is the answer not in the manual?

HP ProDesk 600 G2 Desktop Mini Specifications

General IconGeneral
GraphicsIntel HD Graphics 530
ChipsetIntel Q150
Power Supply65 W external power adapter
ProcessorIntel Core i3/i5/i7 (6th Gen)
RAMUp to 32 GB DDR4 SDRAM 2133 MHz
Storage500GB HDD / 128GB SSD / 256GB SSD / 512GB SSD / 1TB HDD
Operating SystemWindows 10 Pro 64
NetworkIntel Ethernet I219-LM Gigabit Network Connection
Dimensions17.7 x 17.5 x 3.4 cm
Weight1.3 kg
Ports4 x USB 3.0, 2 x USB 2.0, 1 x HDMI, 1 x DisplayPort, 1 x VGA, 1 x RJ-45, 1 x headphone/microphone combo jack
