HP ProDesk 600 G2 Desktop Mini - Page 64

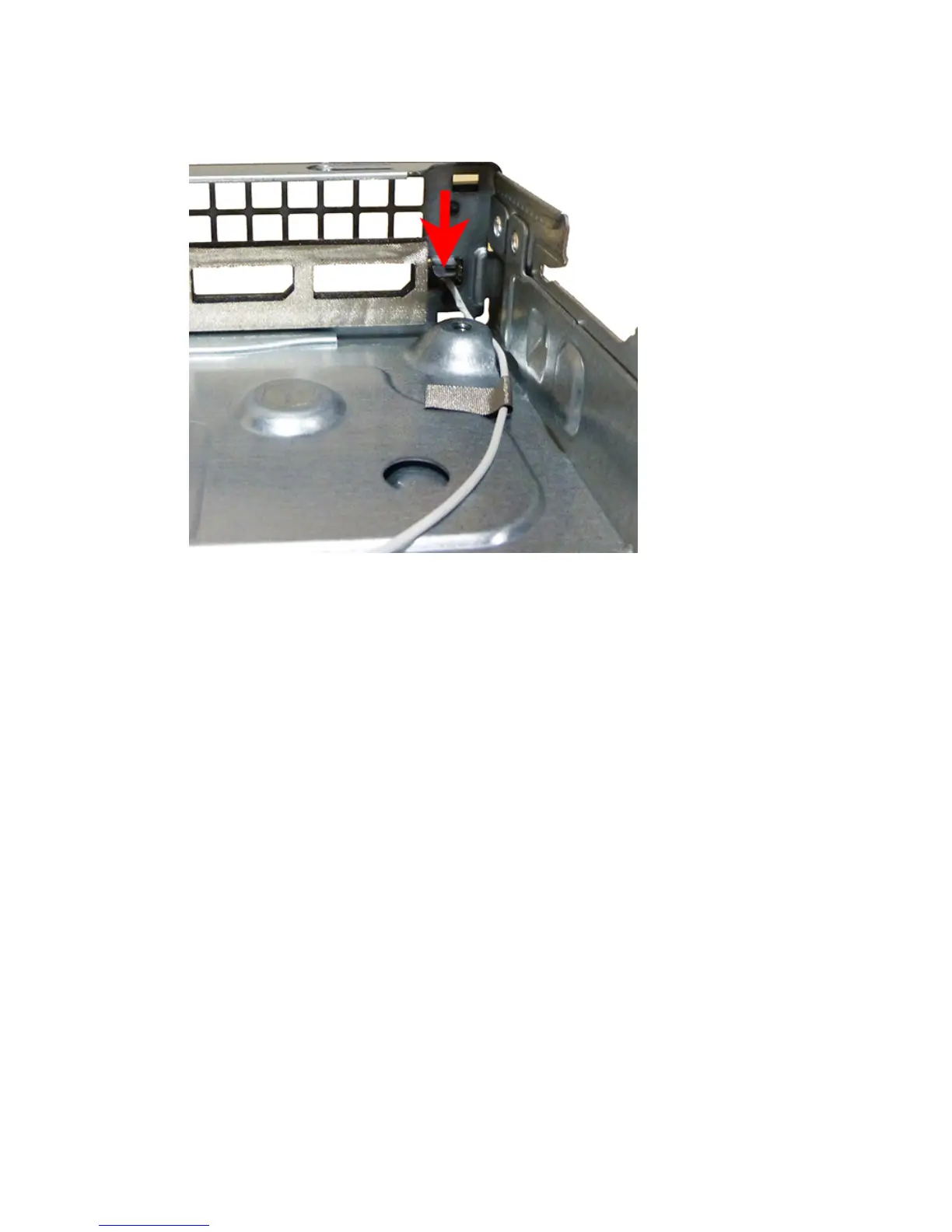

17. Remove the rear transceiver from the inside of the computer by pressing the tab to disengage the
transceiver and removing the transceiver (arrow in following image points to the tabs on the inside of
the computer).
Reverse the removal procedure to install the WLAN antennas and transceivers.
56 Chapter 4 Removal and replacement procedures – desktop mini (DM) chassis
