Configuring the Switch Modules using the Menu-driven Interface
Setting Traffic Class
To configure traffic class:
1. Highlight Configure Traffic of Class on the Configure Class of Service, Default
Priority, and Traffic Class menu.

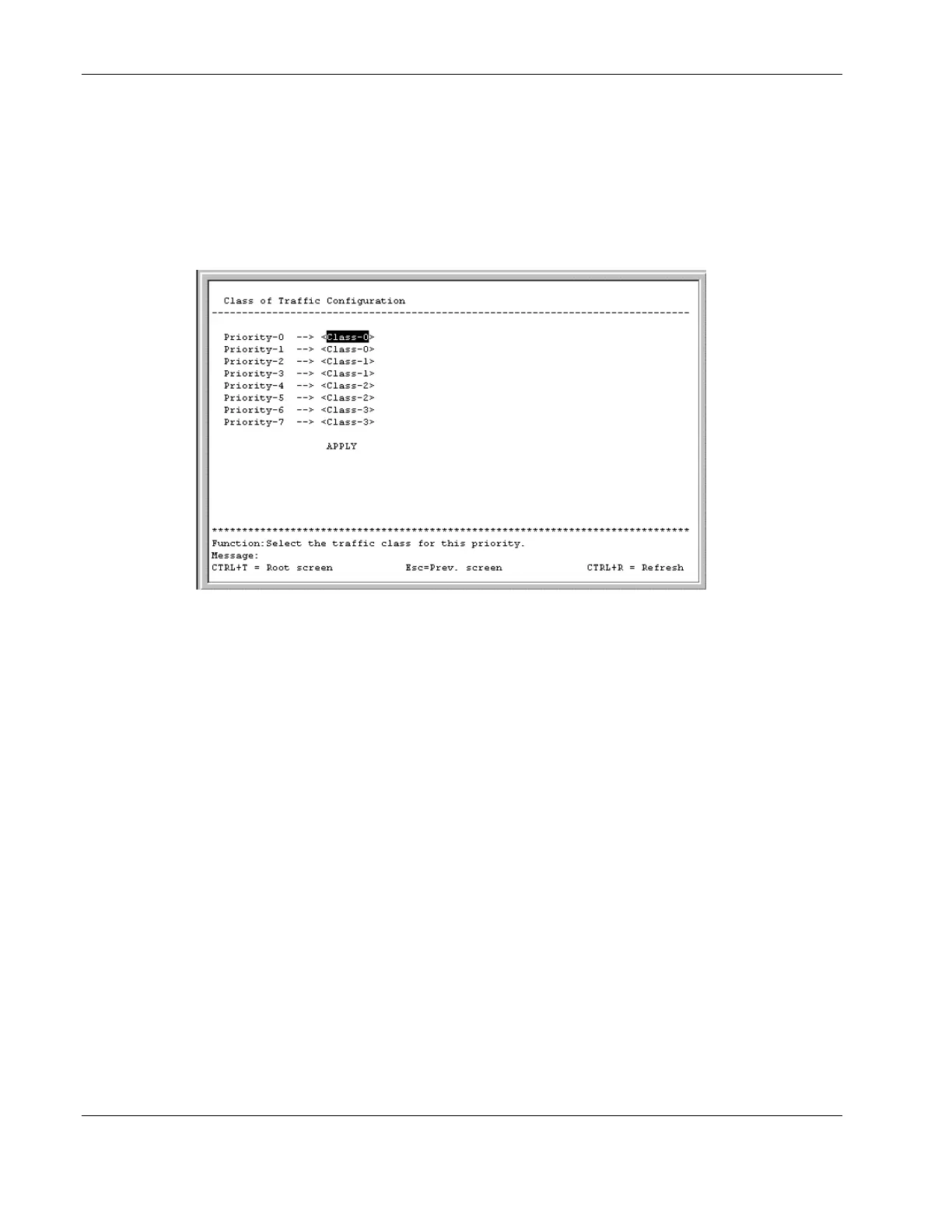

2. Press the Enter key. The following screen is displayed.
3. Toggle the Priority fields to set the traffic class for the eight levels of priority for the
switch module. Class values are from 0 to 3.
4. Highlight APPLY.
5. Press the Enter key.
IMPORTANT: To save the configuration settings permanently, you must enter them into NVRAM
using the Save Changes option on the main menu. Refer to the “Saving Changes” section earlier
in this chapter.
2-42 HP ProLiant BL e-Class C-GbE Interconnect Switch Menu-driven Interface Reference Guide
HP CONFIDENTIAL Codename: DeLorean Part Number: 322858-001 Last Saved On: 2/4/03 11:56 AM
