Removal and replacement procedures 40
b.
Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 27).
o Remove the server from the rack (on page 28).
4. Remove the access panel ("Access panel" on page 29).
5. Remove the processor air baffle ("Processor air baffle" on page 30).

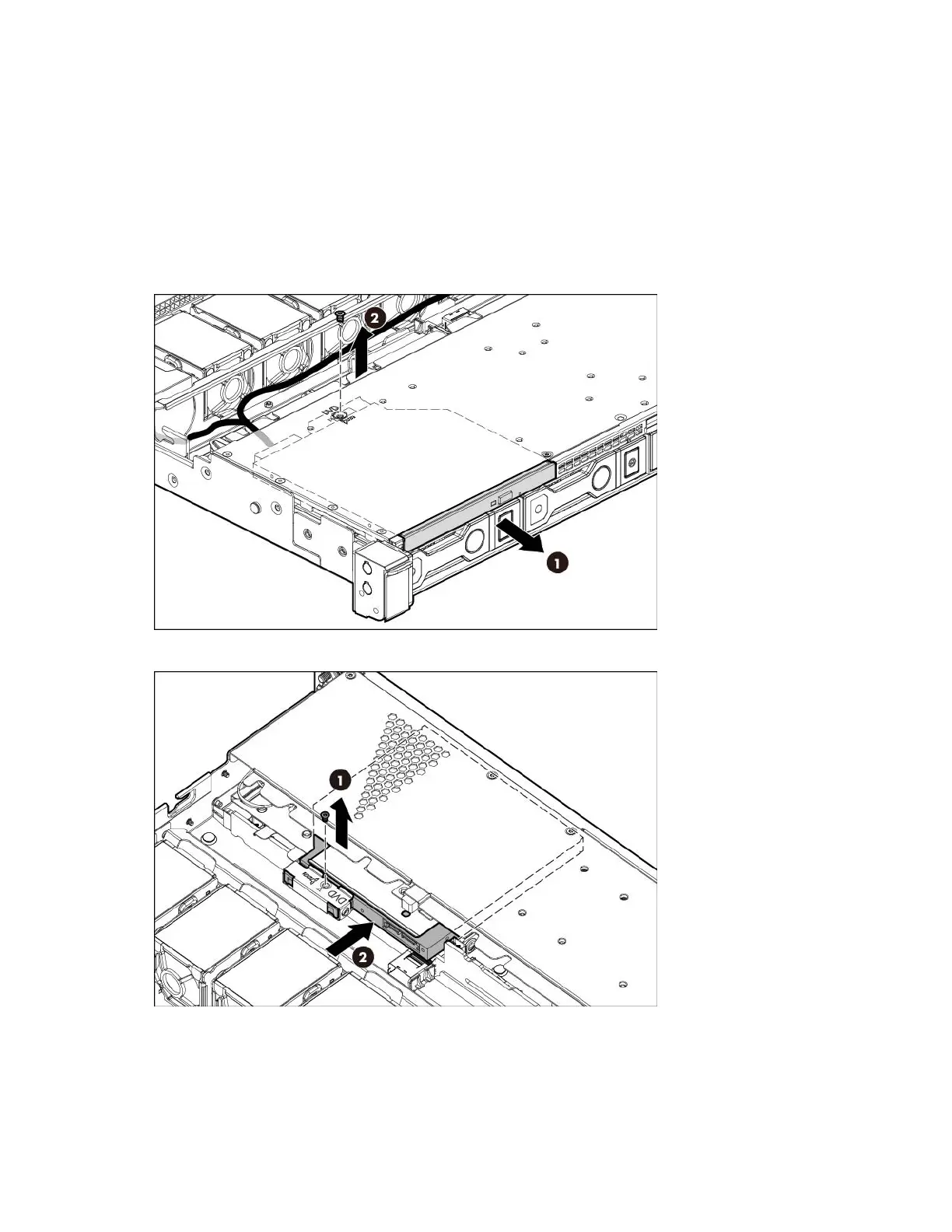

6. Remove the optical drive from the bay:
o LFF configuration
o SFF configuration
