Component identification 74
Item Description Status
•
Power supply in standby mode
•
Power supply exceeded current limit

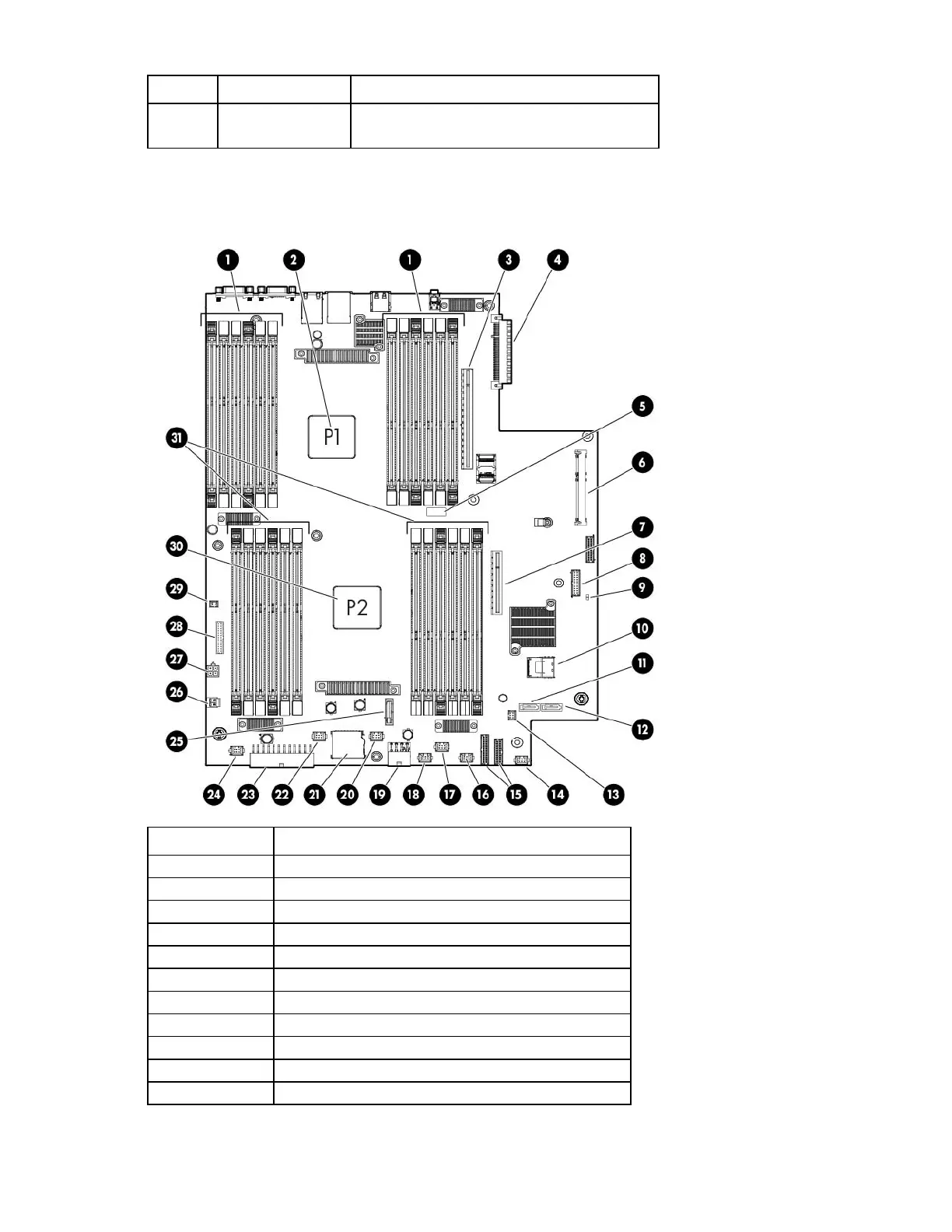

System board components
Item Description
1
Processor 1DIMM slots
2
Processor socket 1
3
PCI riser connector 1
4
FlexibleLOM connector
5
System maintenance switch
6
Cache module connector
7
PCI riser connector 2
8
TPM connector
9
NMI header
10
Mini-SAS connector
11
SATA connector 2
