HP ProLiant DL160 Gen8 Service Manual

Removal and replacement procedures 42
5.

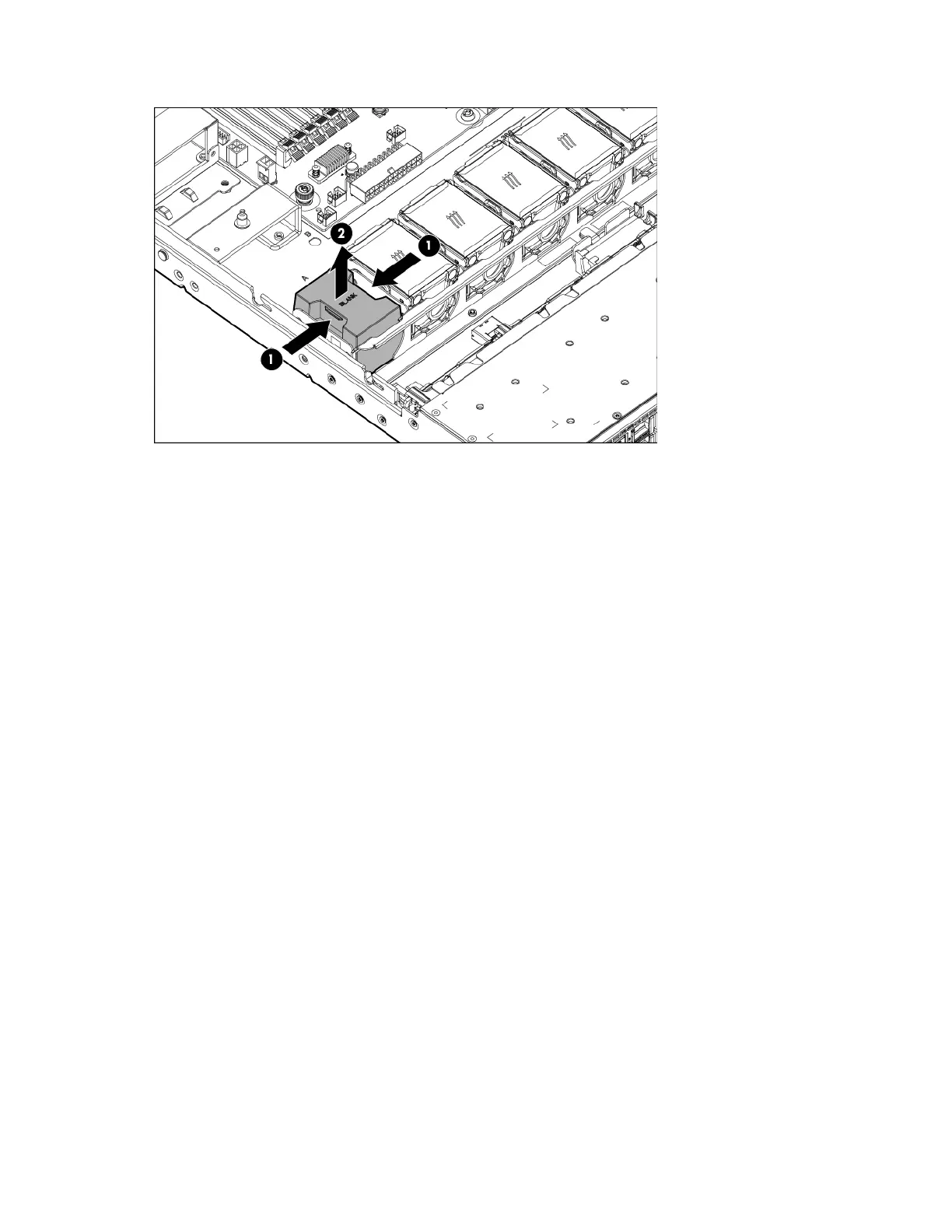

Remove the fan blank.
To replace the component, reverse the removal procedure.
Fan module
When one processor is installed, install fan blanks in slots 1, 2, and 5. When two processors are installed,
install fans in slots 2 and 5; always install a fan blank in slot 1.
To remove a fan module:
1. Power down the server (on page 27).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 27).
o Remove the server from the rack (on page 28).
4. Remove the access panel ("Access panel" on page 29).
5. Remove the processor air baffle ("Processor air baffle" on page 30).

HP ProLiant DL160 Gen8 Specifications

General

Max Processors	2
Form Factor	1U rack
Management	HP iLO 4
Processor	Intel Xeon E5-2600 series
Storage	Up to 4 LFF SAS/SATA/SSD or 8 SFF SAS/SATA/SSD drives
Network	4 x 1Gb Ethernet ports
Power Supply	460W or 750W
Chipset	Intel C600
Expansion Slots	Up to 2 PCIe 3.0 slots
RAID Support	HP Smart Array P420i Controller
