Removal and replacement procedures 32
b.

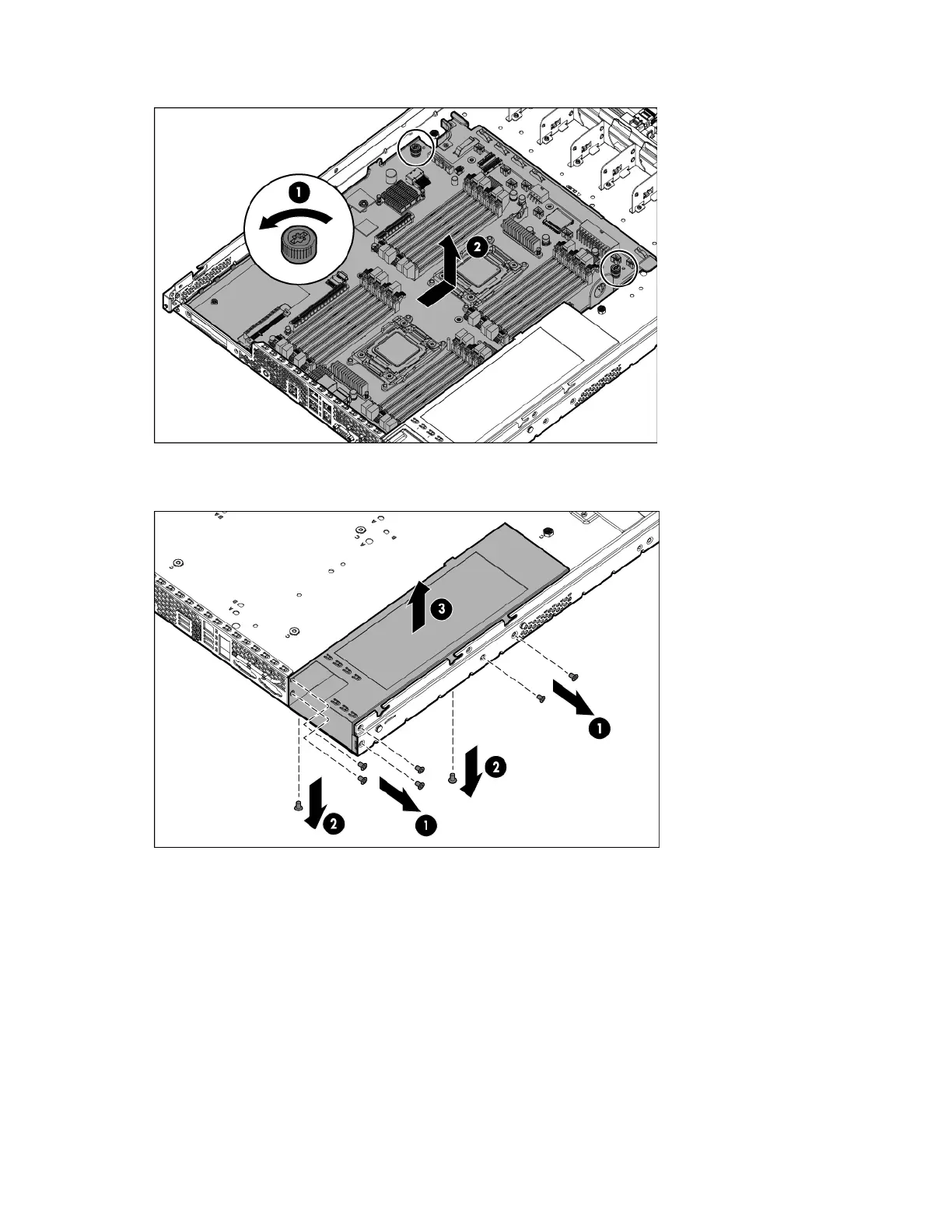

Lift the tray out of the chassis.
9. Remove the power supply module ("Power supply module" on page 30).
10. Remove the failed power supply backplane.
To replace the component, reverse the removal procedure.
Common slot power supply backplane
To remove the component:
1. Power down the server (on page 27).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
