Component identification 75
Item Description
12
SATA connector 1
13
Internal USB connector
14
Fan connector 8
15
Front panel connectors
16
Fan connector 7
17
Fan connector 6
18
Fan connector 5
19
20
Fan connector 4
21
SD card slot
22
Fan connector 3
23
24-pin power connector
24
Fan connector 2
25
System battery
26
FlexibleLOM standby power connector
27
4-pin power connector
28
Redundant power supply connector
29
Discovery service connector
30
Processor socket 2
31
Processor 2 DIMM slots

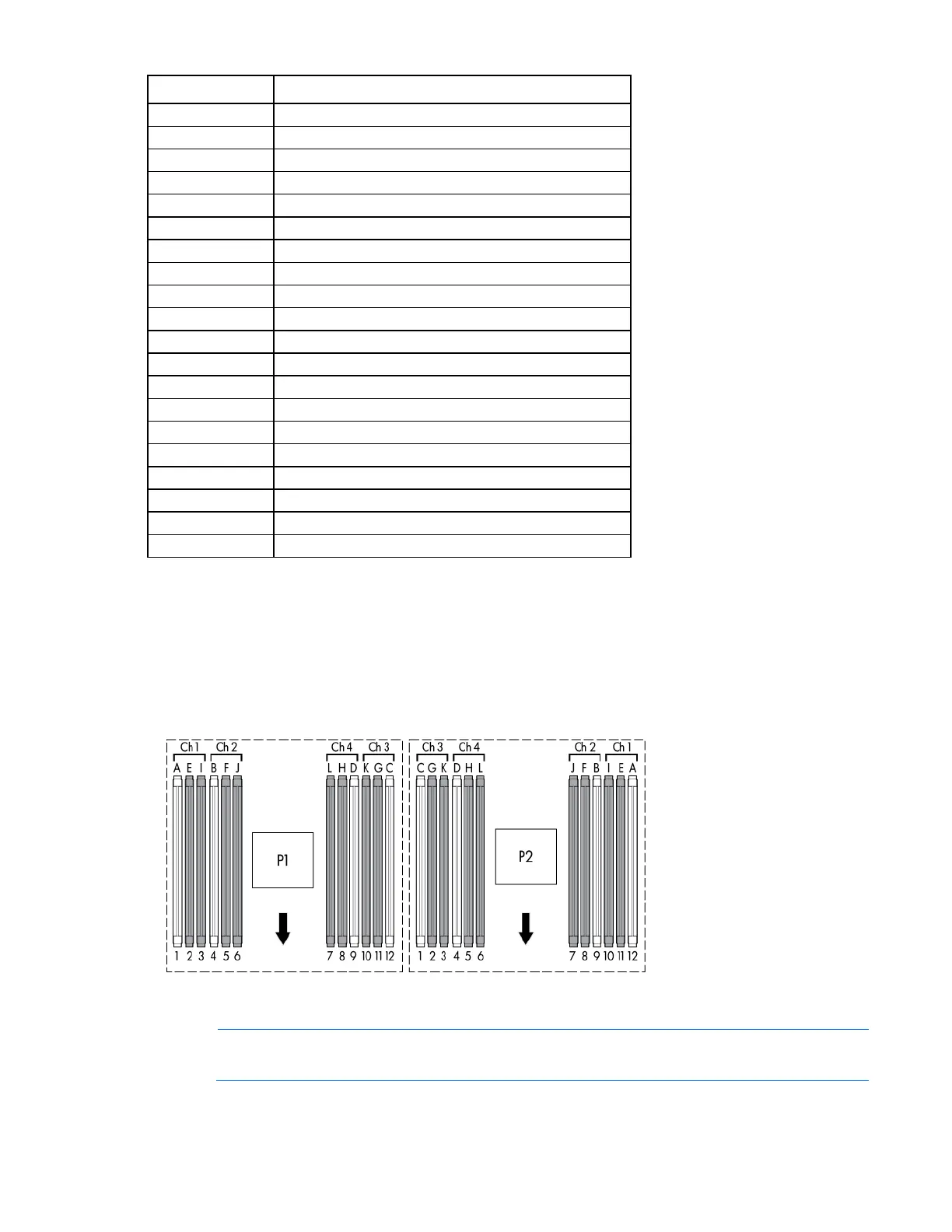

DIMM slots
DIMM slots are numbered sequentially (1 through 12) for each processor. The supported AMP modes use the
letter assignments for population guidelines.
NOTE: For proper orientation, the arrows indicate the front of the server.
