Removal and replacement procedures 49
o

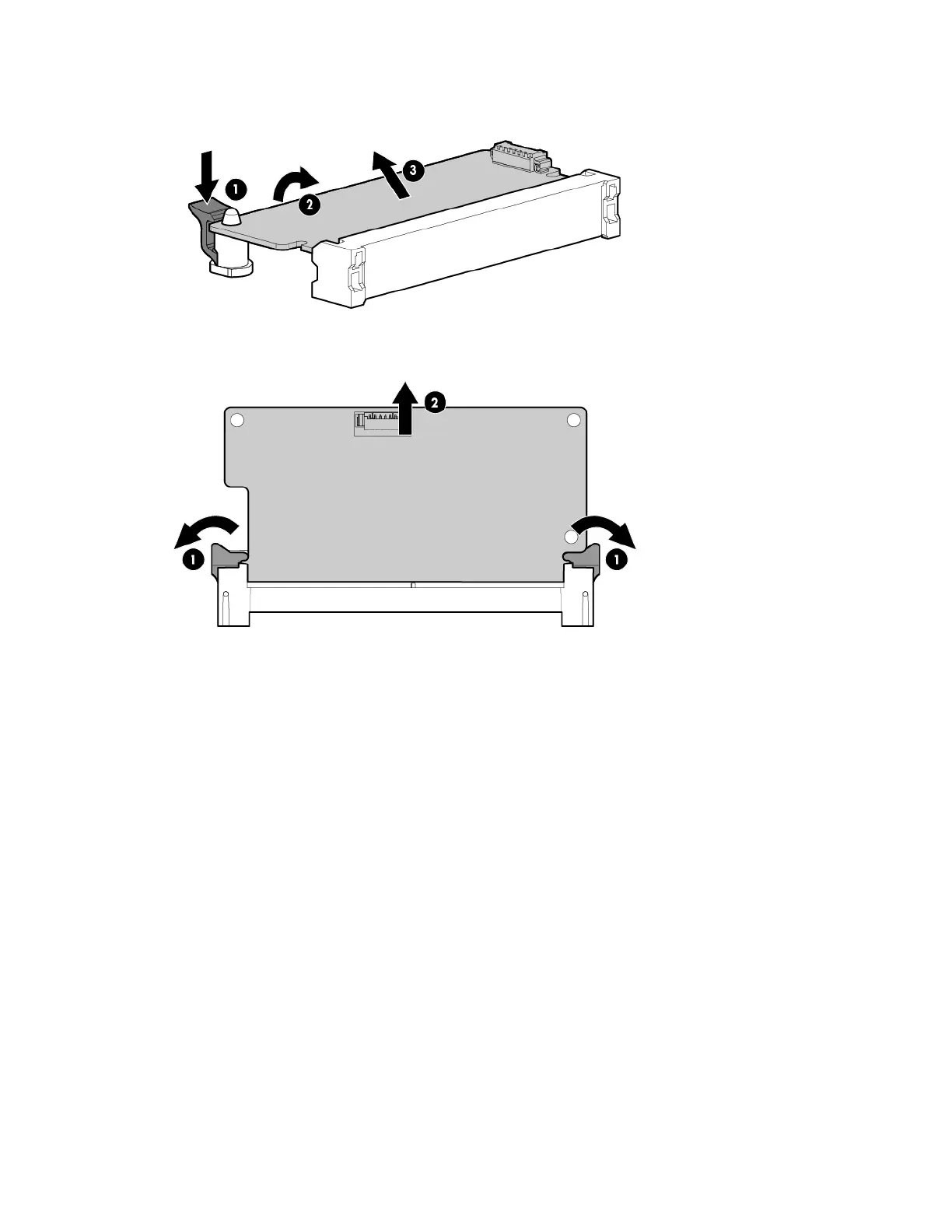

Cache module on the system board
o Cache module on a storage controller
To replace the component, reverse the removal procedure.
Capacitor pack
To remove the component:
1. Power down the server (on page 27).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 27).
o Remove the server from the rack (on page 28).
4. Remove the access panel ("Access panel" on page 29).
5. Remove the processor air baffle ("Processor air baffle" on page 30).
6. If the cache module is installed on the system board, remove the PCI riser cage ("PCI riser cage" on
page 45).
