Cabling 82

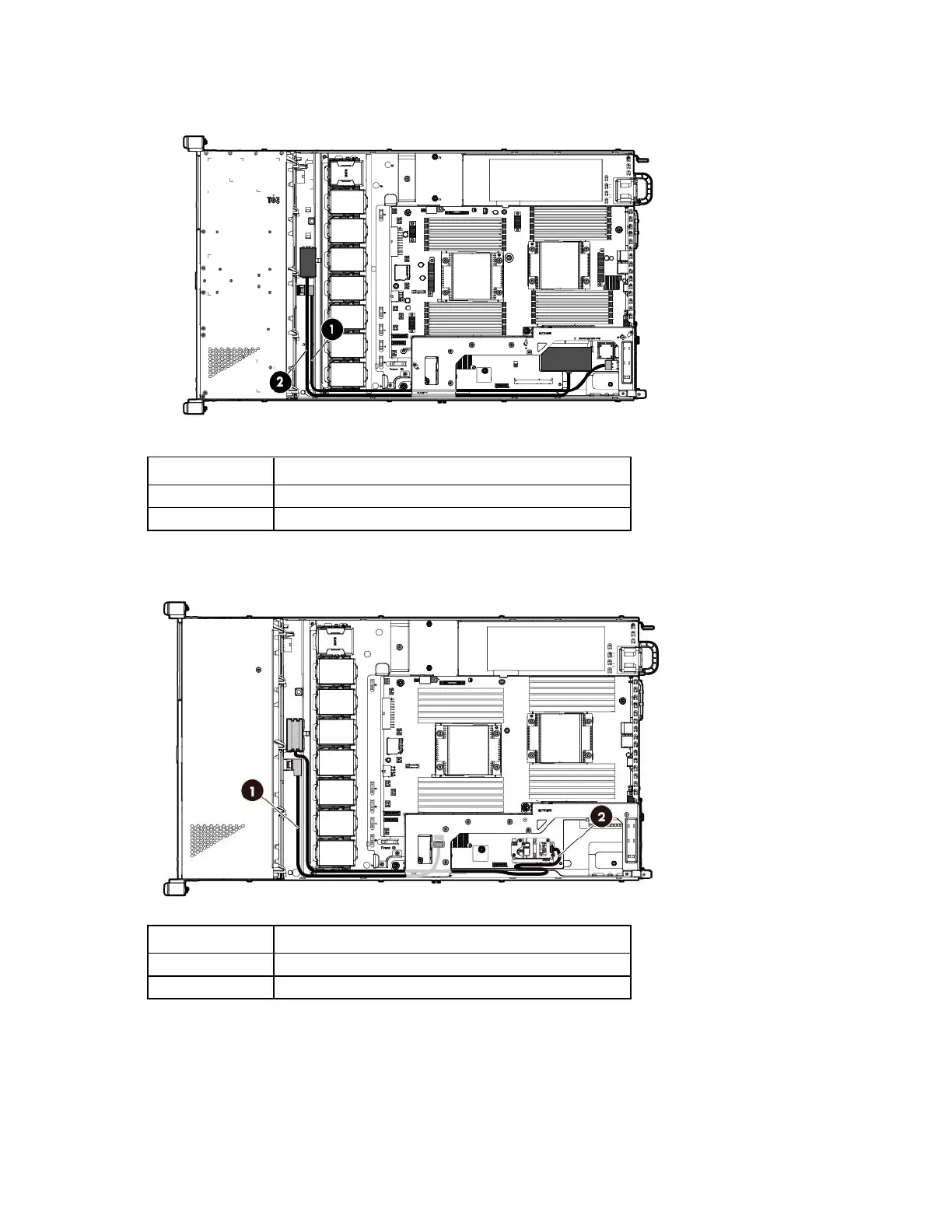

• LFF drive cage connected to Smart Array controller card in a full–height slot
Cable number Description
1
Mini-SAS cable (700 mm)
2
FBWC capacitor pack cable
• LFF drive cage connected to an embedded Smart Array controller
Cable number Description
1
Mini-SAS cable (390 mm)
2
FBWC capacitor pack cable
