HP ProLiant DL320e Gen8 v2 User Manual

Component identification 10

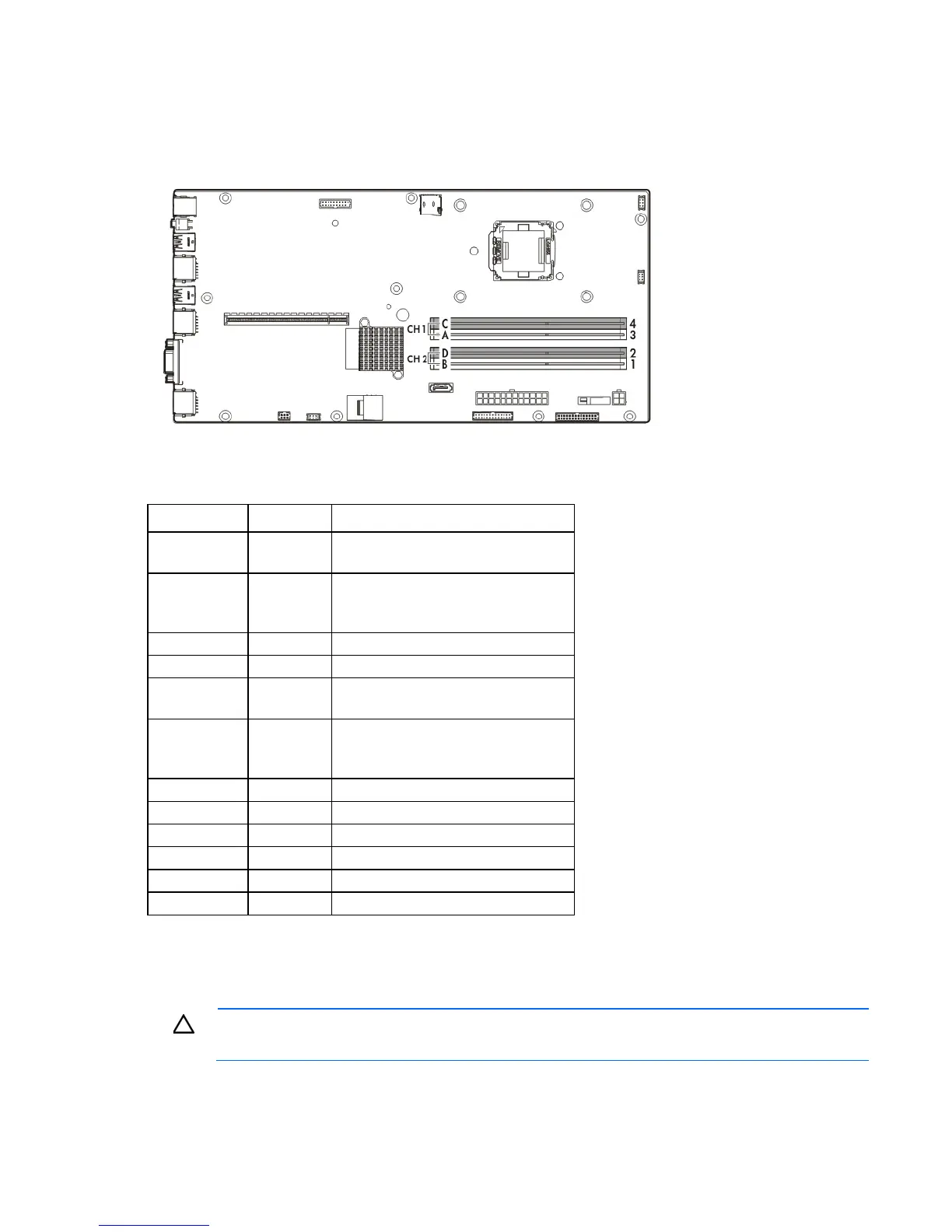

DIMM slot locations
DIMM slots are numbered sequentially (1 through 4) for the processor. The supported AMP modes use the
letter assignments for population guidelines.
System maintenance switch
Position Default Function
S1
Off Off = iLO 4 security is enabled.
On = iLO 4 security is disabled.
S2
Off Off = System configuration can be
changed.
On = System configuration is locked.
S3
Off Reserved
S4
Off Reserved
S5
Off Off = Power-on password is enabled.
On = Power-on password is disabled.
S6
Off Off = No function
On = ROM reads system configuration
as invalid.
S7
— Reserved
S8
— Reserved
S9
— Reserved
S10
— Reserved
S11
— Reserved
S12
— Reserved
To access the redundant ROM, set S1, S5, and S6 to on.
When the system maintenance switch position 6 is set to the On position, the system is prepared to erase all
system configuration settings from both CMOS and NVRAM.
CAUTION: Clearing CMOS and/or NVRAM deletes configuration information. Be sure to
properly configure the server or data loss could occur.

HP ProLiant DL320e Gen8 v2 Specifications

General

Processor	Intel Xeon E3-1200 v3 series
Processor Sockets	1
Memory	Up to 32GB
Memory Slots	4
Form Factor	1U Rack
Memory Type	DDR3 UDIMM
Storage	Up to 4 LFF or 8 SFF drives
RAID Support	HP Dynamic Smart Array B120i
Expansion Slots	1 PCIe 3.0
Management	HP iLO
