HP ProLiant DL320e Gen8 v2 User Manual

Setup 30
Setting up the HP PS1810-24G Switch (optional)
If you intend to use the server with the companion HP PS1810-24G Switch, follow the procedures in this
section.
For more information on switch-related settings and operational procedures, see the documentation for your
switch model on the HP website (http://www.hp.com/networking/support).
Mounting the switch with the server
Mount the switch in a rack, on a wall, or on top of or under a horizontal surface. For detailed instructions, see
the HP PS1810-24G Switch Quick Setup Guide.
Connecting the server to the switch
You can connect the server to the switch through the following methods:
• A simple Ethernet connection with no iLO functionality
• An Ethernet connection with iLO functionality, using the dedicated iLO 4 connector
• An Ethernet connection with iLO functionality, using the shared iLO 4 connector
To establish a simple Ethernet connection:
1. Connect an Ethernet cable to the switch, and then connect the cable to a network jack.
2. Connect an Ethernet cable to the server NIC connector 1 or 2.
3. Connect the cable to any switch network port.

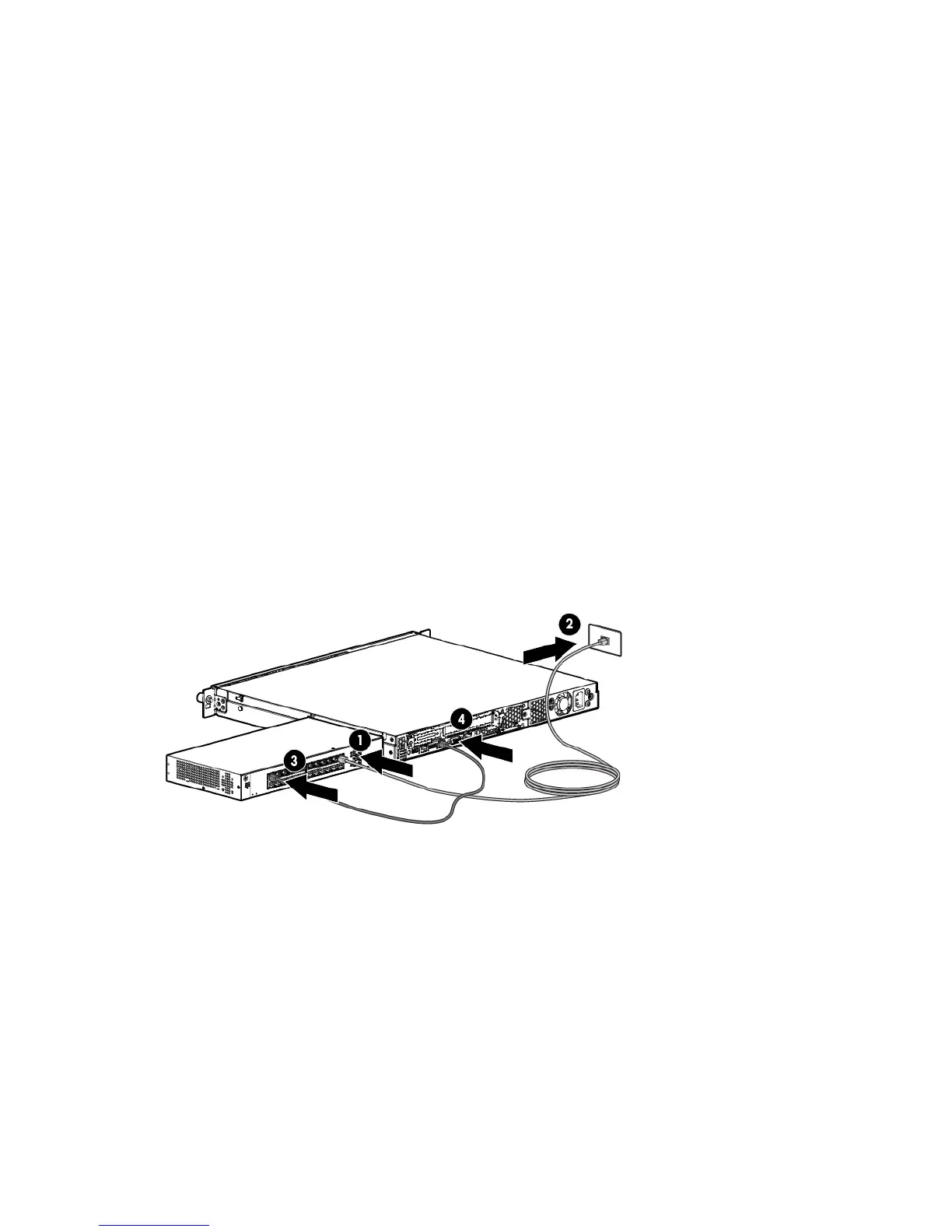

To establish an Ethernet connection with iLO functionality by using the dedicated iLO connector:
1. Connect an Ethernet cable to the switch, and then connect the cable to a network jack.

HP ProLiant DL320e Gen8 v2 Specifications

General

Processor	Intel Xeon E3-1200 v3 series
Processor Sockets	1
Memory	Up to 32GB
Memory Slots	4
Form Factor	1U Rack
Memory Type	DDR3 UDIMM
Storage	Up to 4 LFF or 8 SFF drives
RAID Support	HP Dynamic Smart Array B120i
Expansion Slots	1 PCIe 3.0
Management	HP iLO
