HP ProLiant DL320e Gen8 v2 User Manual

Component identification 7

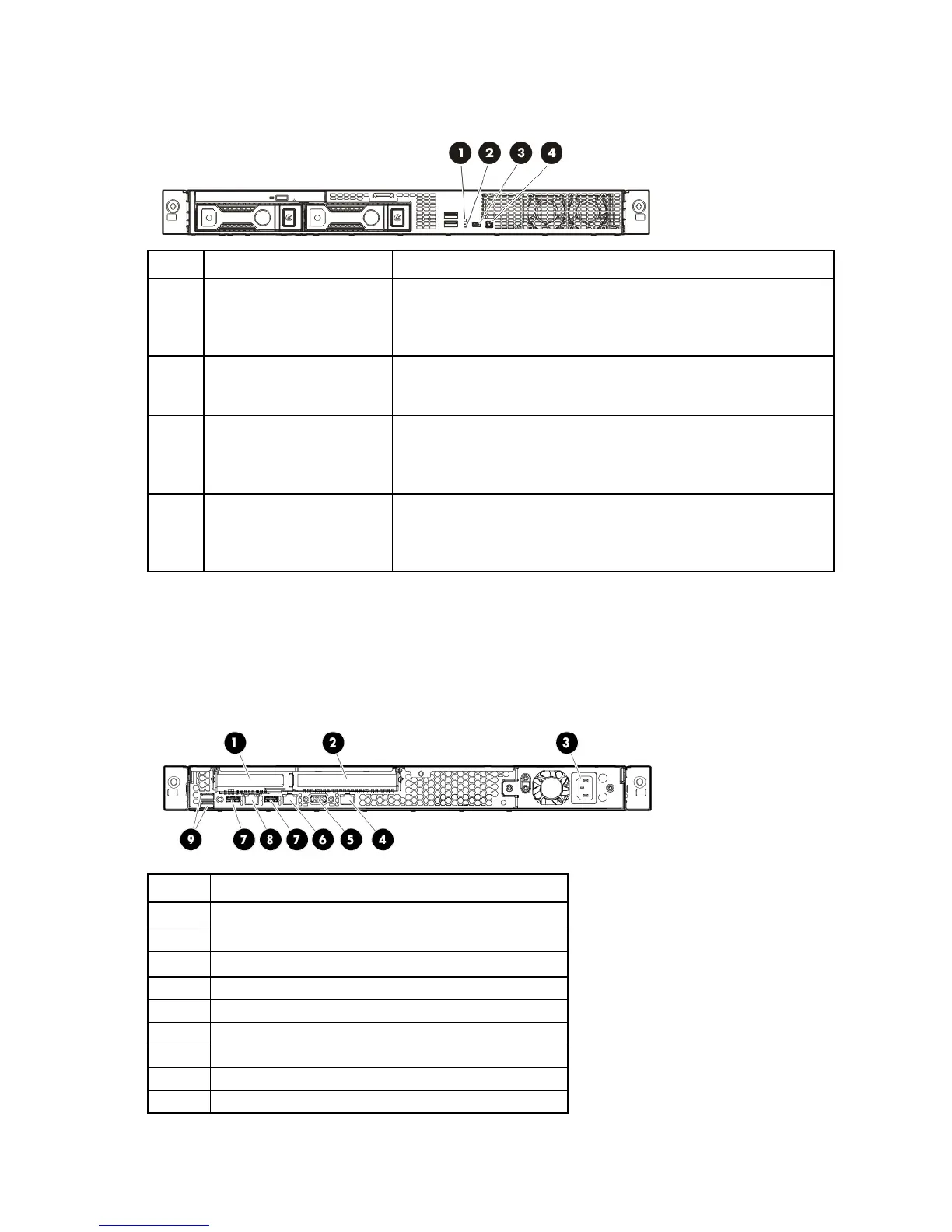

Front panel LEDs and buttons
Item Description Status
1
Health LED Solid green = Normal
Flashing amber = System degraded
Flashing red (1 Hz/cycle per sec) = System critical
Fast-flashing red (4 Hz/cycles per sec) = Power fault*
2
NIC status LED Solid green = Link to network
Flashing green (1 Hz/cycle per sec) = Network active
Off = No network activity
3
UID button/LED Solid blue = Activated
Flashing blue (1 Hz/cycle per sec) = Remote management or firmware
upgrade in progress
Off = Deactivated
4
Power On/Standby button
and system power LED
Solid green = System on
Flashing green (1 Hz/cycle per sec) = Performing power on sequence
Solid amber = System in standby
Off = No power present**
* To identify components in a degraded or critical state, see the iLO/BIOS logs and the server troubleshooting guide.
** Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has
occurred, or the power button cable is disconnected.
Rear panel components
Item Description
1
Slot 2 PCIe3 x8 (4, 1)
2
Slot 1 PCIe3 x16 (8, 4, 1)
3
Integrated power supply
4
NIC 1/shared iLO 4 connector
5
Video connector
6
NIC connector 2
7
USB 3.0 connectors
8
Dedicated iLO 4 connector
9
USB 2.0 connectors

HP ProLiant DL320e Gen8 v2 Specifications

General

Processor	Intel Xeon E3-1200 v3 series
Processor Sockets	1
Memory	Up to 32GB
Memory Slots	4
Form Factor	1U Rack
Memory Type	DDR3 UDIMM
Storage	Up to 4 LFF or 8 SFF drives
RAID Support	HP Dynamic Smart Array B120i
Expansion Slots	1 PCIe 3.0
Management	HP iLO
