HP ProLiant DL320e Gen8 v2 User Manual

Component identification 8

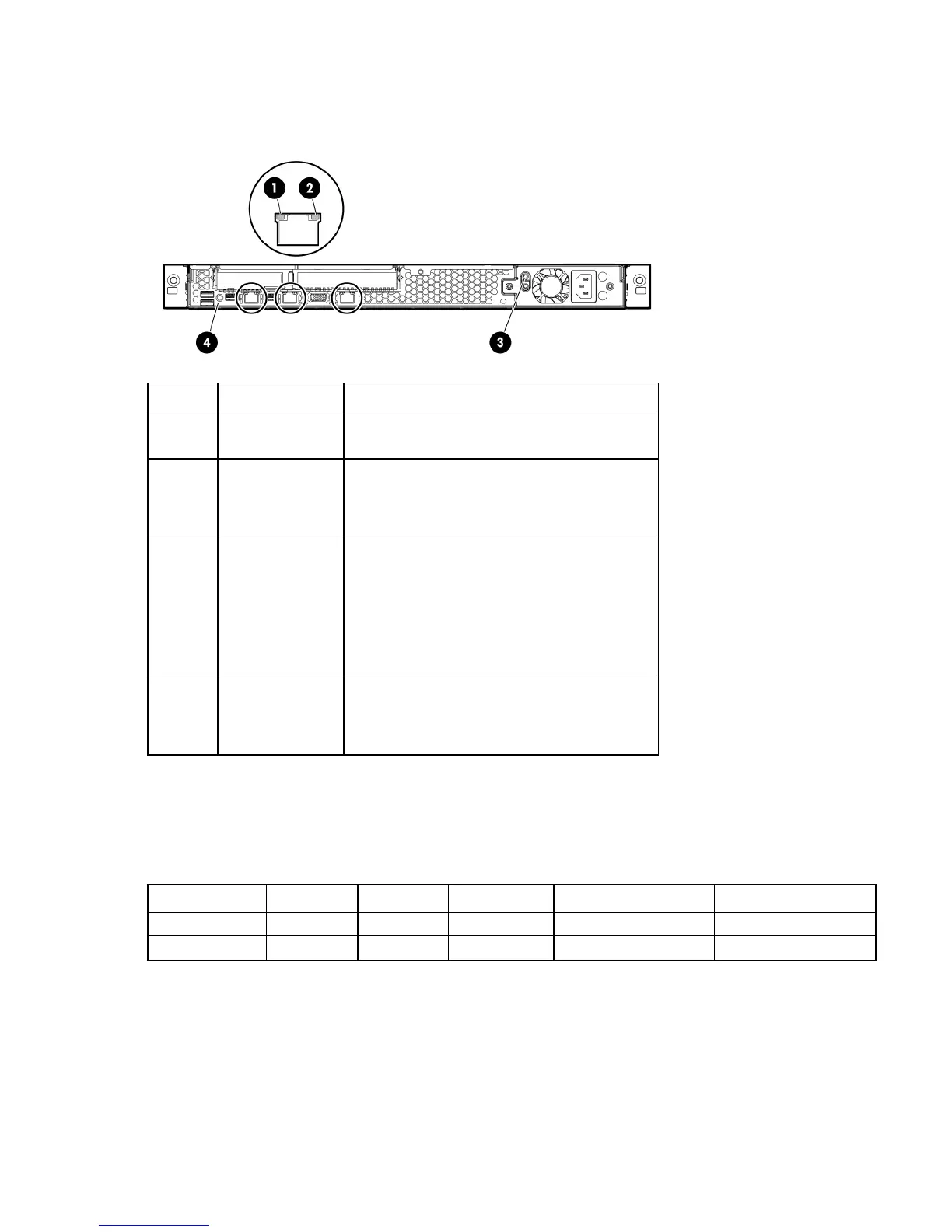

Rear panel LEDs and buttons
Item Description Status
1
NIC link LED Solid green = Link exists
Off = No link exists
2
NIC status LED Solid green = Link to network
Flashing green (1 Hz/cycle per sec) = Network
active
Off = No network activity
3
Power supply LED Solid green = Normal
Off = One or more of the following conditions
exists:
•
Power is unavailable
•
Power supply failed
•
Power supply is in standby mode
•
Power supply error
4
UID button/LED Solid blue = Activated
Flashing blue (1 Hz/cycle per sec) = Remote
management or firmware upgrade in progress
Off = Deactivated
PCIe riser board slot definitions
The riser board slots transfer rate is the same for all supported processor models. Both slots will run in PCIe3
(8 GT/s) rate.
Slot number Type Length Height Connector link width Negotiable link width
1
PCIe3 Half Full x16 x8
2
PCIe3 Half Half x8 x4

HP ProLiant DL320e Gen8 v2 Specifications

General

Processor	Intel Xeon E3-1200 v3 series
Processor Sockets	1
Memory	Up to 32GB
Memory Slots	4
Form Factor	1U Rack
Memory Type	DDR3 UDIMM
Storage	Up to 4 LFF or 8 SFF drives
RAID Support	HP Dynamic Smart Array B120i
Expansion Slots	1 PCIe 3.0
Management	HP iLO
