HP ProLiant DL320e Gen8 v2 User Manual

Component identification 9

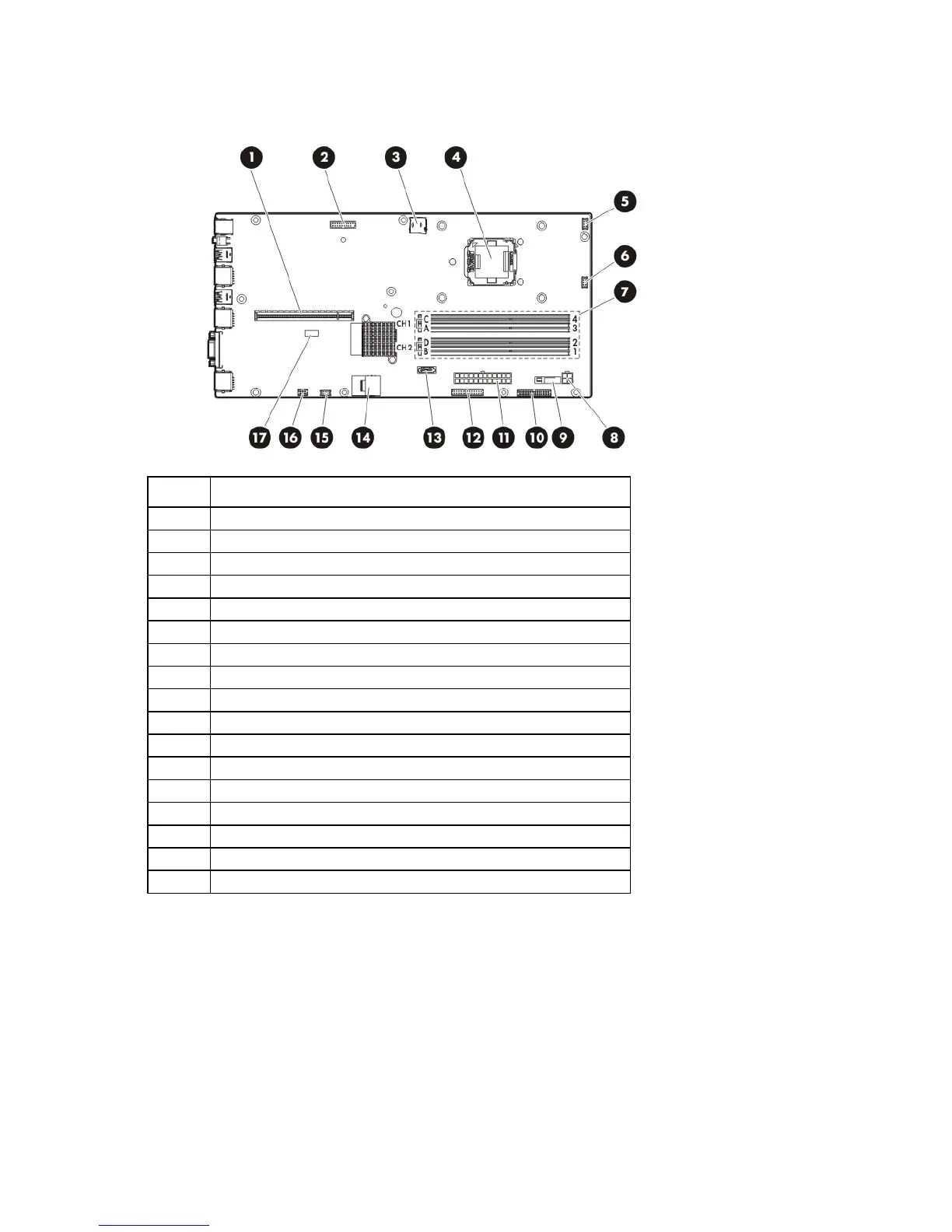

System board components
Item Description
1
PCI riser connector*
2
TPM connector
3
microSD card slot
4
Processor socket
5
Fan connector 2
6
Fan connector 1
7
DIMM slots
8
4-pin power supply connector
9
System battery
10
Front I/O module connector
11
24-pin power supply connector
12
26-pin PDB connector
13
SATA connector
14
Mini-SAS connector
15
Fan connector 3
16
Internal USB 2.0 connector
17
System maintenance switch
* For more information on the riser board slots supported by the onboard PCI riser connector, see "PCIe riser board slot
definitions (on page 8)."

HP ProLiant DL320e Gen8 v2 Specifications

General

Processor	Intel Xeon E3-1200 v3 series
Processor Sockets	1
Memory	Up to 32GB
Memory Slots	4
Form Factor	1U Rack
Memory Type	DDR3 UDIMM
Storage	Up to 4 LFF or 8 SFF drives
RAID Support	HP Dynamic Smart Array B120i
Expansion Slots	1 PCIe 3.0
Management	HP iLO
