Component identification 14

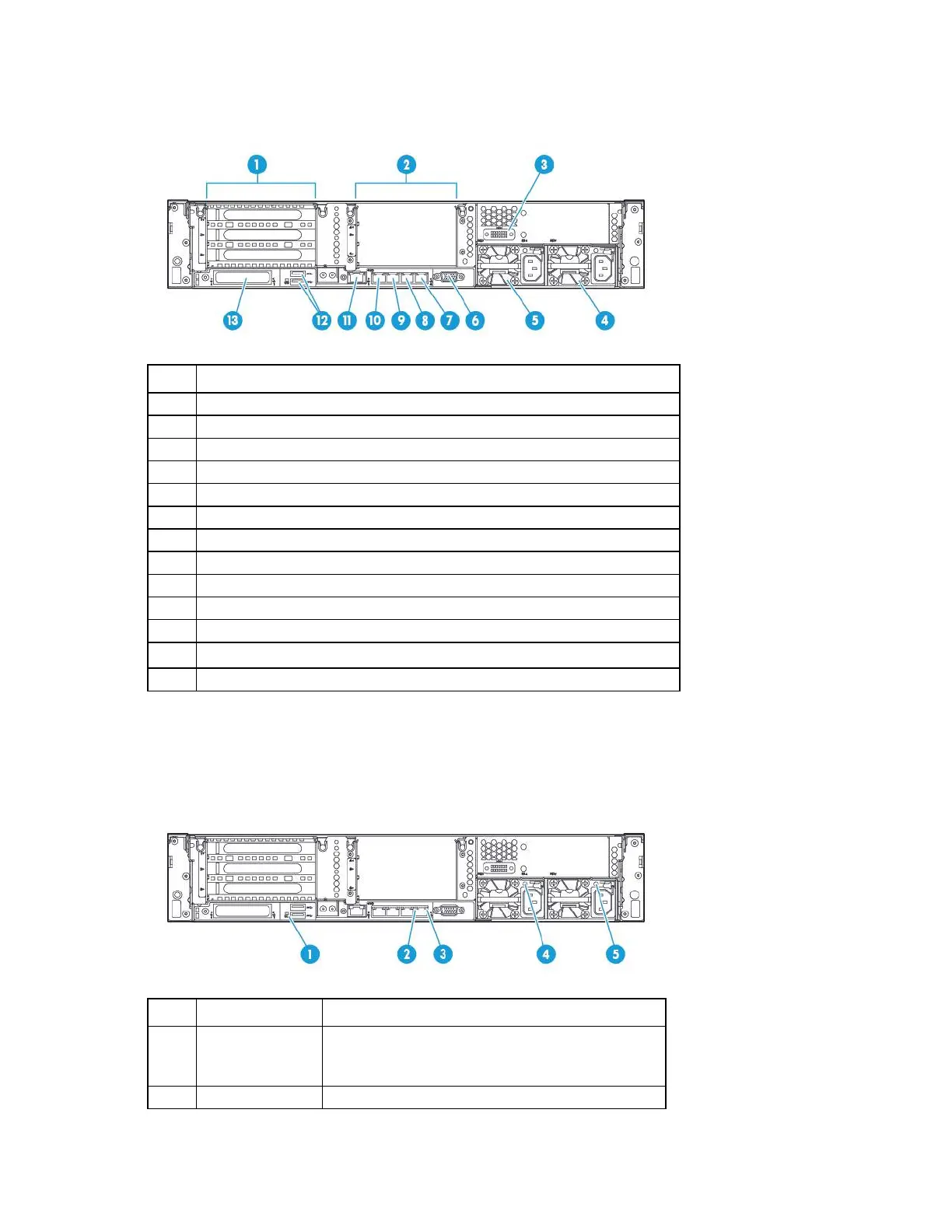

Rear panel components
Item Description
1
PCIe slots 1–3 (top to bottom)
2
Optional PCIe slots 4–6 (top to bottom)*
3
Optional serial port
4
Power supply 1 (PS1)
5
Power supply 2 (PS2)
6
Video connector
7
1Gb RJ-45 port 4
8
1Gb RJ-45 port 3
9
1Gb RJ-45 port 2
1Gb RJ-45 port 1
11
iLO connector
12
USB 3.0 connectors
13
FlexibleLOM option
*Requires second processor
Rear panel LEDs
Item Description Status
1
UID LED Off = Deactivated
Solid blue = Activated
Flashing blue = System being managed remotely
2
NIC link LED Off = No network link
