HP ProLiant DL380 Gen9 Server User Manual

Hardware options installation 50
• Observe the general DIMM slot population guidelines (on page 49).
• Each channel must have a valid online spare configuration.
• Each channel can have a different valid online spare configuration.
• Each populated channel must have a spare rank. A single dual-rank DIMM is not a valid configuration.
Population order
For memory configurations with a single processor or multiple processors, DIMMs must be populated
sequentially in alphabetical order (A through L).
After installing the DIMMs, use the BIOS/Platform Configuration (RBSU) in the UEFI System Utilities to
configure supported AMP modes.
Installing a DIMM
The server supports up to 24 DIMMs. To install a DIMM:
1. Power down the server (on page 24).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 24).
o Remove the server from the rack (on page 25).
4. Remove the access panel (on page 25).
5. Remove the air baffle (on page 31).

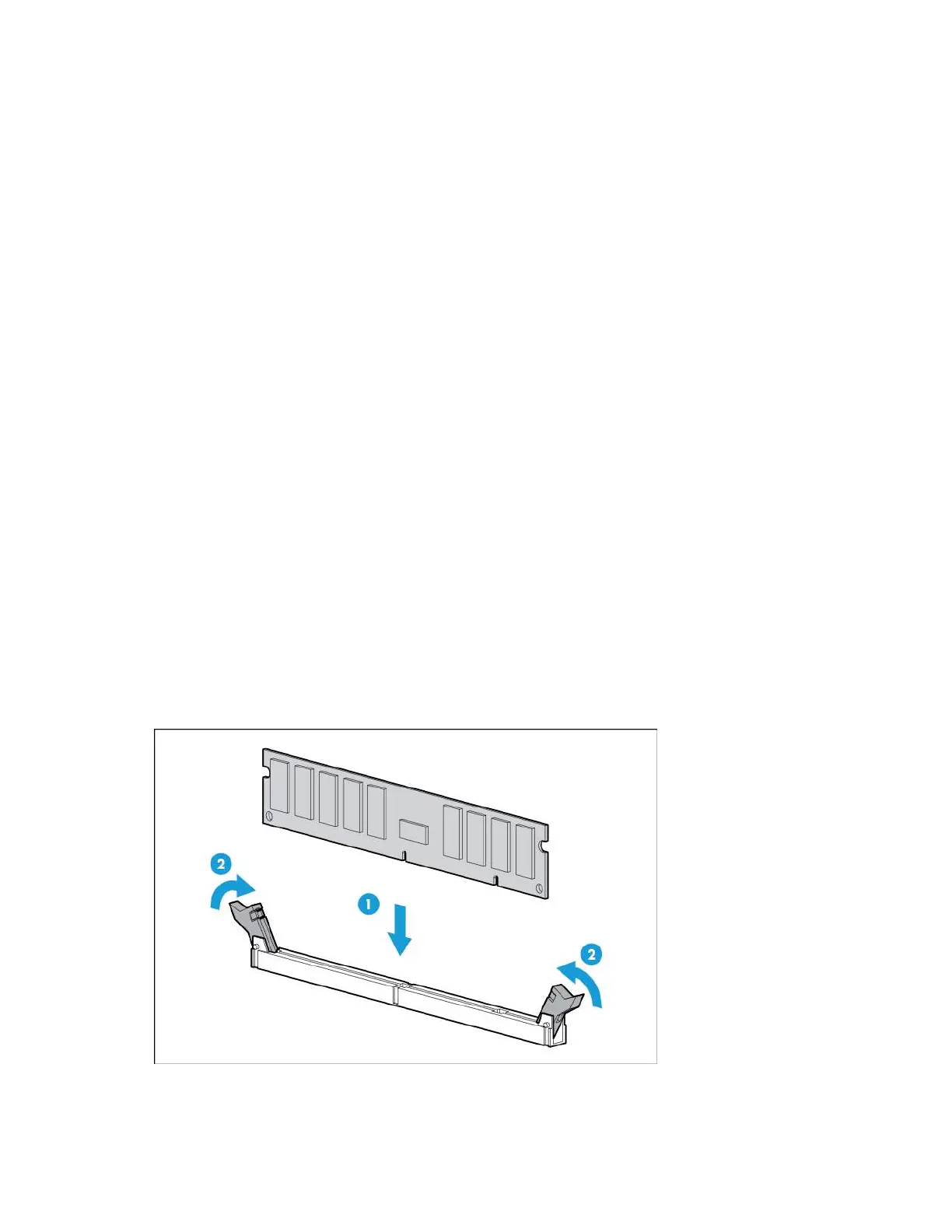

6. Open the DIMM slot latches.
7. Install the DIMM.
8. Install the air baffle.
9. Install the access panel (on page 26).

HP ProLiant DL380 Gen9 Server Specifications

General

Max Processors	2
Memory Slots	24 DIMM slots
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Expansion Slots	Up to 6 PCIe 3.0 slots
Form Factor	2U Rack
Chipset	Intel C610 Series Chipset
Processor	Intel Xeon E5-2600 v3/v4
Memory	DDR4 SmartMemory
Storage	SFF, LFF SAS/SATA/SSD drives
Maximum Internal Storage	Up to 192TB, depending on configuration
Storage Controller	Smart Array P440ar/2GB FBWC
Network	4 x 1GbE
Network Controller	HPE Ethernet 1Gb 331i Adapter
Power Supply	500W
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	HP iLO 4
