Cabling 104
o Connect to an HPE 12G SAS Expander Card

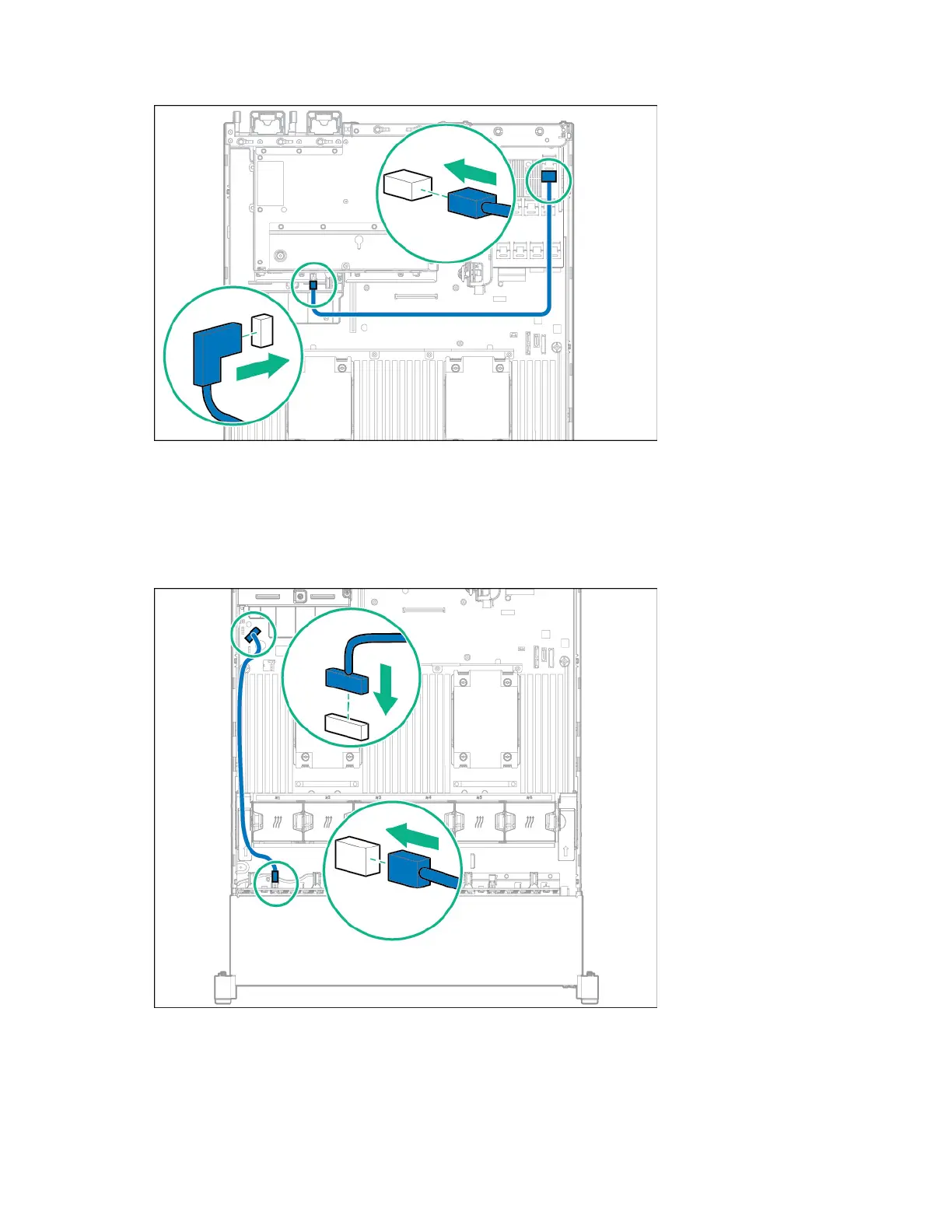

Eight-bay SFF front drive cage cabling
Bay 1 installation
1. Connect the power cable using one of the following connections:
o Single cable connection
