Removal and replacement procedures 36
8.

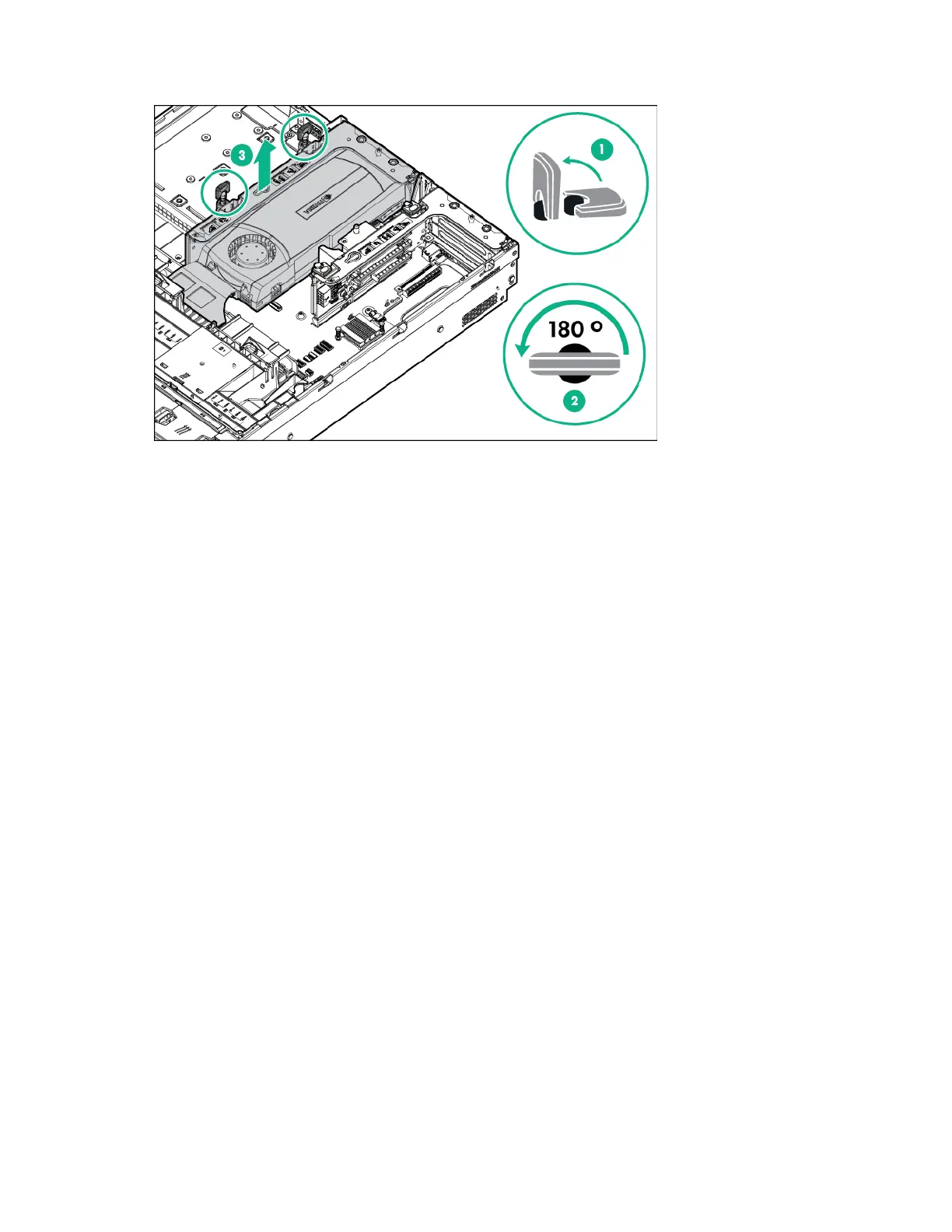

Remove the secondary PCIe riser cage.
To replace the component, reverse the removal procedure.
PCIe riser board
To remove the component:
1. Power down the server (on page 27).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 27).
o Remove the server from the rack (on page 28).
4. Remove the access panel ("Access panel" on page 32).
5. If any full-length expansion boards are installed, release the full-length expansion board retainer (on
page 30).
6. Remove the PCIe riser cage:
o Primary PCIe riser cage (on page 34)
o Secondary PCIe riser cage (on page 35)
7. Remove any expansion boards (on page 55) from the PCIe riser cage.
