Removal and replacement procedures 30
2.

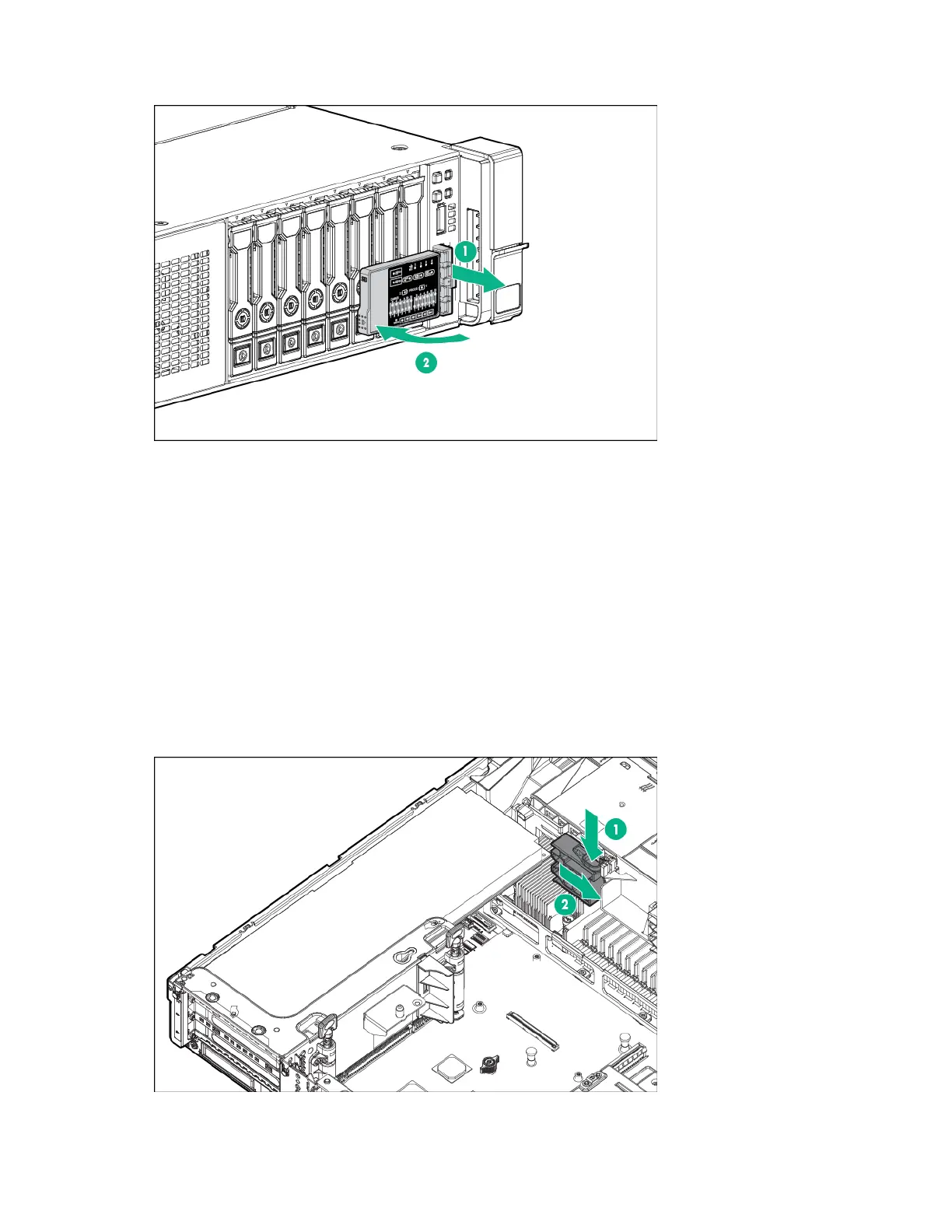

After the display fully ejects, rotate the display to view the LEDs.
Release the full-length expansion board retainer
To remove the component:
1. Power down the server (on page 27).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 27).
o Remove the server from the rack (on page 28).
4. Remove the access panel ("Access panel" on page 32).
5. Release the full-length expansion board retainer.
To replace the component, reverse the removal procedure.
