HP ProLiant DL380 Gen9 - System Board Components

Component identification 90

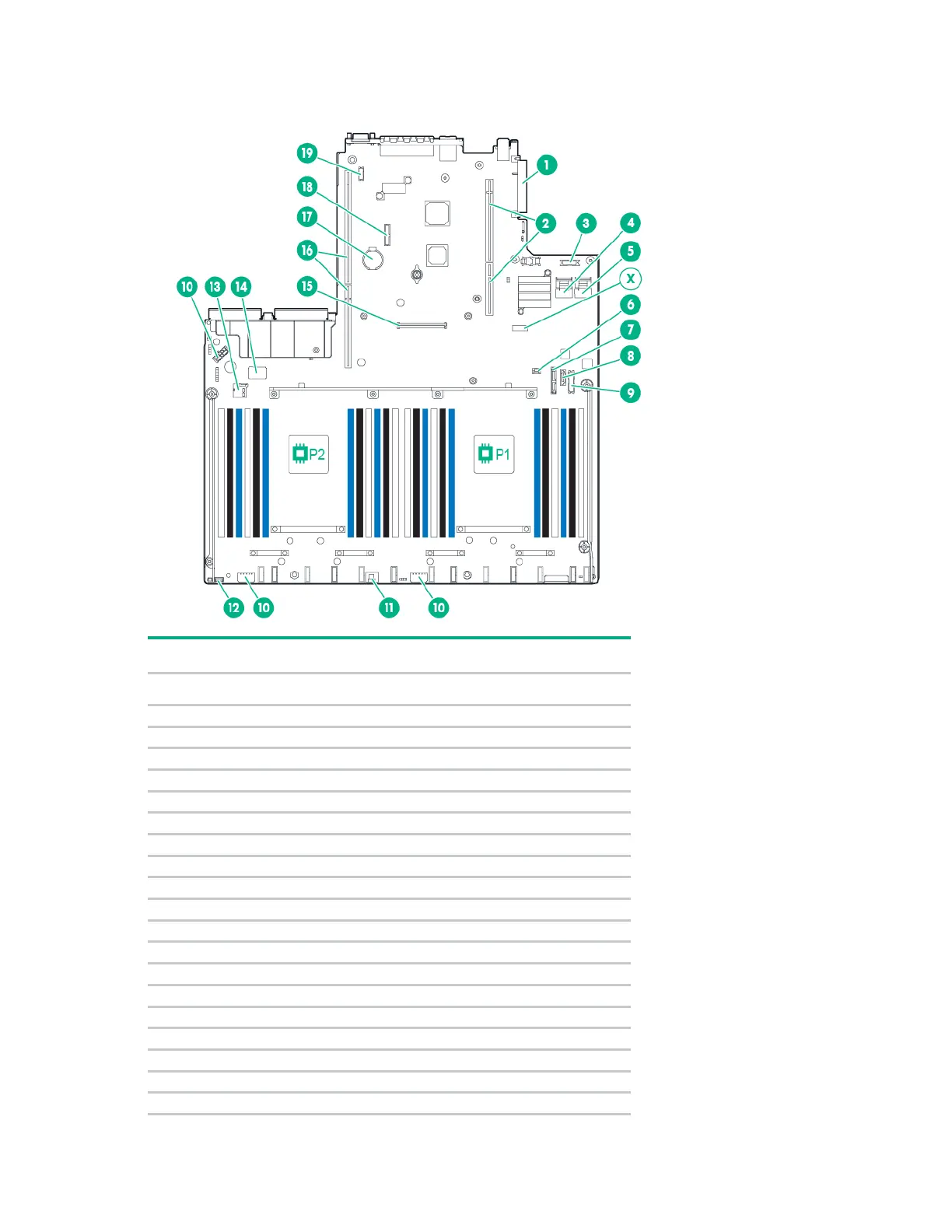

System board components
Item Description
1
FlexibleLOM connector
2
Primary (processor 1) PCI riser connector
3
Optical front VGA/USB 2.0 connector
4
x4 SATA port 1
5
x4 SATA port 2
6
Backplane presence detect connector
7
Optical/SATA port 5
8
SATA port 4
9
Front power/USB 3.0 connector
10
Drive backplane power connector
11
HPE Smart Storage Battery connector
12
Optional Location Discovery Services connector
13
Micro SD card slot
14
Dual internal USB 3.0 connector
15
Smart Array/HBA connector
16
Secondary processor (processor 2) PCI riser connector
17
System battery
18
TPM connector
19
Optional serial port connector
X
System maintenance switch
