Removal and replacement procedures 59
4.
Remove the access panel ("Access panel" on page 32).
5. Remove the air baffle ("Air baffle" on page 32).

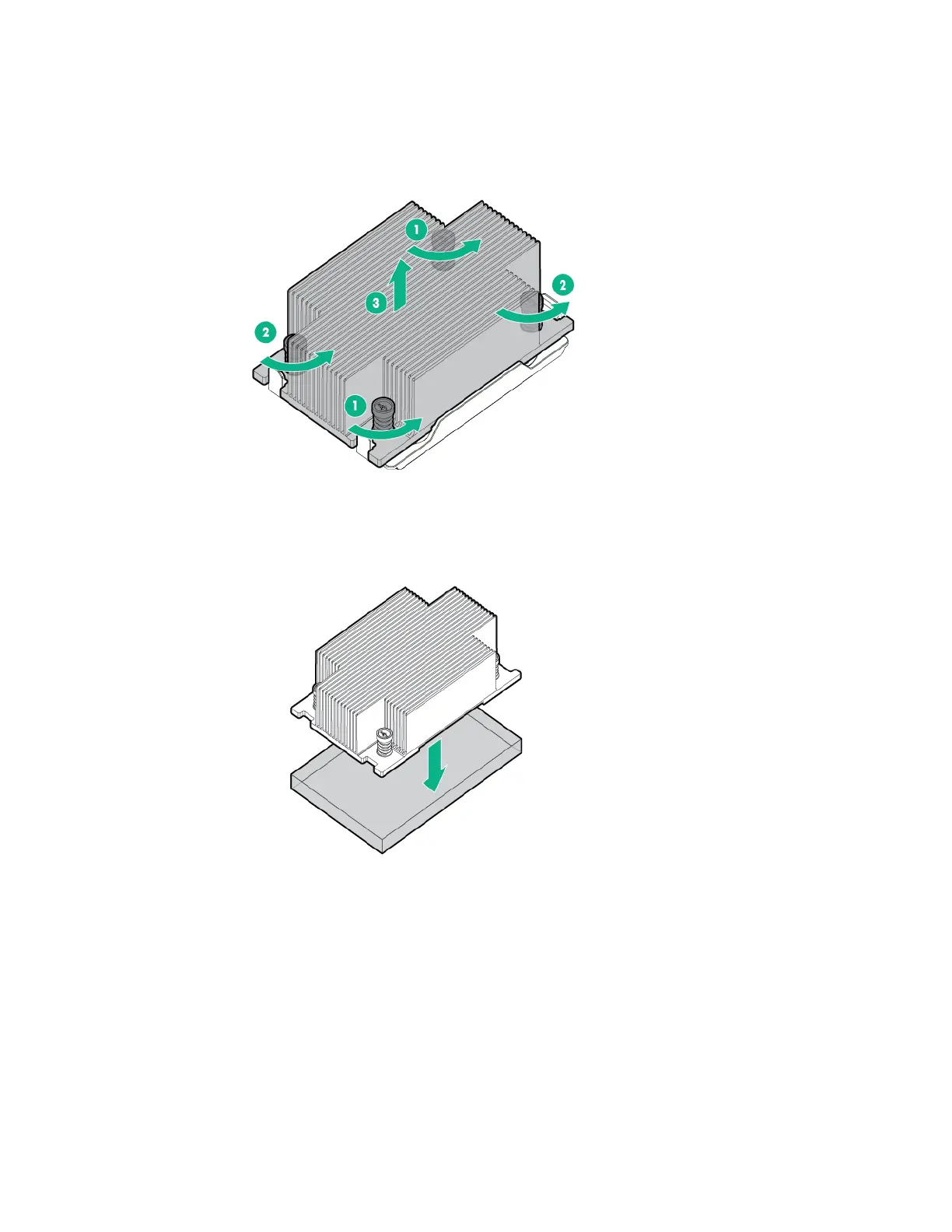

6. Remove the heatsink.
To replace the component:
1. Remove the thermal interface protective cover from the heatsink.
