HP ProLiant ML110 Gen9 - System Board and Internal Components

Component identification 11

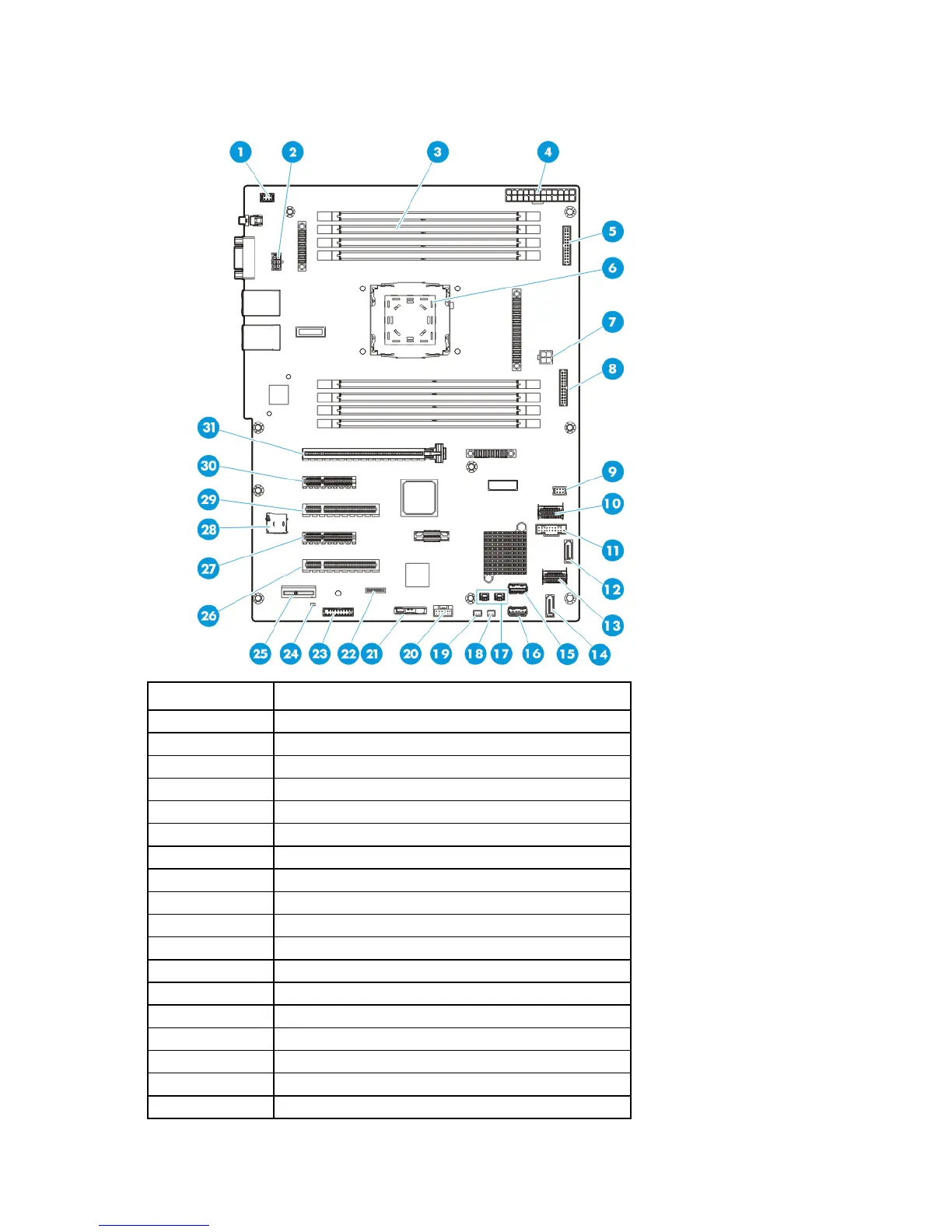

System board components
Item Description
1
Fan connector 3
2
Fan connector 2
3
DIMM slots
4
24-pin power supply connector
5
RPSU connector
6
Processor
7
4-pin power supply connector
8
Front I/O connector
9
Fan connector 1
10
Mini-SAS connector 1
11
Front USB 3.0 connector
12
SATA connector 2
13
Mini-SAS connector 2
14
SATA connector 1
15
Internal USB 3.0 connector
16
Internal USB 2.0 connector
17
Storage backup power connector
18
Hard drive power good cable connector 2
